E4 Plastic Volumetric Water Meter
Multi jet water meters offer a reliable and cost-effective solution for measuring water consumption in various settings, providing accurate data for billing, monitoring, and managing water resources.
| Pulse | Optional |
|---|---|
| Material | Plastic |
| Size | DN15-DN40 |
| Unit Of Measure | Cubic feet, Cubic meter, Gallons, Litre |
Product Details

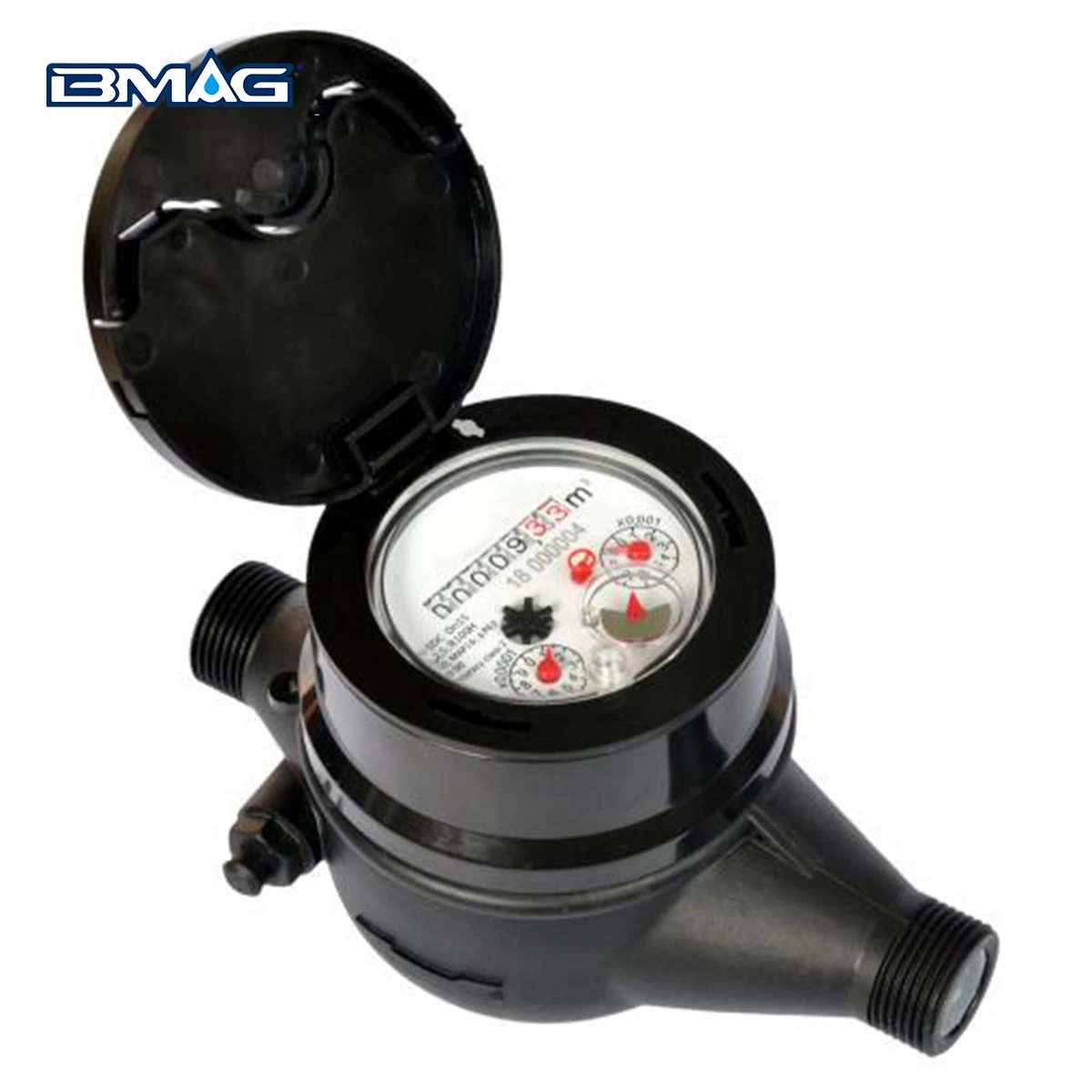

BMAG PD-SDC E4 Plastic volumetric Water Meter
Volumetric Water Meter Feature
- All the components ate produced with high resistance and quality materials, technical plastics and stainless steel parts.
- The ROTARY indicator register for the most comfortable reading position is of 8 Rollers and 1 Pointer, with pulse output pre-equipped at 10 liters/pulse.
- Suitable for any position installation.
- The extra inlet filter at the inlet of the meter body permits cleaning it without breaking the metrological seal.
- Non Return Valve to avoid the reserve flow Rate AS OPTION.
- Cold water meter under current standard for lower than 30℃(T30), but PD-SDC- E4 can be used safely in water temperature up to 50℃(T50).
Volumetric Water Meter Working Conditions
- Temperature: Available for cold water 0-50 ℃
- Pressure: ≤1.6MPa ( 16bars)
Dial Plate Design (R315/R160)
Standards Compliance
- ISO4064:2014/OIML R49
- Directive 2014/32/EU on measuring instruments
- European Standard EN14154
Dimension

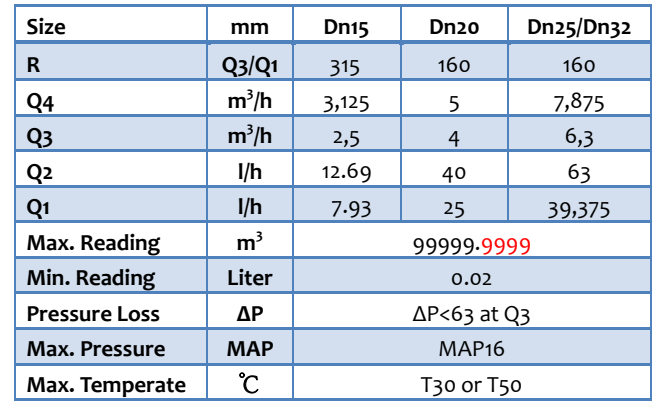

Technical Data
Accuracy
From Q1 inclusive up to but excluding Q2 is ±5%;
From Q2 inclusive up to and including Q4 is ±2% for T30 and ±3% for T50
