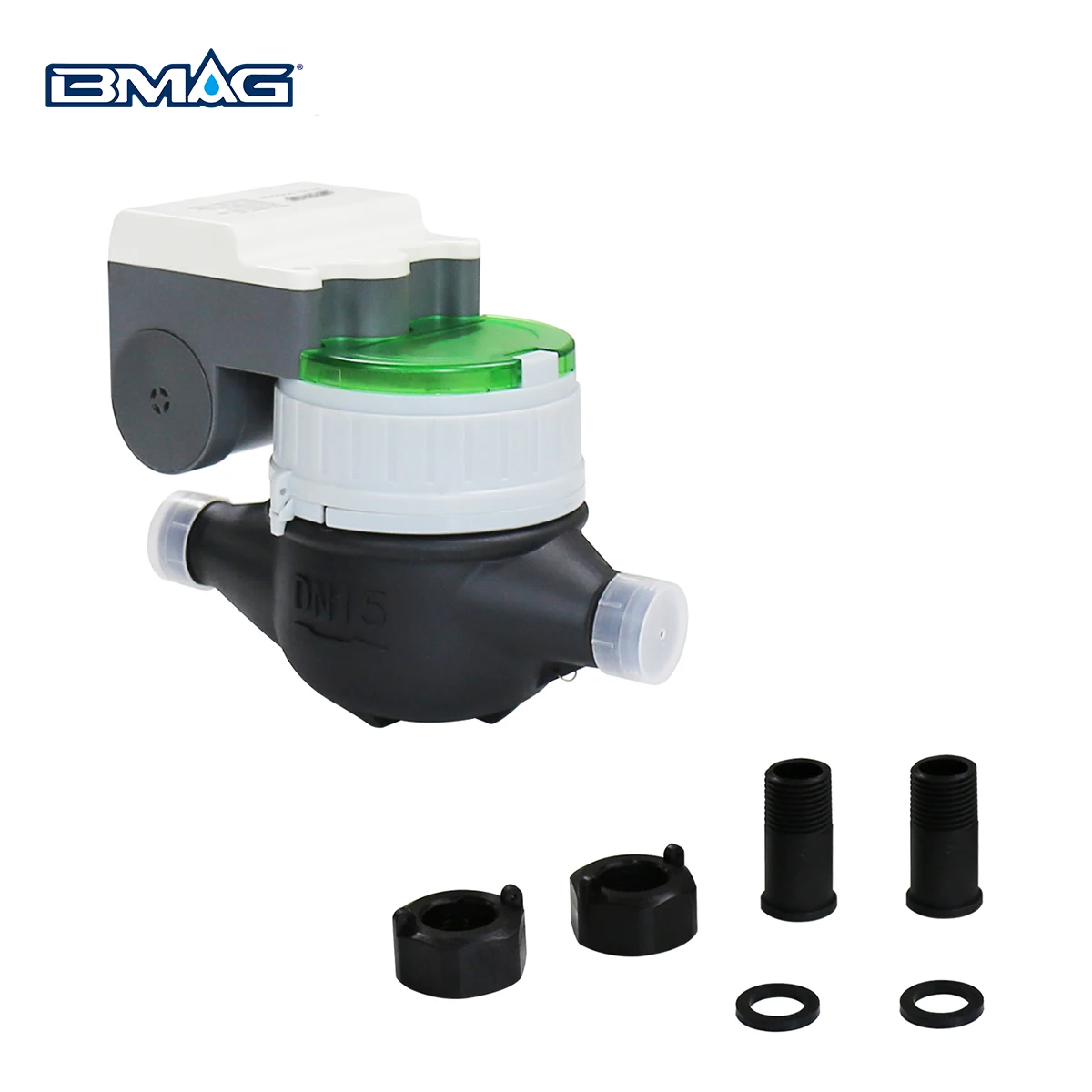

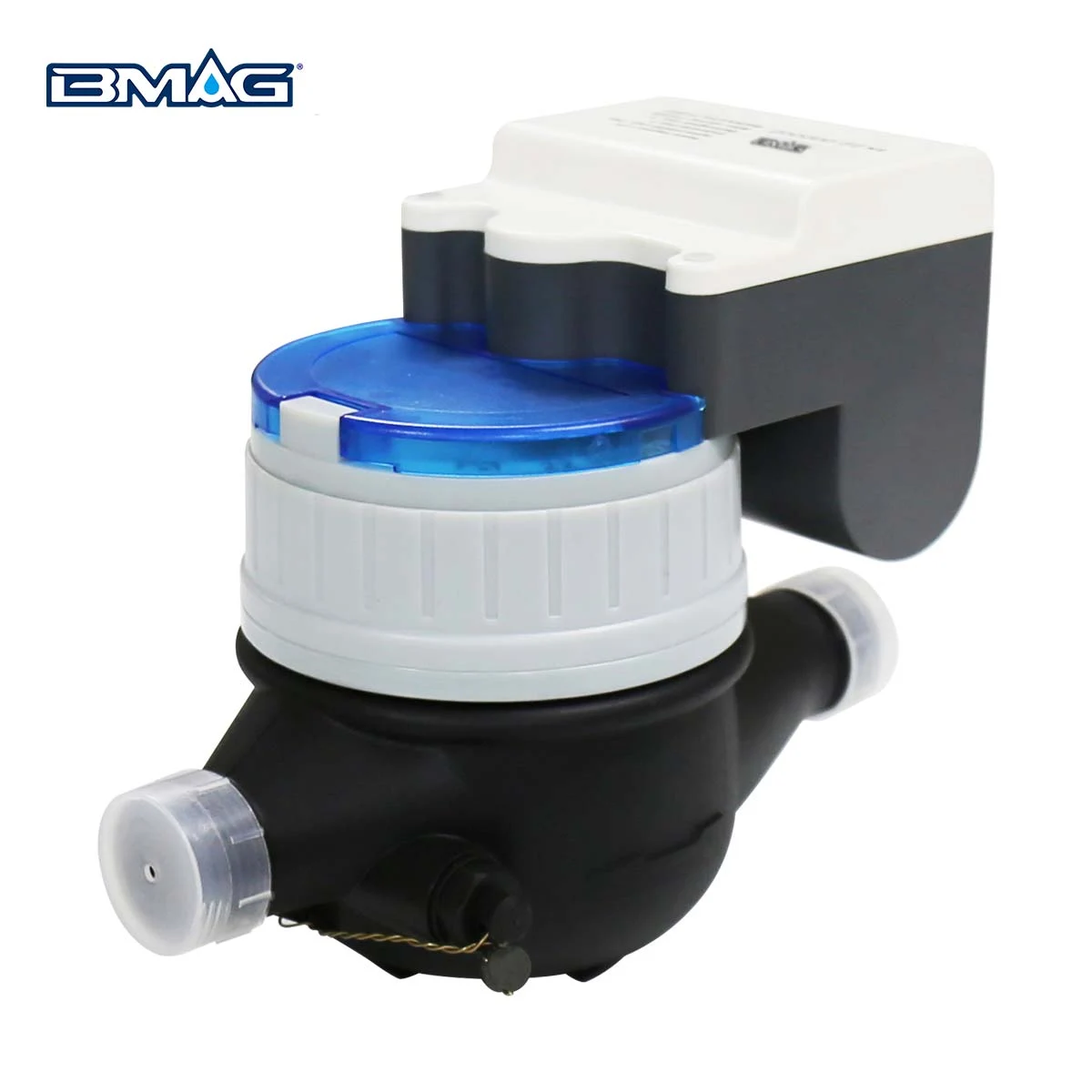

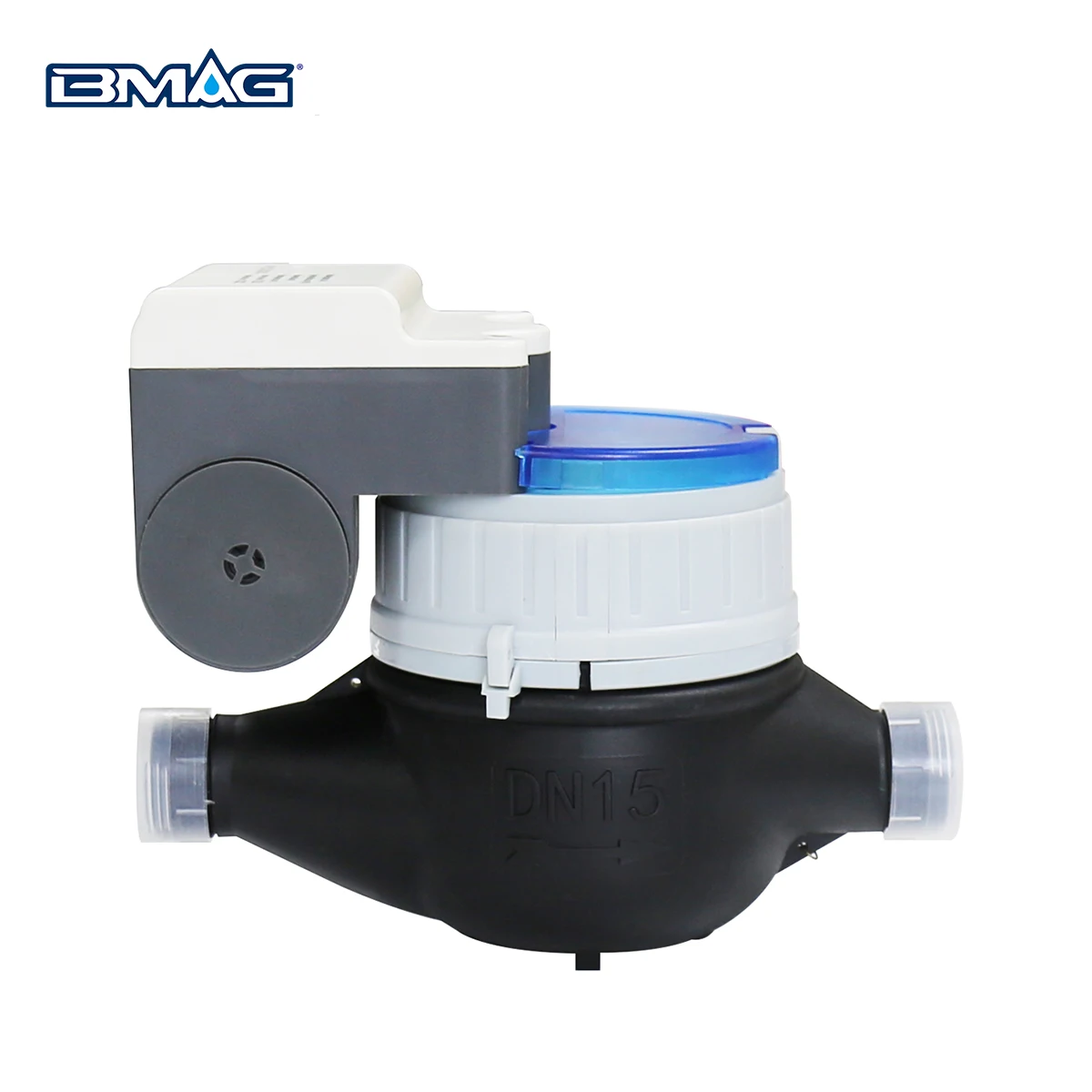

Plastic Multijet Smart Water Meter Fix Lora MJ-SDC-G
GV-5H Plastic Multijet Water meter, Copper or Stainless Steel register with IP68 protection.
Wireless communication with LoRa, LoRaWAN moudule
| Connect | BSP Thread, NPT Thread |
|---|---|
| Size | DN15-DN40 |
| Ratio | R80, R100, R160 |
| Unit Of Measure | Cubic meter, Gallons, Litre |
| Material | Plastic |
| Communication | LoRa, LoRawan, NB-IoT, wM-Bus |
Product Details
BMAG MJ-SDC-G Plastic Multi jet Smart Water Meter Fix Lora
Multi Jet Water Meter Feature
-
- Multi jet working principle assures a long service time
- Low pressure loss, high sensitivity at initial flow
- Special glass with high resistance to pressure and impact available
- All the material in contact with water,consciously selected by the known resistance to corrosion
- Protection against external magnetic fields
- Available for optical reading • 360° rotating lid
- Pulse output and AMR reading features are optional
- Non return valve and filter available
- Suitable for potable water, cold water up to 50°C
- Copper/Stainless steel can register with IP68 available
- Almost no maintenance • Vacuumed mechanism
- Wireless Data Communication for selection: LoRa, LoRaWAN
Multi Jet Water Meter Working Conditions
- Temperature: Available for cold water 0-50 ℃
- Pressure: ≤1.6MPa ( 16bars)
Dial Plate Design (DN15), customer’s design available
Standards Compliance
- ISO4064:2014/OIML R49
- Directive 2014/32/EU on measuring instruments
- European Standard EN14154
Dimension
Technical Data
Remark: For different Q3 and R, Please contact with BMAG
Max. Permission Error
- From Q1 inclusive up to but excluding Q2 is ±5%;
- From Q2 inclusive up to and including Q4 is ±2% for T30 and ±3% for T50;
