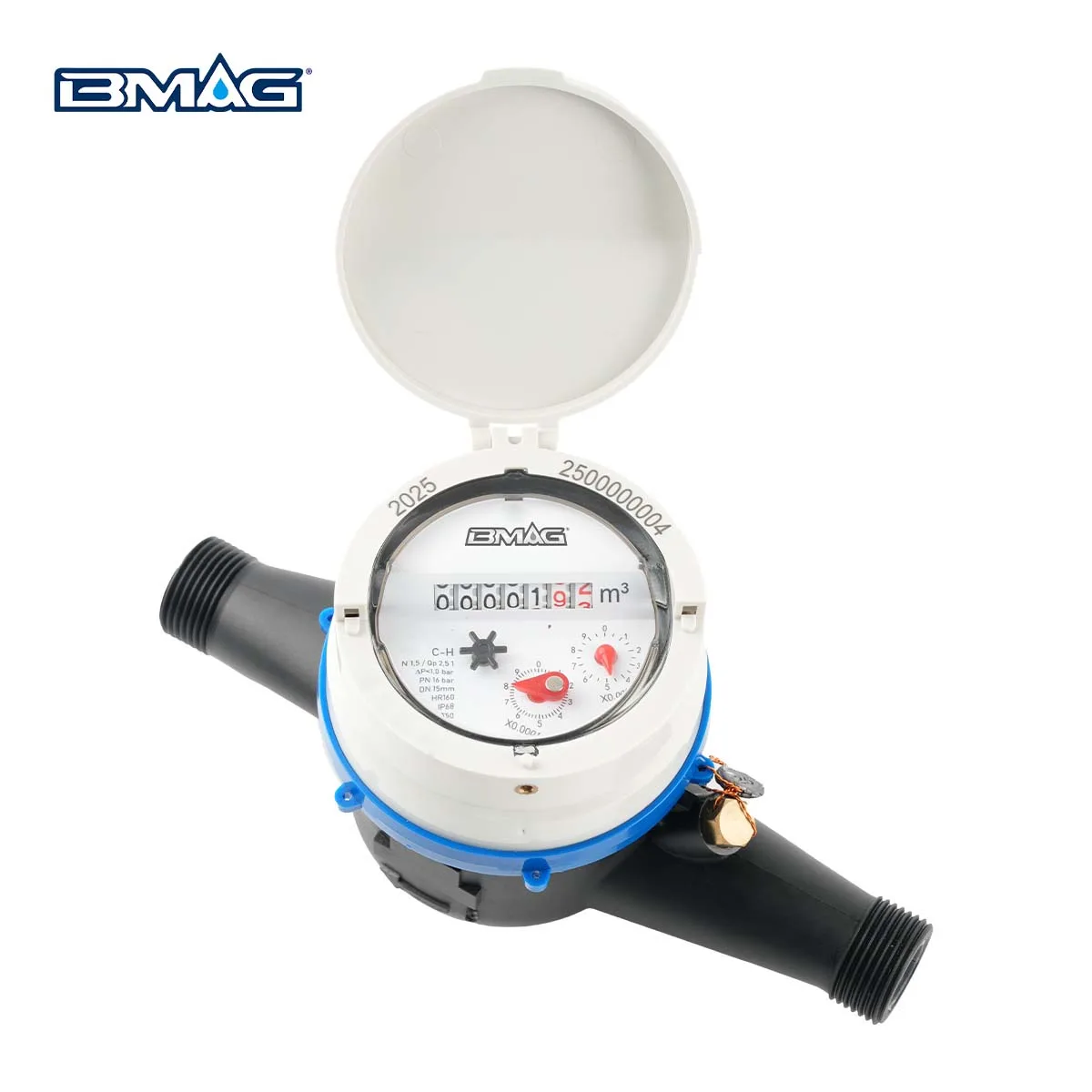

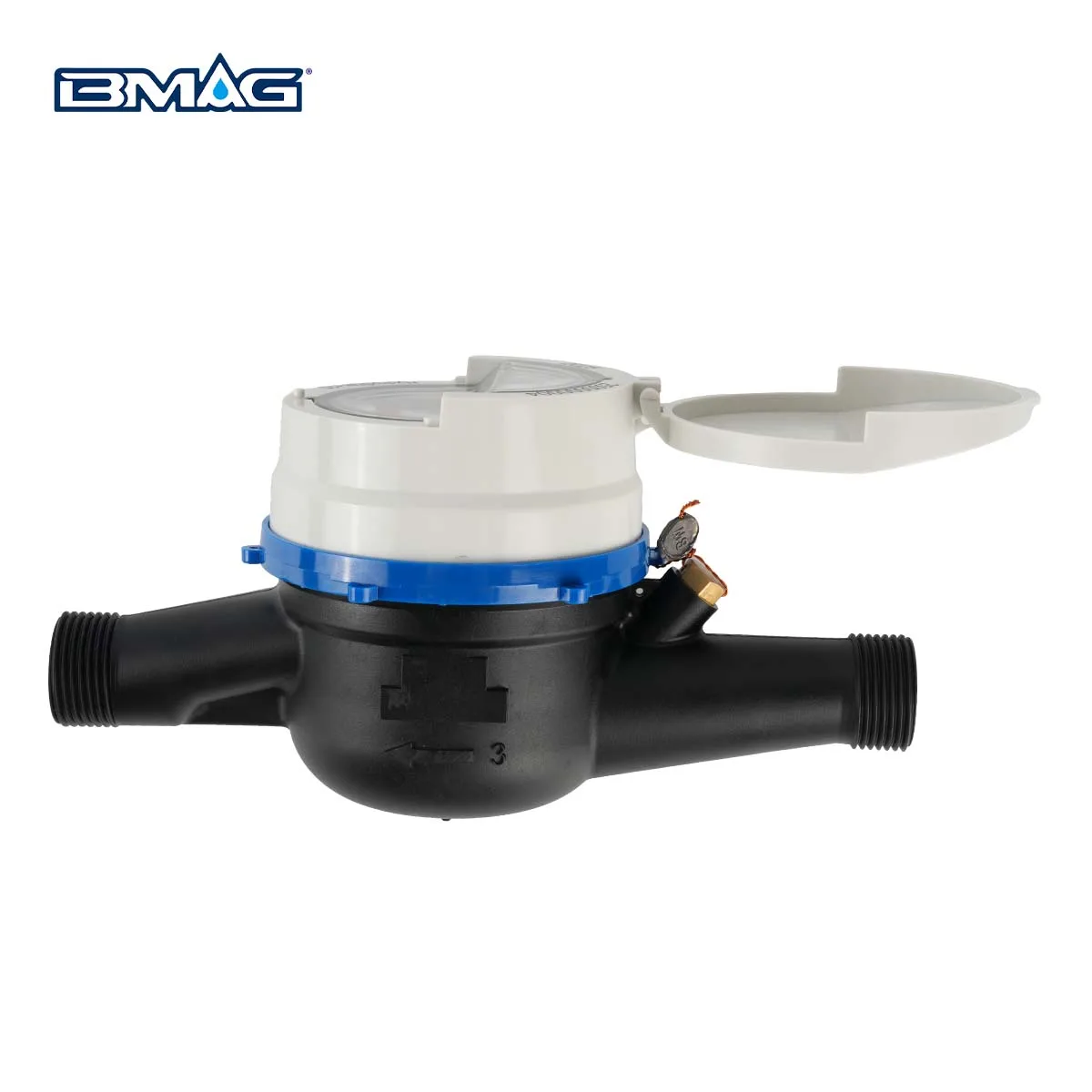

45 Degree Plastic Multi-Jet Water Meter | Tilt Dial R160 IP68 | BMAG Meter
45 Degree Plastic Multi-Jet Water Meter designed for residential and municipal cold water metering.
| Material | El plastico |
|---|---|
| Legumbres | Opcional |
| Tamaño | DN15-DN20 |
| Temperatura | 50℃（122℉） |
| Unidad de medida | Pies cúbicos, Metros cúbicos, Galones, Litros |
The TG-P 45-degree plastic multi-jet water meter is engineered for reliable cold water metering in residential, multi-family, and light commercial water distribution systems. Constructed with high-strength engineering plastic housing, it offers a cost-effective alternative to traditional brass water meters, delivering equivalent durability at a lower procurement cost for utility companies and plumbing distributors. Its user-centric design features a 45-degree tilted dial and 360-degree rotatable register, eliminating awkward positioning for meter readers and cutting down on reading time during routine utility checks. Boasting an IP68 ingress protection rating, this unit is fully dust-tight and submersible, making it suitable for both indoor and outdoor installations, including pit or underground meter box deployments. It meets R160 accuracy class standards, ensuring consistent, precise measurement across flow rates, with a 7+2 register (7 digit counter + 2 rotating dials) for clear, easy-to-read consumption tracking. Rated for T50 temperature operation (up to 50°C cold water), it is ideal for municipal water utilities, property management firms, and plumbing contractors looking for a low-cost, high-performance metering solution.
Características:
R400 Volumetric Water Meter Working Conditions
- Medidor de agua fría: 30°C (86°F), 50°C (122°F)
- Hot Water Meter: Up to 90°C (194°F)
- Presión: ≤1.6MPa (16bares)
Dial Plate Design (R400/R315/R250/R160)
Cumplimiento de estándares
- ISO4064:2014/OIML R49
- Directiva 2014/32/UE sobre instrumentos de medida
- Norma Europea EN14154

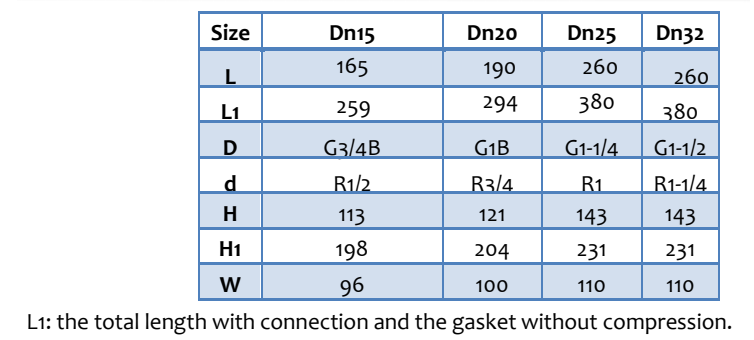

Dimensión
Datos técnicos
Exactitud
Desde el primer trimestre inclusive hasta el segundo trimestre (pero excluido) es ±5%;
Desde el segundo trimestre inclusive hasta el cuarto trimestre inclusive es ±2% para T30 y ±3% para T50

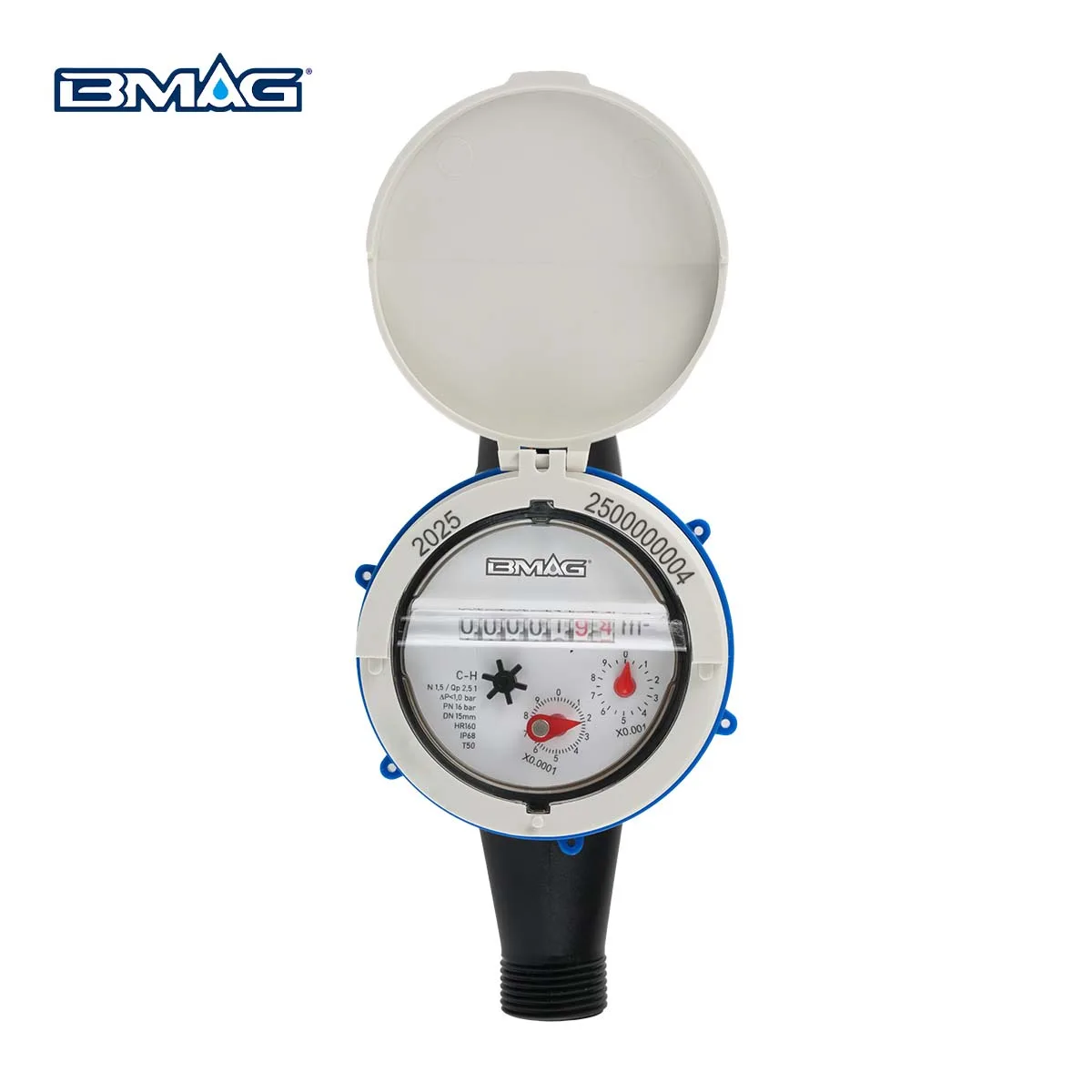

What are the benefits of a 45° angled register for water meters?
A 45° angled register tilts the display to match the natural viewing angle of meter readers, eliminating the need to bend over in narrow installation spaces (such as meter boxes or wall-mounted positions) and reducing reading errors caused by blind spots, greatly improving work efficiency.
{
