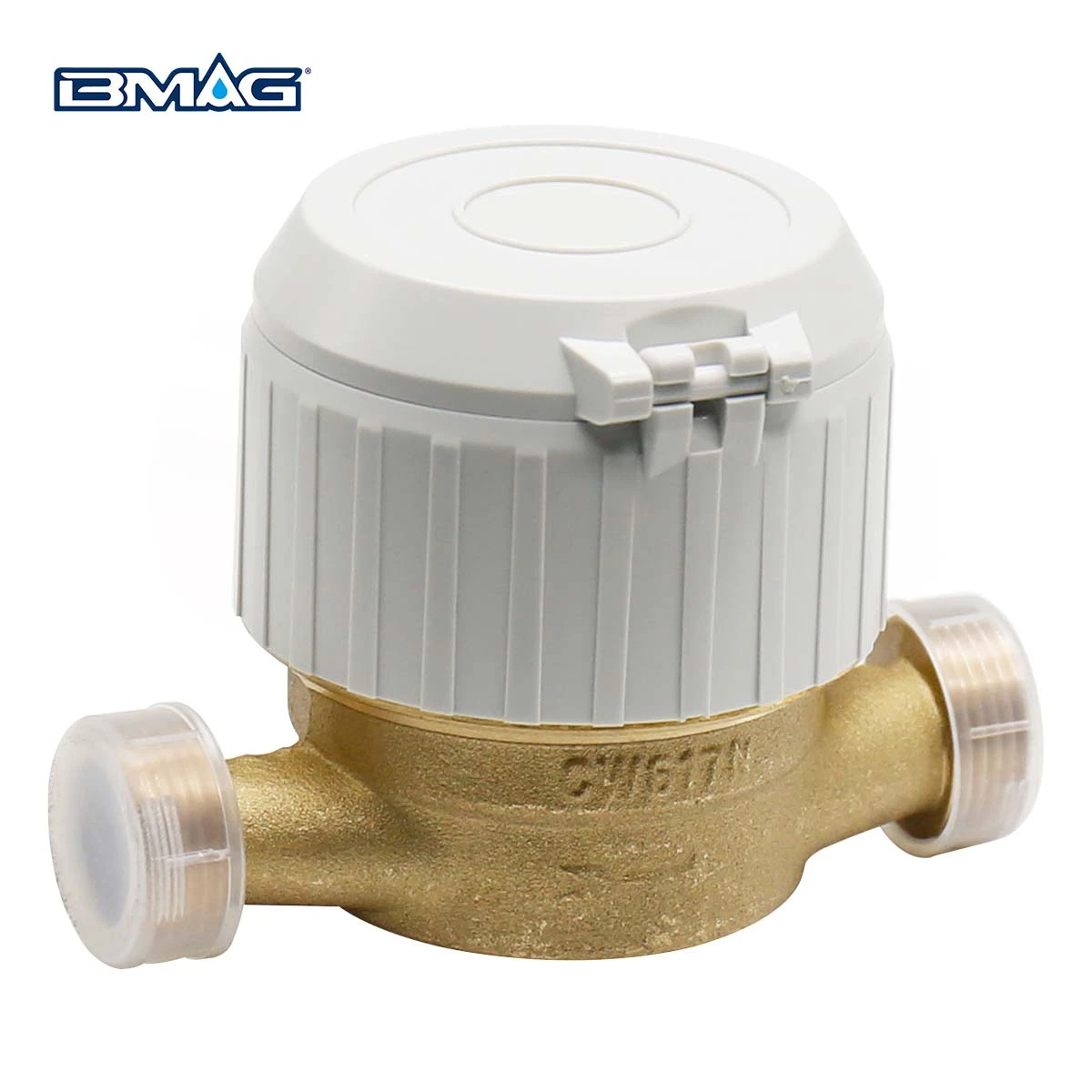

Anti-Magnetic Single Jet Water Meter
BMAG Anti-Magnetic Single Jet water meter complies with international Anti-Magnetic Standards, it can withstand a magnetic field of 100 kA/m ± 5 % applied for 15 minutes without showing any deformation, malfunction, or change in its metrological characteristics.
| پوشش | اختیاری |
|---|---|
| اتصال | رزوه BSP، رزوه NPT |
| اندازه | DN15-DN20 |
| نسبت | R80, R100, R160 |
| واحد اندازهگیری | فوت مکعب، متر مکعب، گالن، لیتر |
| مواد | برنج |
Anti-Magnetic Single Jet Water Meter
BMAG Anti-Magnetic Single Jet water meter complies with international Anti-Magnetic Standards, it can withstand a magnetic field of 100 kA/m ± 5 % applied for 15 minutes without showing any deformation, malfunction, or change in its metrological characteristics.
ویژگی
- Internal anti-magnetic ring: Protection against magnetic field interference
- Low pressure loss, high sensitivity at initial flow
- Special glass with high resistance to pressure and impact available
- Electrostatic painted body made of corrosion resistant brass
- محافظت در برابر میدانهای مغناطیسی خارجی
- خروجی پالس و ویژگیهای خواندن AMR اختیاری هستند
- Non return valve and filter available
- Suitable for potable water, cold water up to 50°C
- Almost no maintenance • Vacuumed mechanism
Working Conditions
- Temperature: Available for cold water 0-50 ℃
- فشار: ≤1.6MPa (16bars)
Dial Plate Design (DN15, R160)
انطباق با استانداردها
- ISO4064:2014/OIML R49
- دستورالعمل 2014/32/EU در مورد ابزارهای اندازهگیری
- استاندارد اروپایی EN14154
ابعاد
دادههای فنی

Max. Permission error
Head loss curve
