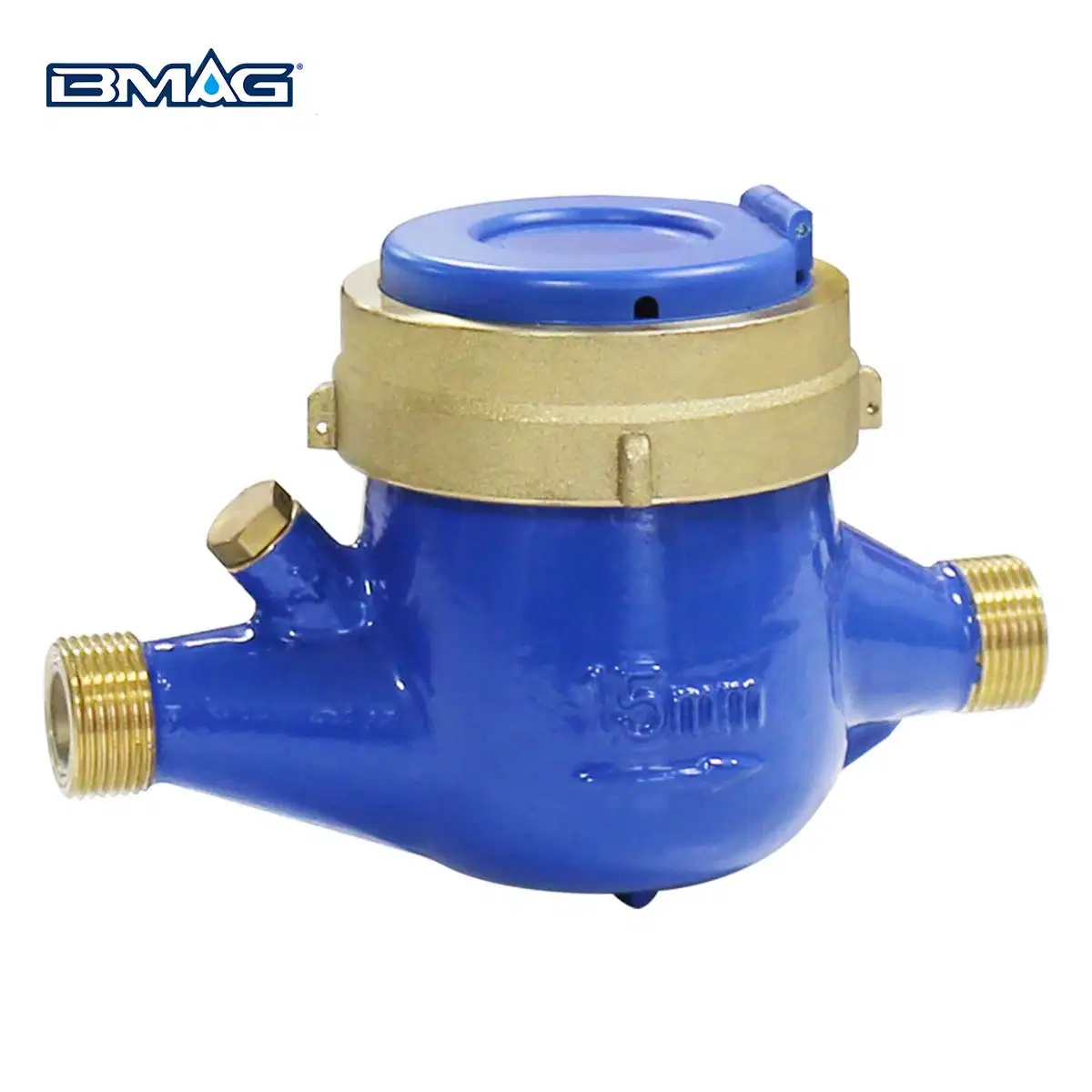

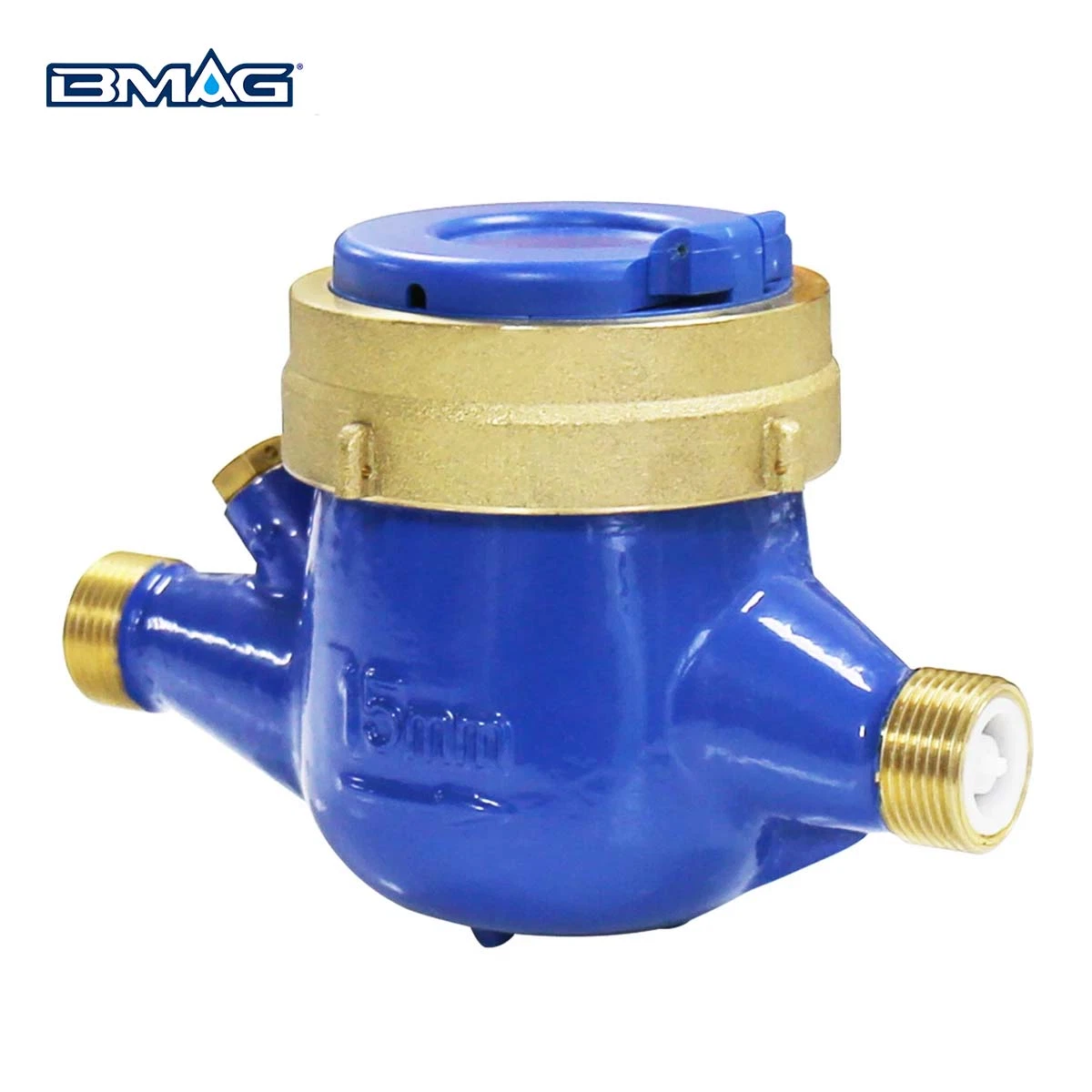

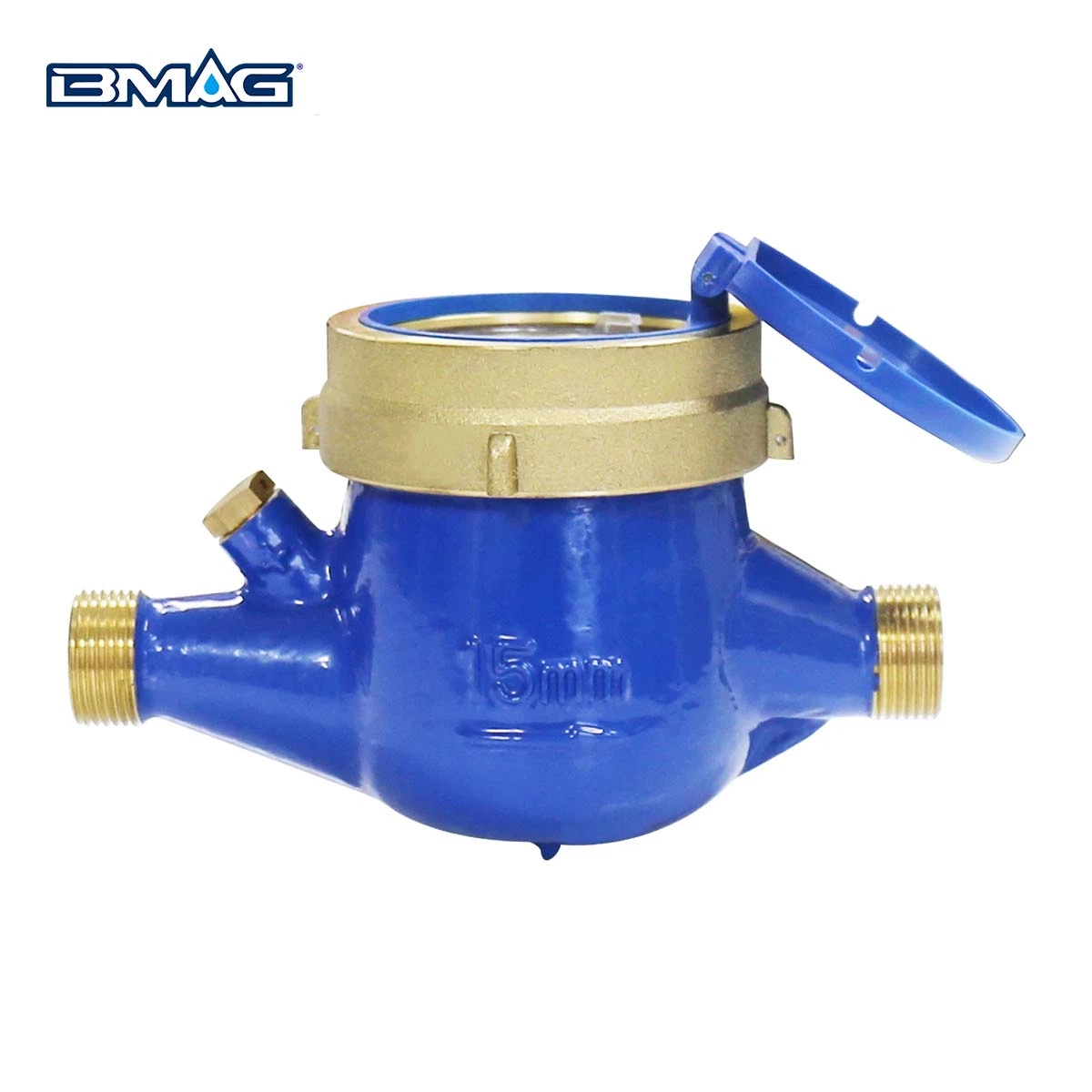

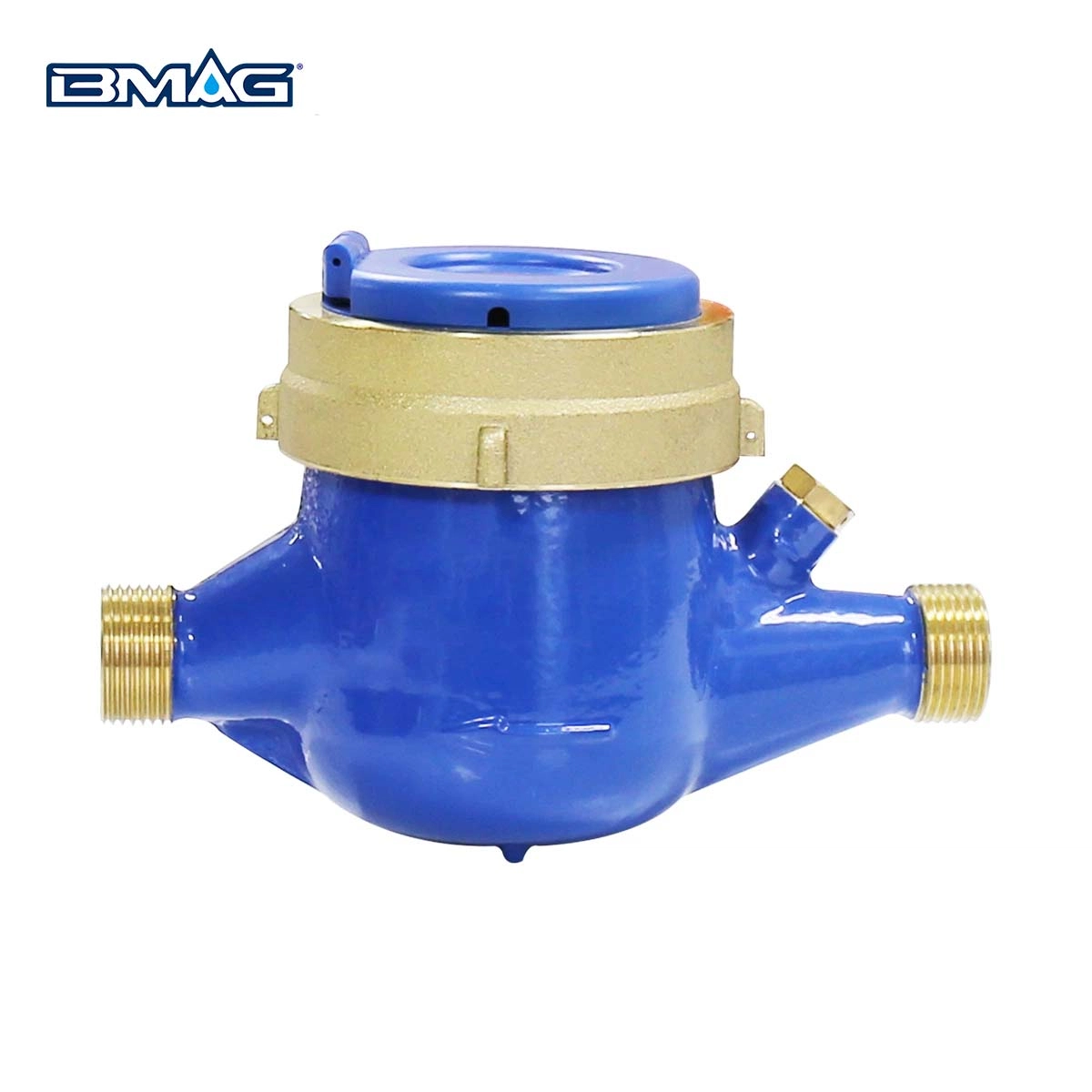

Bi-Directional Water Meter Anti Theft

Bi-Directional Water Meter Anti-Theft Feature

Bi-Directional Water Meter, or Multi Directional Water effectively prevents water theft, Even if users tamper with the water meter and install it in reverse, the BMAG Bi-Directional Water Meter can still function accurately. They ensure the rational use and management of water resources.

It accurately records actual water consumption, overcoming the issue of reversed readings caused by incorrect installation in traditional water meters. Additionally, the application of smart technology increasingly incorporates remote monitoring and data transmission capabilities, making water management more efficient and transparent.

Two-Way Water Meter Working Principle:

The Bi-Directional Water Meter is an improved version of the dry-type water meter. It features an enlarged outlet diameter and parallel channels for both the inlet and outlet. This design allows the Two-Way Water Meter to function correctly regardless of installation direction, enabling users to interchange the inlet and outlet freely.

Benefits:

Anti-Theft: Even if the user changes the direction of the meter, the pointer will not reverse, preventing the meter reading from reversing at the root
Economic Benefit: Protecting the interests of water companies

Application Scenarios:

Bi-Directional water meter is mainly ideal for residential applications:

• Residential Water Measurement: Accurate billing and water consumption tracking in homes.
• Indoor Water Systems: Effective monitoring of water usage within buildings.

Specifications

• برنج: Lead-Free Brass 87850, compliant with ISO 4064, NSF/ANSI 61, NSF/ANSI 372, EPA standards for lead-free water meters, suitable for potable water.
• Dial Lens مواد： High-Strength Glass – Fog-resistant, easy to read, UV-resistant.
• Dry Type Water Meter： The counter does not come into contact with water, leading to a longer service life and no fogging issues.
• دقت: R160, ensuring precise meter readings.
• Waterproof Seal: Copper-sealed mechanism achieving IP68 level dust and water resistance for enhanced durability.
• Low Flow Indicator: High Sensitivity, suitable for detecting minimal leaks.
• Anti-Magnetic Water Meter: Equipped with internal anti-magnetic rings to prevent magnetic interference and cheating, ensuring accurate and reliable readings.
• افت فشار: Excellent internal structure design to avoid vortices and turbulence, minimizing pressure loss.
• Dial：360° rotating, making installation and reading convenient.
• Flow Rate Units: Cubic Meters (m³)
• Maximum Reading：99999.9999 m³
• Minimum Scale: 0.0001 m³
• Accuracy Classes: Class B

اختیاری

• Sizes:
  • Nominal Diameter（DN）：DN15, DN20, DN25, DN32, DN40, DN50
  • Diameter（Inch）： 1/2″, 3/4″, ,1″, 1-1/4″, 1-1/2″, 2″
  • Length without coupler（mm）：165mm, 190mm, 260mm, 300mm
• Materials:
  • Brass: Lead Free Brass 87850
  • Bronze: Lead Free Bronze (C89833)
  • Cast Iron: GJS-500-7
  • Plastic: GV-5H, PA66+GF30 (Nylon 66 reinforced with 30% glass fiber), ABS
  • Stainless Steel: EU EN 1.4301 (304 Stainless Steel)
• Threads:
  • British Standard Pipe (BSP)
  • American Standard Threads (ANSI B1.20.1, NPT)
  • ISO 228
• Accuracy Classes: Class A, Class B, Class C
• Flow Rate Units: Cubic Meters (m³), Cubic Feet (ft³), Gallons (gal), Liters (L)
• Remote Communication:
  • LoRa
  • LoRaWAN
  • NB-IoT
  • GPRS
  • M-Bus
  • Electromagnetic Pulse
• Check Valve/ Non-return Valve: Optional. Control the direction of water flow and prevent backflow.
• Surface Coating: Electrostatic painted water meter body with Plastic Coating, Nickel Plating
• Dial Lens مواد: High-strength Glass, Plastic
• Mechanism: Plastic Sealed Mechanism, Copper/Stainless Steel Sealed Mechanism
• Accessories: Various complementary accessories

Water Meter Working Conditions

• Operating Temperature:
  • Cold Water Meter: up to 50°C
• Maximum Working Pressure: 16 bar (PN16) / 1.6 MPa
• Mounting direction: Horizontal installation. Inclined or angle changes might reduce water meter’s accuracy.

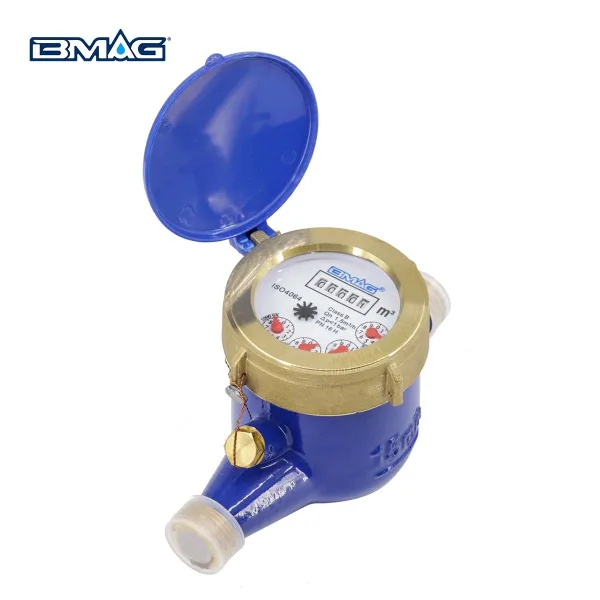

Dial Plate Design (DN15, R160)

انطباق با استانداردها

• International Standard: ISO 4064 / OIML R49
• European standard: EN 14154 / MID 2004/22/EC / MID 2014/32/EU
• American Standard：NSF/ANSI 61 / NSF/ANSI 372 / ASTM F1390 / AWWA C700 / AWWA C701 / AWWA C705 / AWWA C706 / AWWA C708 / AWWA C712

ابعاد
