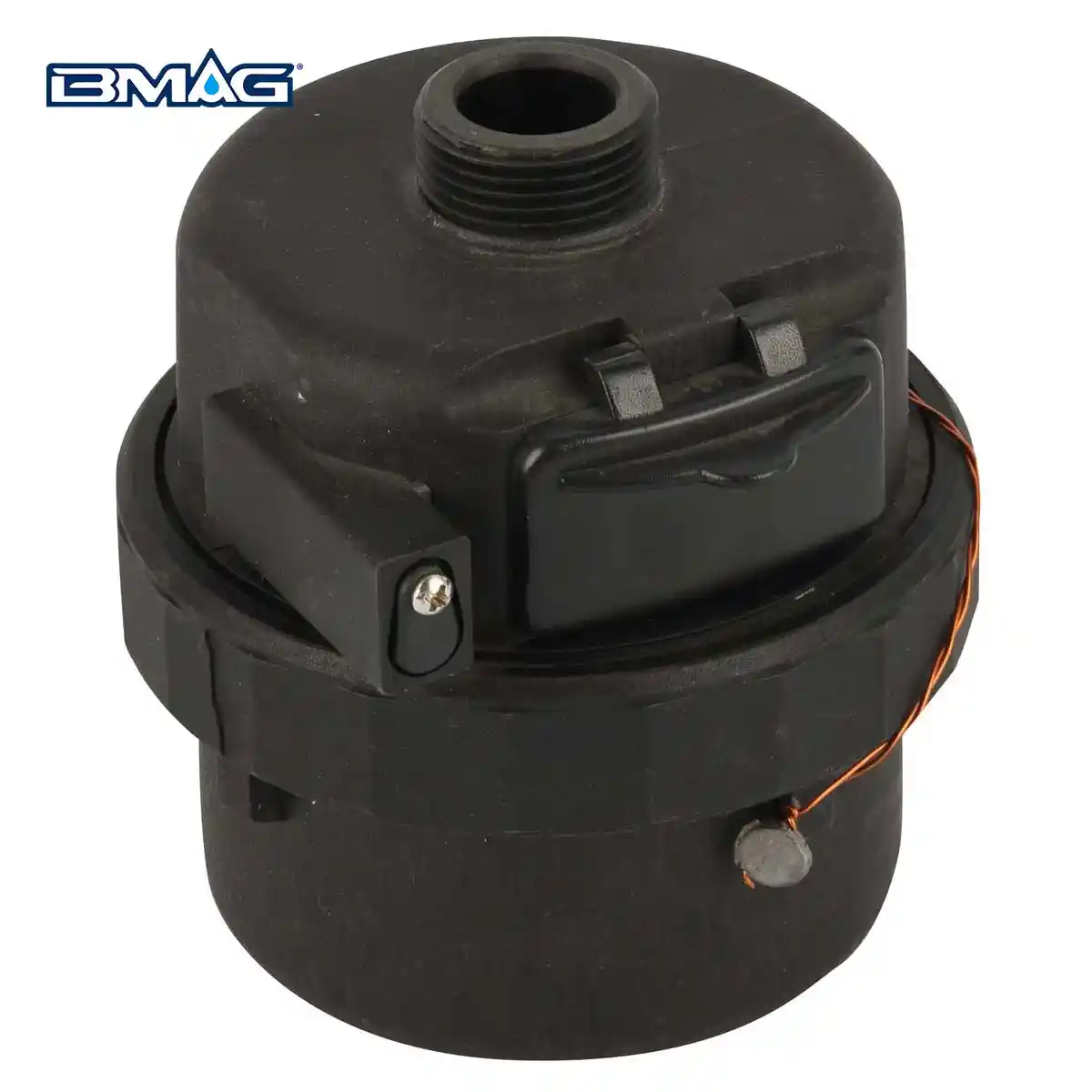

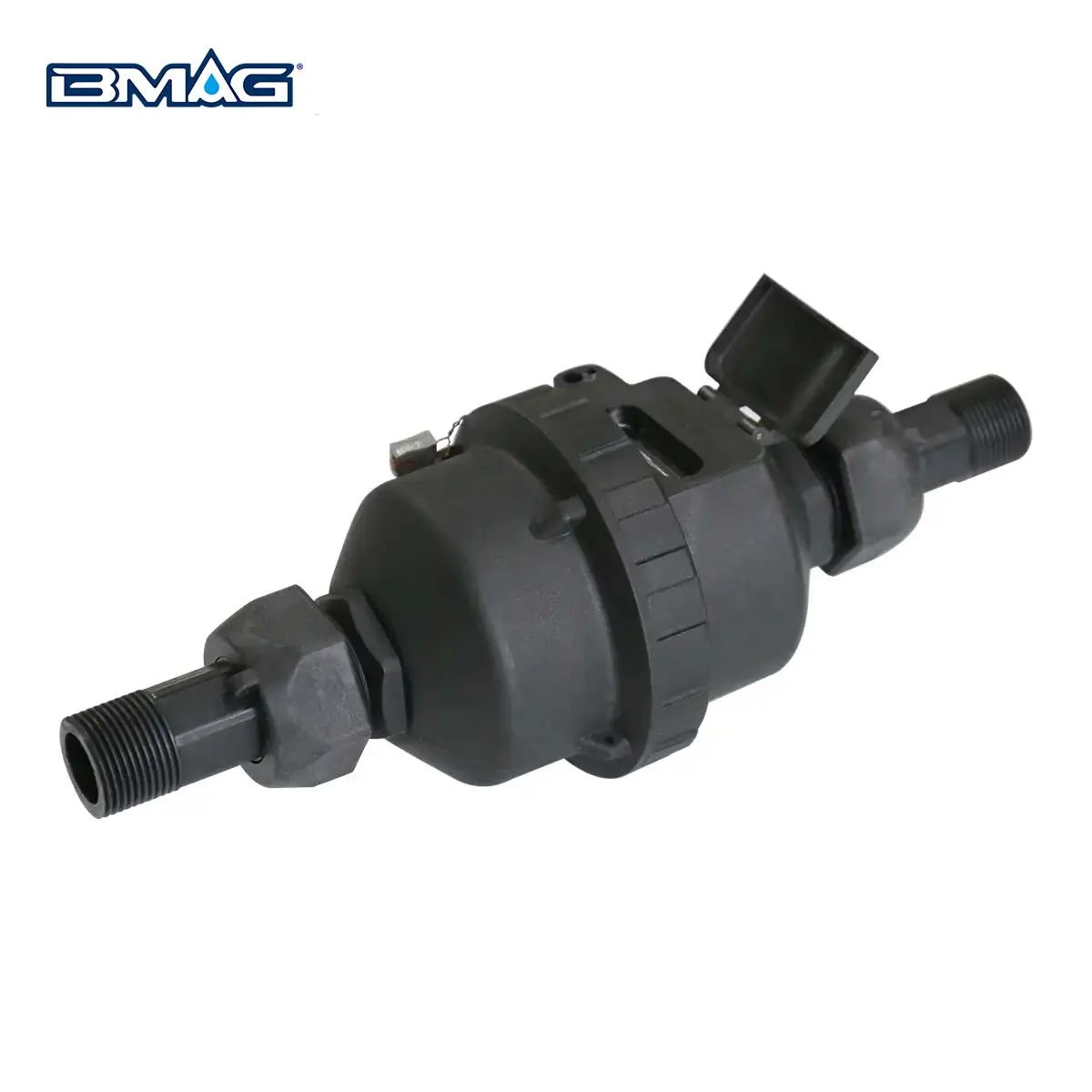

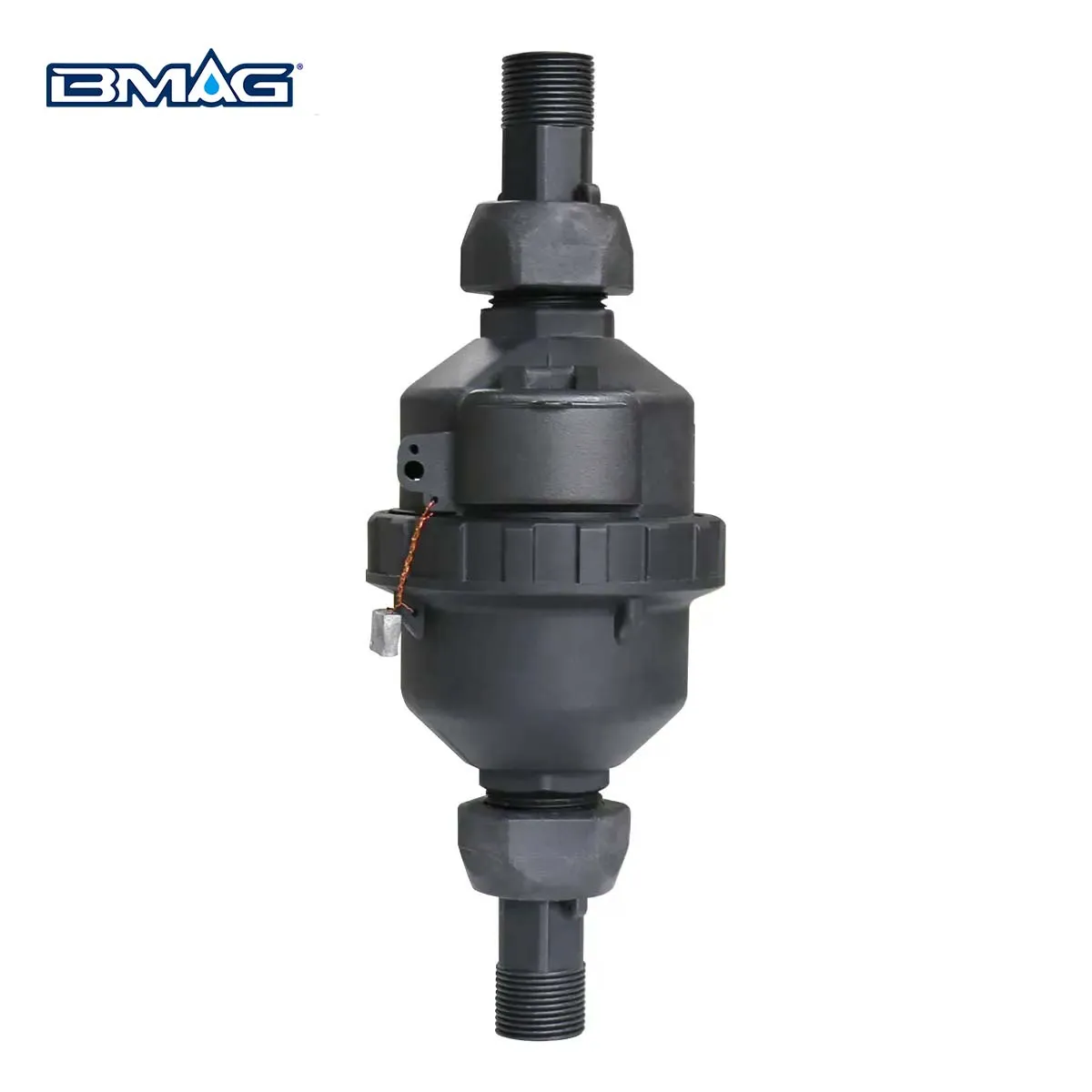

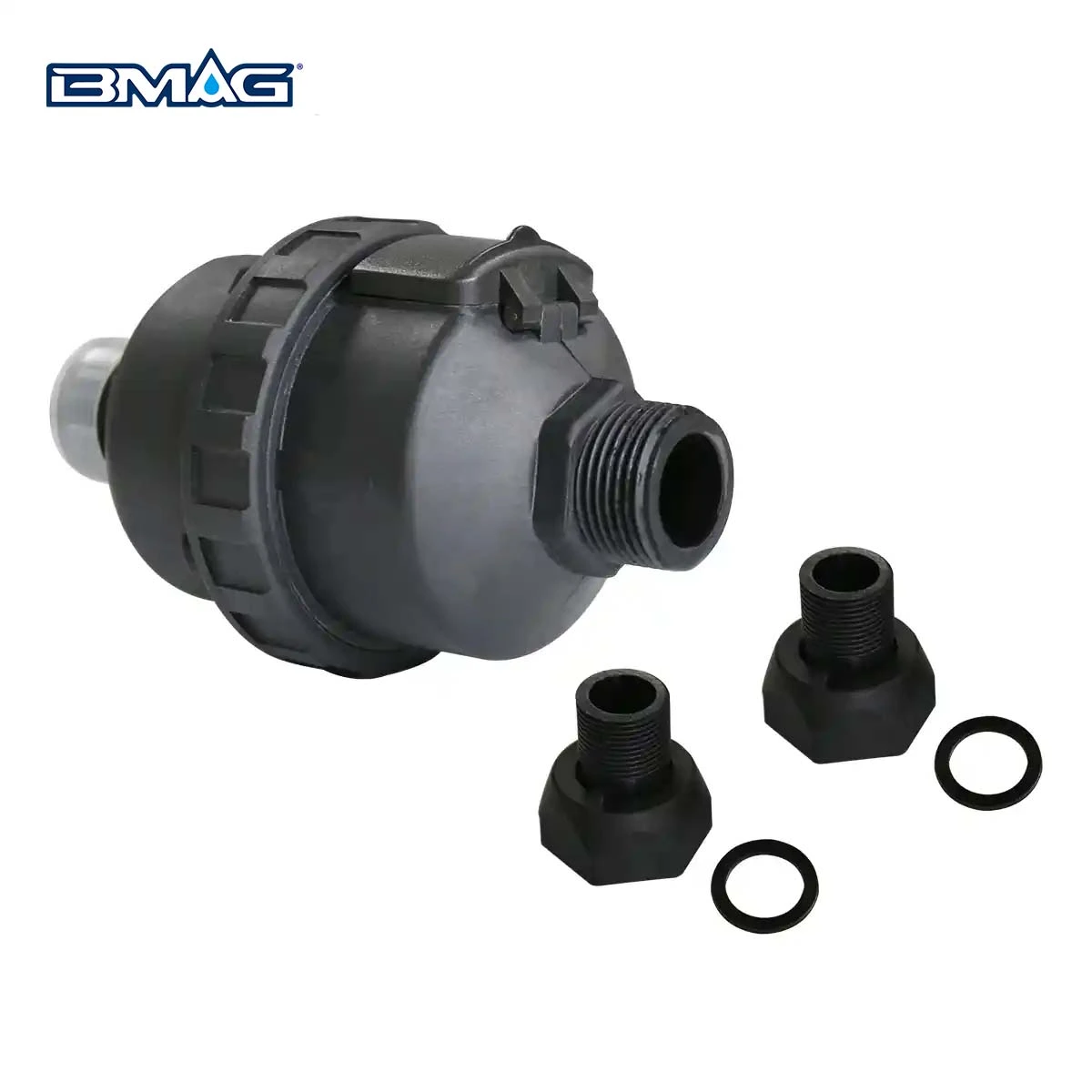

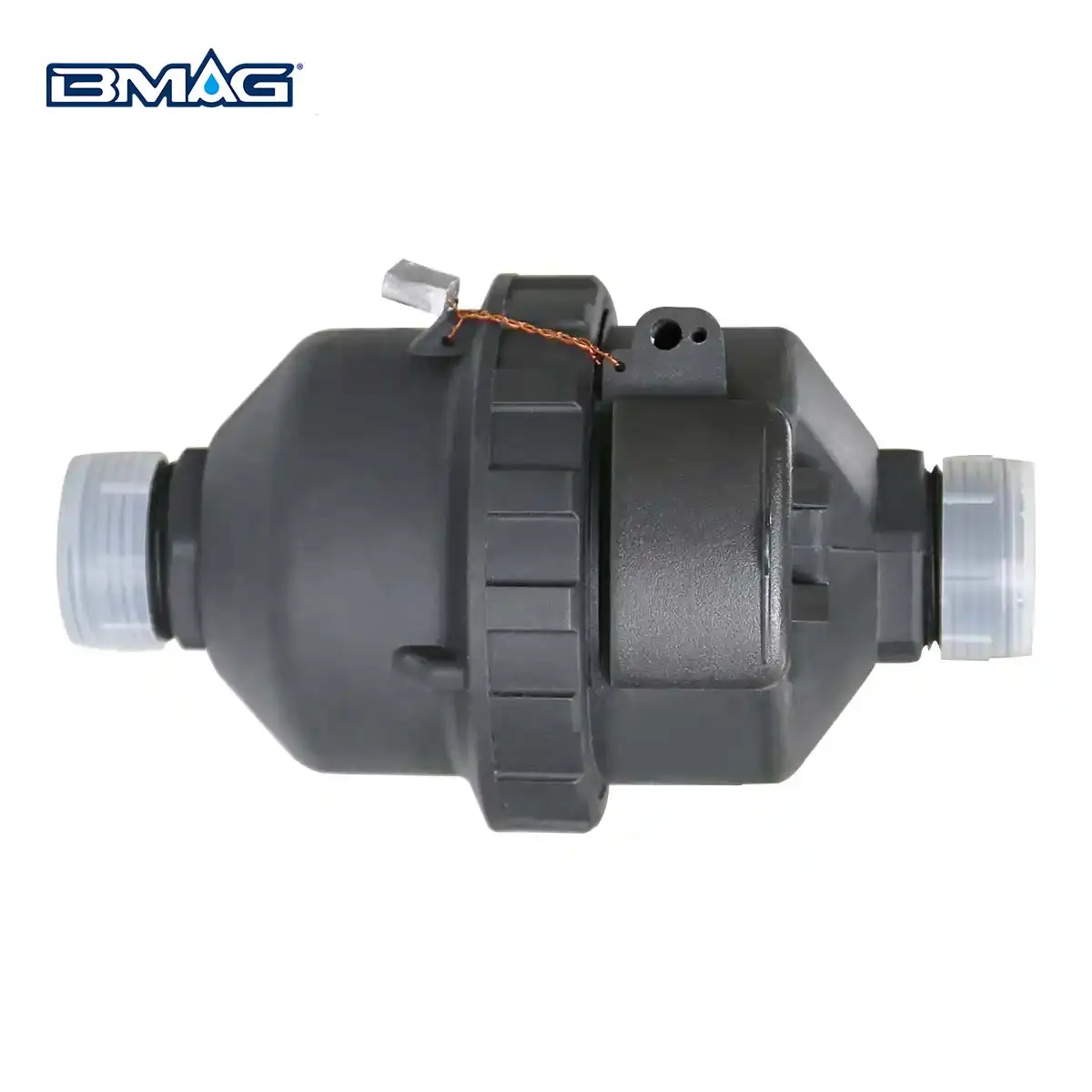

BMAG PD-LFC Plastic Nylon Volumetric Water Meter
Multi jet water meters offer a reliable and cost-effective solution for measuring water consumption in various settings, providing accurate data for billing, monitoring, and managing water resources.
| Pulse | اختیاری |
|---|---|
| مواد | Plastic |
| اندازه | DN15-DN40 |
| واحد اندازهگیری | Cubic meter |
جزئیات محصول
BMAG PD-LFC Plastic Nylon Volumetric Water Meter
Volumetric Water Meter Feature
- All the components ate produced with high resistance and quality materials, technical plastics and stainless steel parts
- The rollers are protected by special liquid dont touch with the water which ensures the clear reading in any operating conditions
- Suitable for any position installation
- The mechanical transmission movement with the maximum reliablitity
- Non Return Valve to avoid the reserve flow Rate AS OPTION
- Suitablefor potable water, cold water up to 50°C

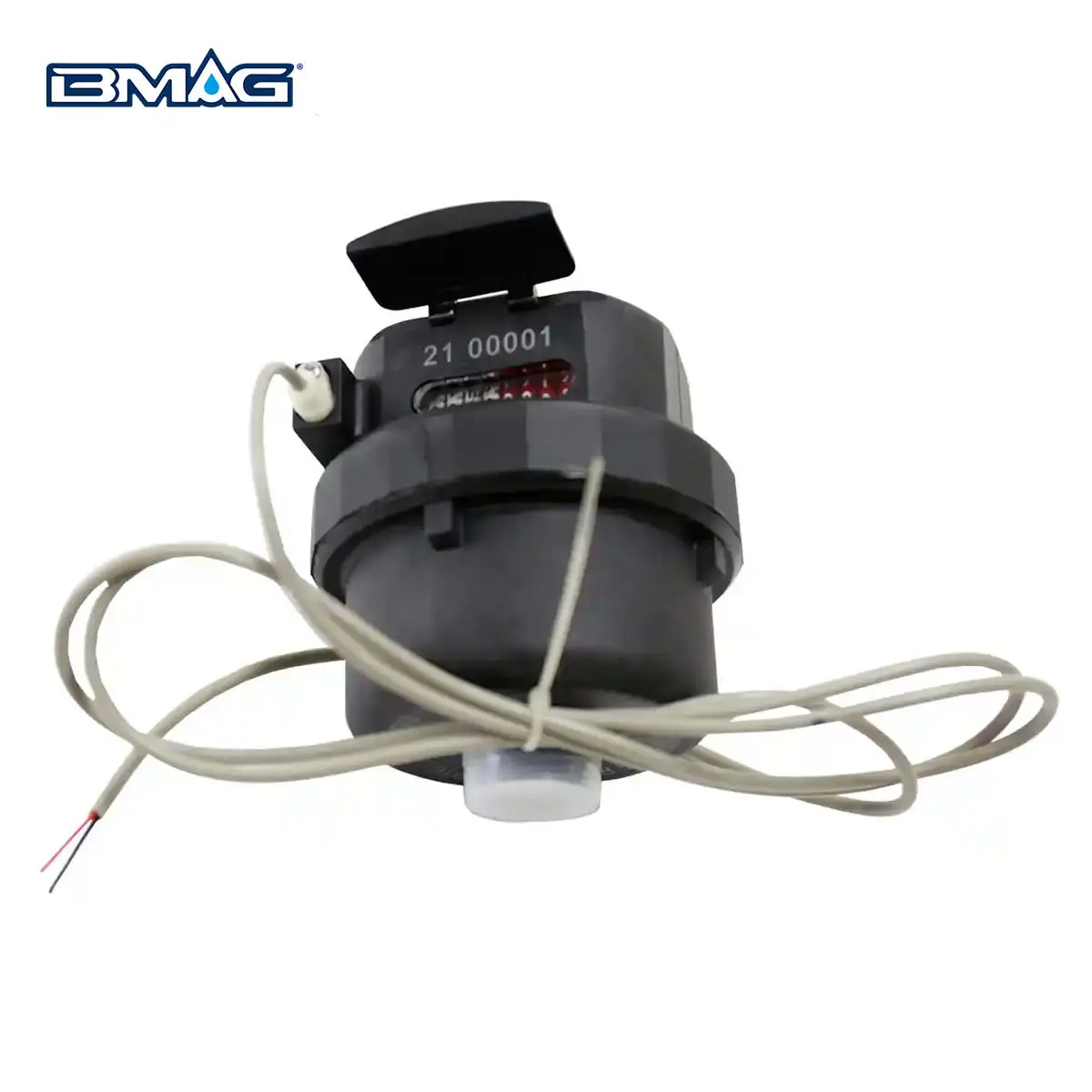

- Pulse output pre-equipped is avaliable, also pulse output avaliable
Volumetric Water Meter Working Conditions
- Temperature: Available for cold water 0-50 ℃
- فشار: ≤1.6MPa (16bars)

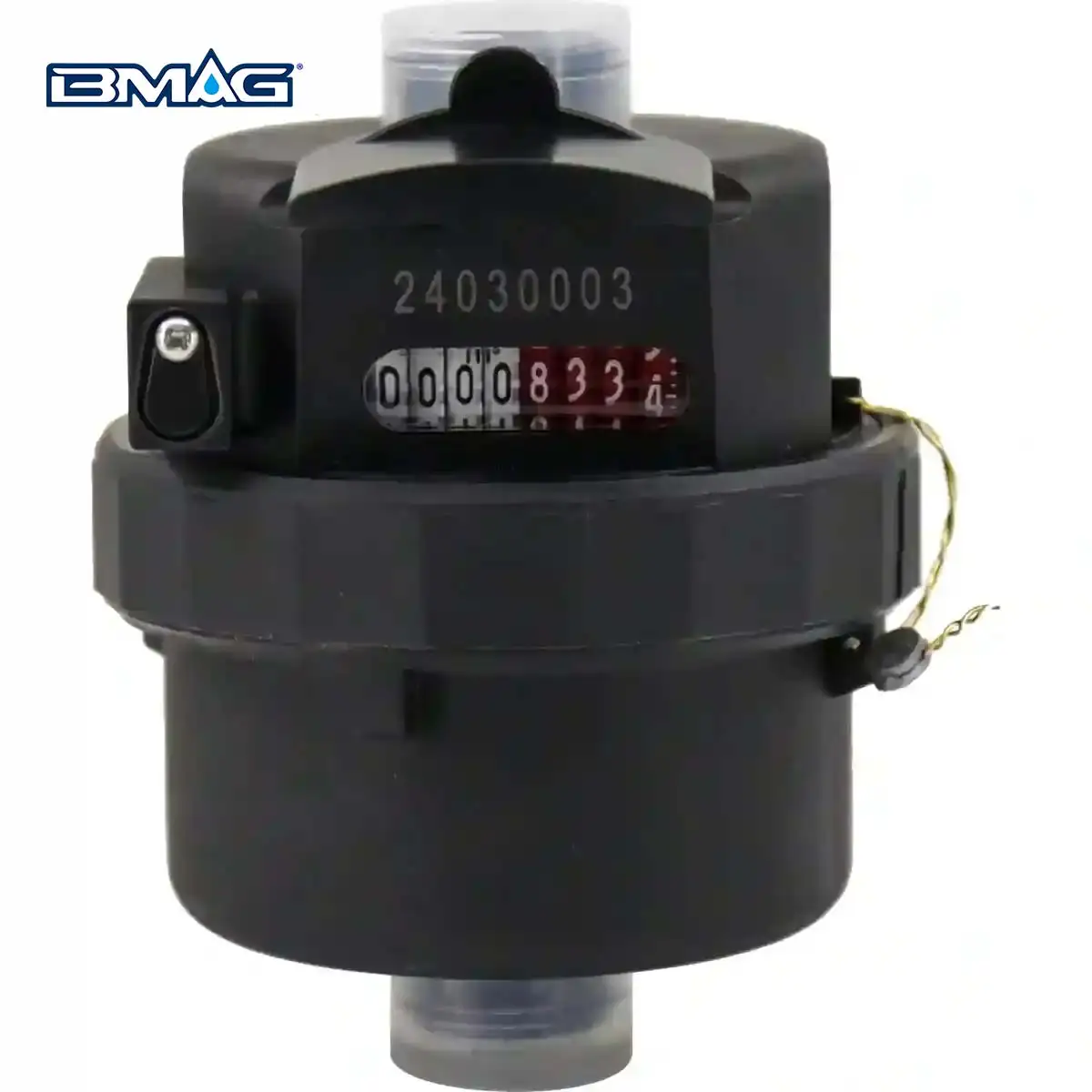

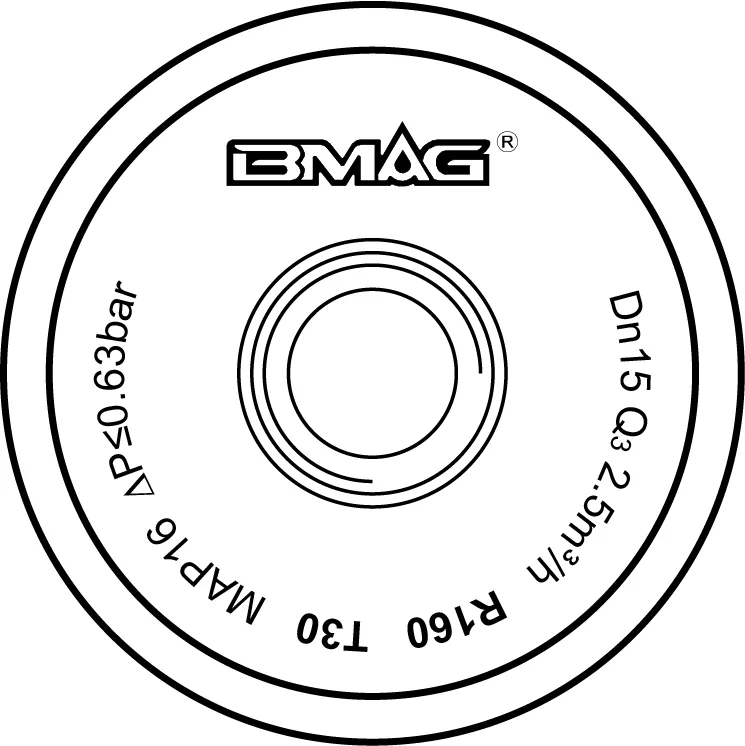

Dial Plate Design (R160)
انطباق با استانداردها
- ISO4064:2014/OIML R49
- دستورالعمل 2014/32/EU در مورد ابزارهای اندازهگیری
- استاندارد اروپایی EN14154

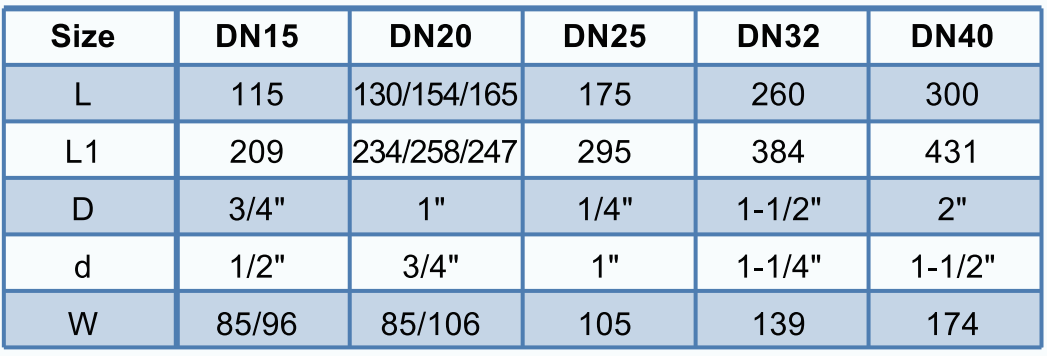

ابعاد

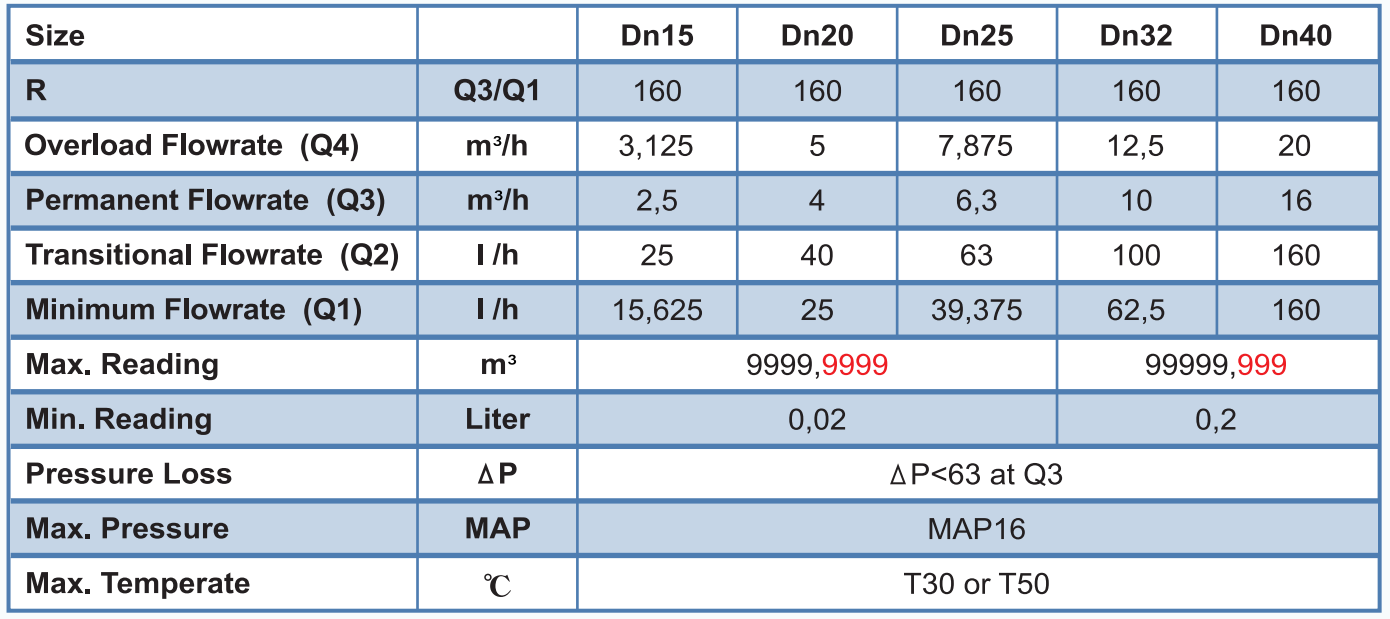

دادههای فنی

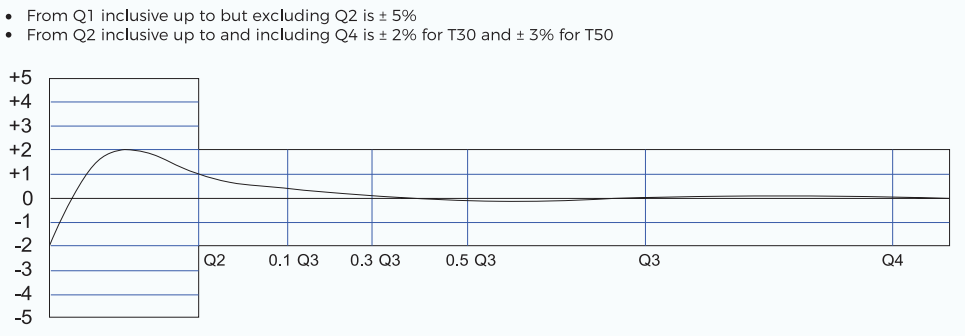

دقت
