کنتور آب برنجی چند جت LoRa
Discover the Brass Multi Jet LORA Water Meter, designed for accurate water measurement and efficient monitoring. Ideal for residential and commercial applications, this durable and reliable meter utilizes advanced LoRa technology for seamless data transmission. Ensure optimal water management with our innovative solution. Produced in the versions for cold water (30℃) and hot water (90℃), it covers the size from DN15 to DN50.
| پوشش | اختیاری |
|---|---|
| اتصال | رزوه BSP، رزوه NPT |
| اندازه | DN15-DN50 |
| نسبت | R80, R100, R160 |
| واحد اندازهگیری | فوت مکعب، متر مکعب، گالن، لیتر |
| مواد | برنج |
| Communication | LoRa, LoRawan, NB-IoT, wM-Bus |

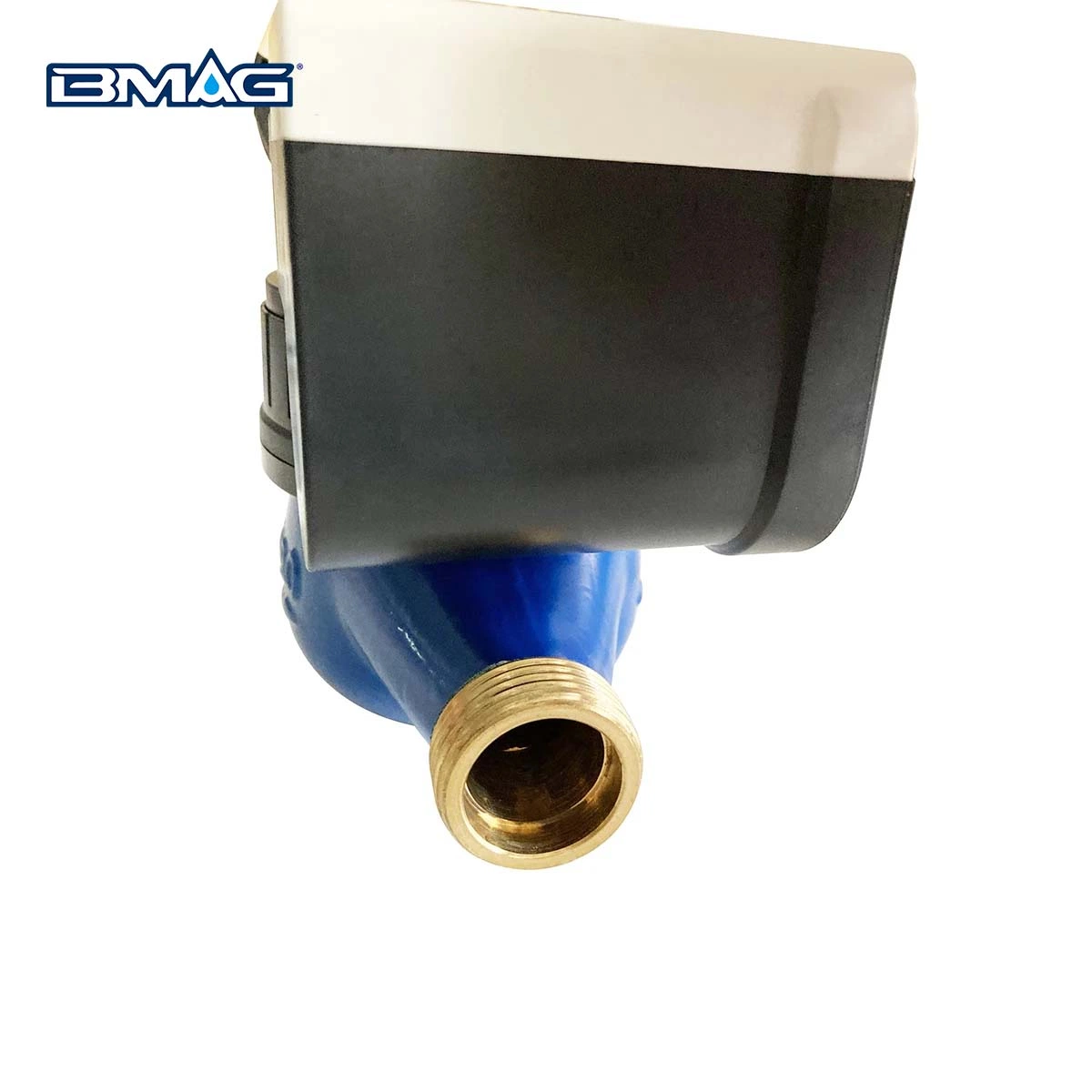

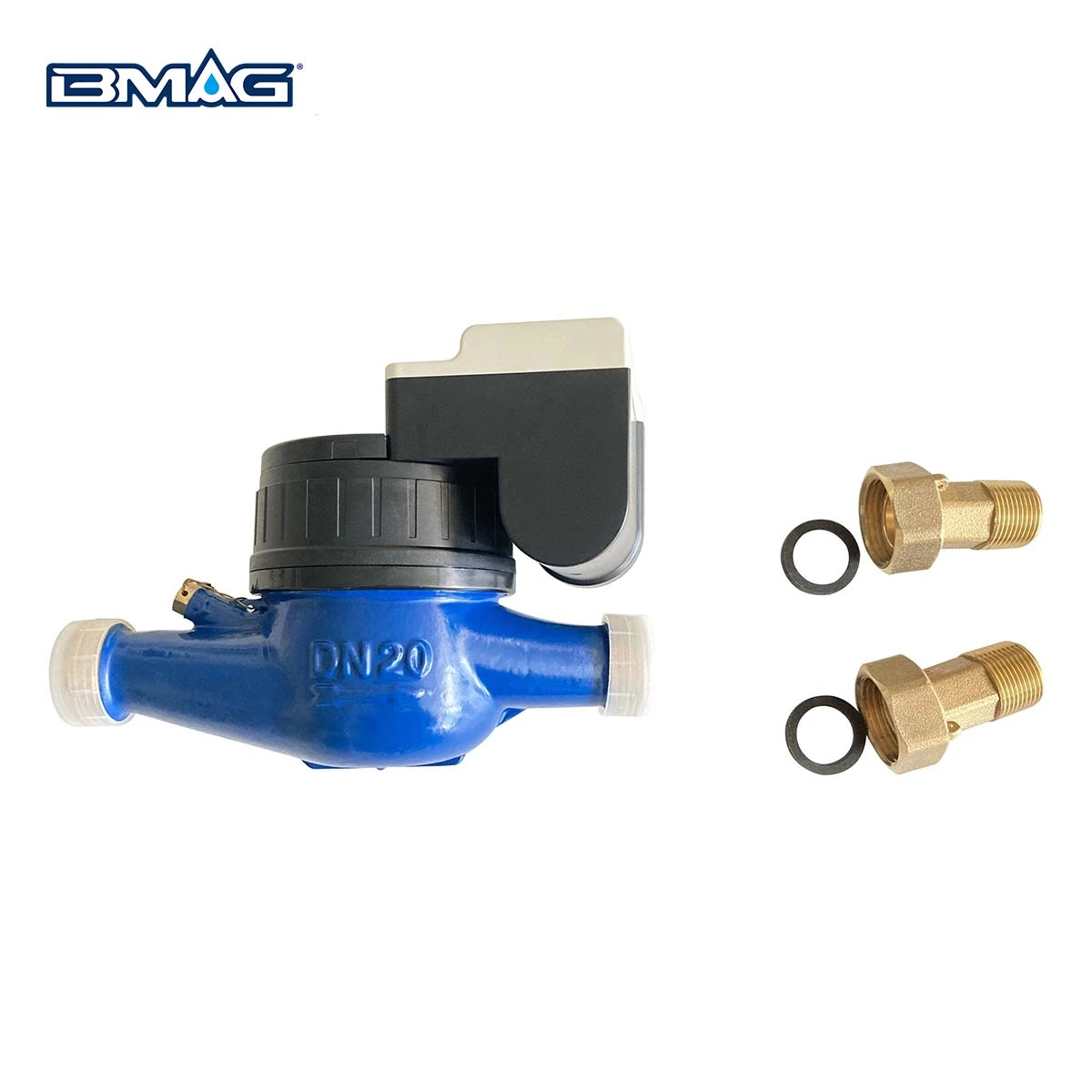

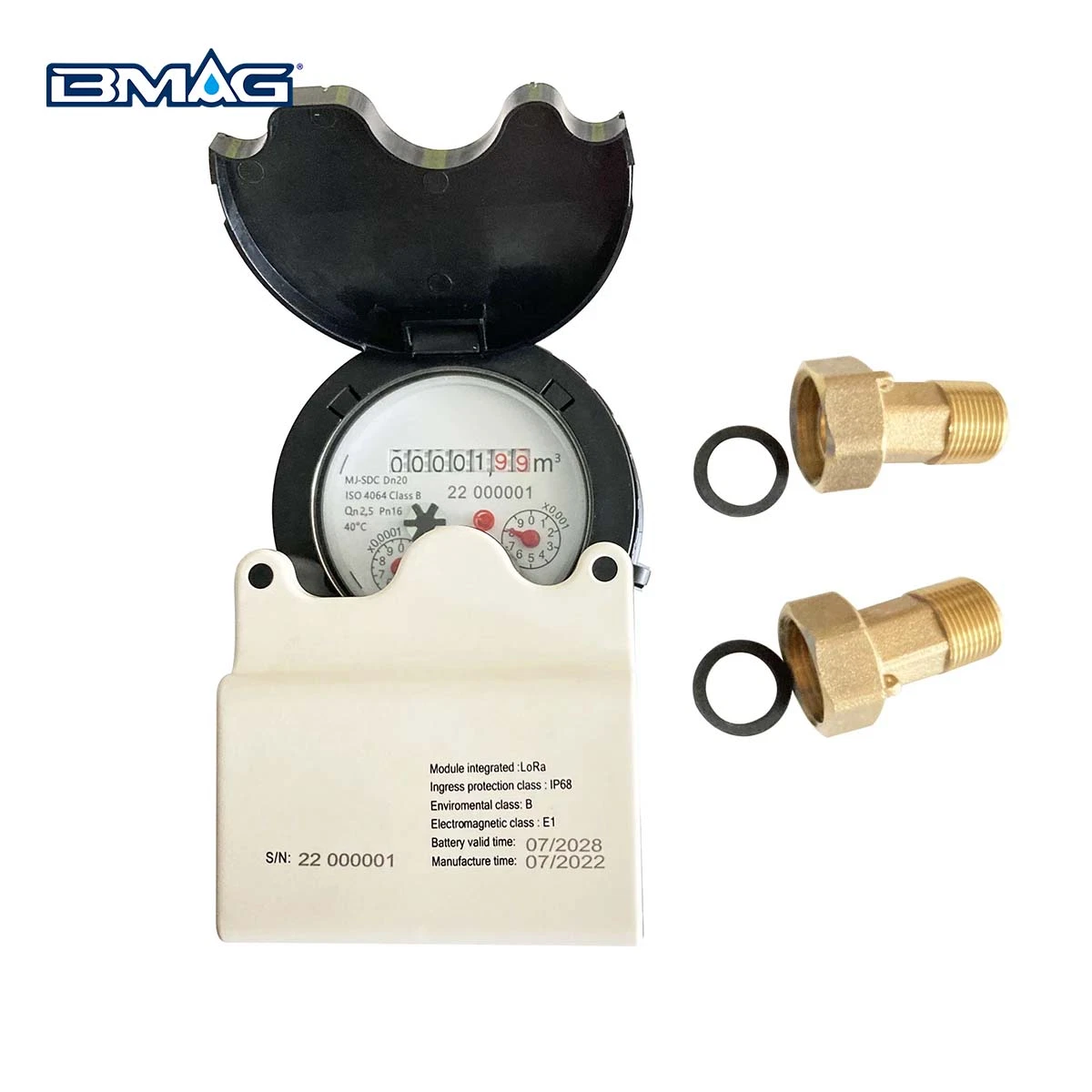

BMAG MJ-SDC Brass Multi Jet LoRa Water Meter
Multi Jet LORA Water Meter Feature
- Multi jet working principle assures a long service time
- Low pressure loss, high sensitivity at initial flow
- Electrostatic painted body made of corrosion resistant brass
- The Impeller is the only moving parts in contact with water permitting the most reliable
- محافظت در برابر میدانهای مغناطیسی خارجی
- The LoRa water meter sensor allows for the collection of water consumption data
- Non return valve and filter available
- Suitable for potable water, cold water up to 50°C
- Almost no maintenance • Vacuumed mechanism
- Wireless Data Communication for selection: LoRa, LoRaWAN, NB-IoT
Multi Jet LoRa Water Meter Working Conditions
- Temperature: Available for cold water 0-50 ℃
- فشار: ≤1.6MPa (16bars)
انطباق با استانداردها
- ISO4064:2014/OIML R49
- دستورالعمل 2014/32/EU در مورد ابزارهای اندازهگیری
- استاندارد اروپایی EN14154

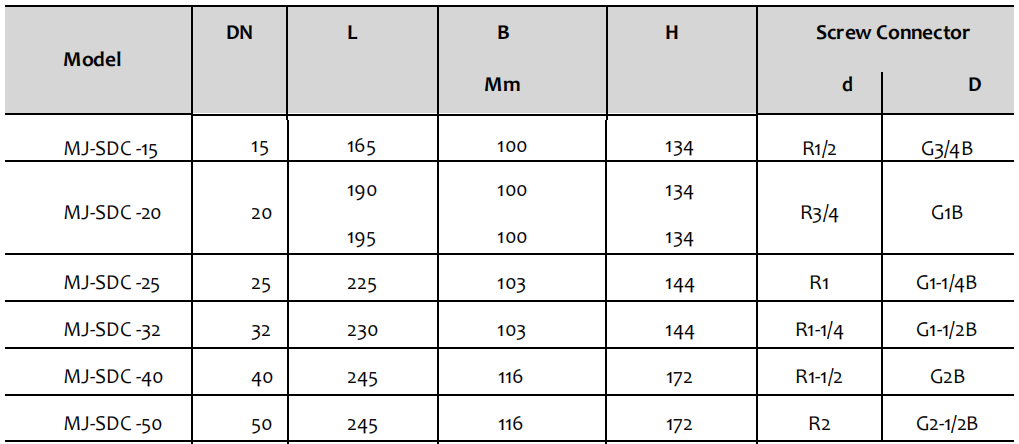

ابعاد

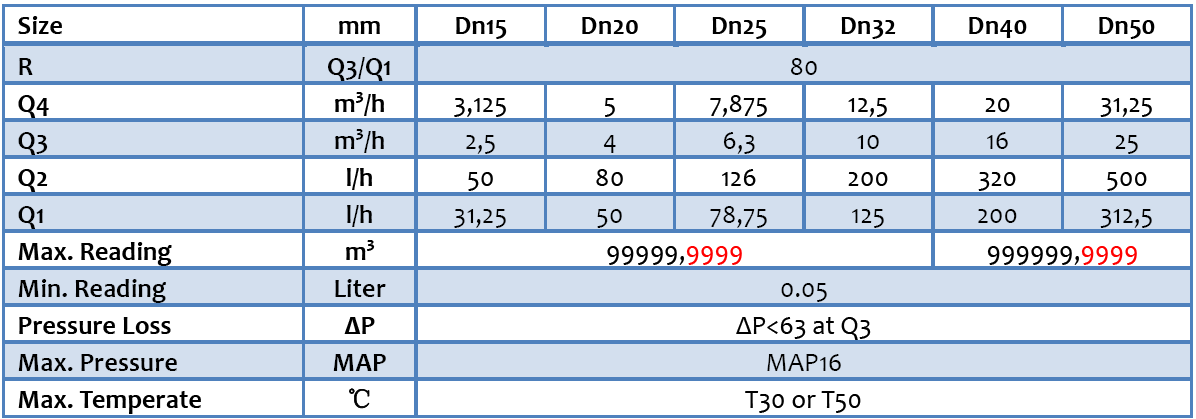

دادههای فنی
Remark: For different Q3 and R, Please contact with BMAG
Max. Permission Error
- From Q1 inclusive up to but excluding Q2 is ±5%;
- From Q2 inclusive up to and including Q4 is ±2% for T30 and ±3% for T50;
ما ۳۵۰۰۰ متر مربع تأسیسات و ۲۰+ سال experience back our ۱۰ ساله تضمین کیفیت.
با ما ارتباط برقرار کنید تیم خدمات مشتری برای درخواست نمونه و بحث در مورد سیاستهای انعطافپذیر حداقل سفارش ما.
