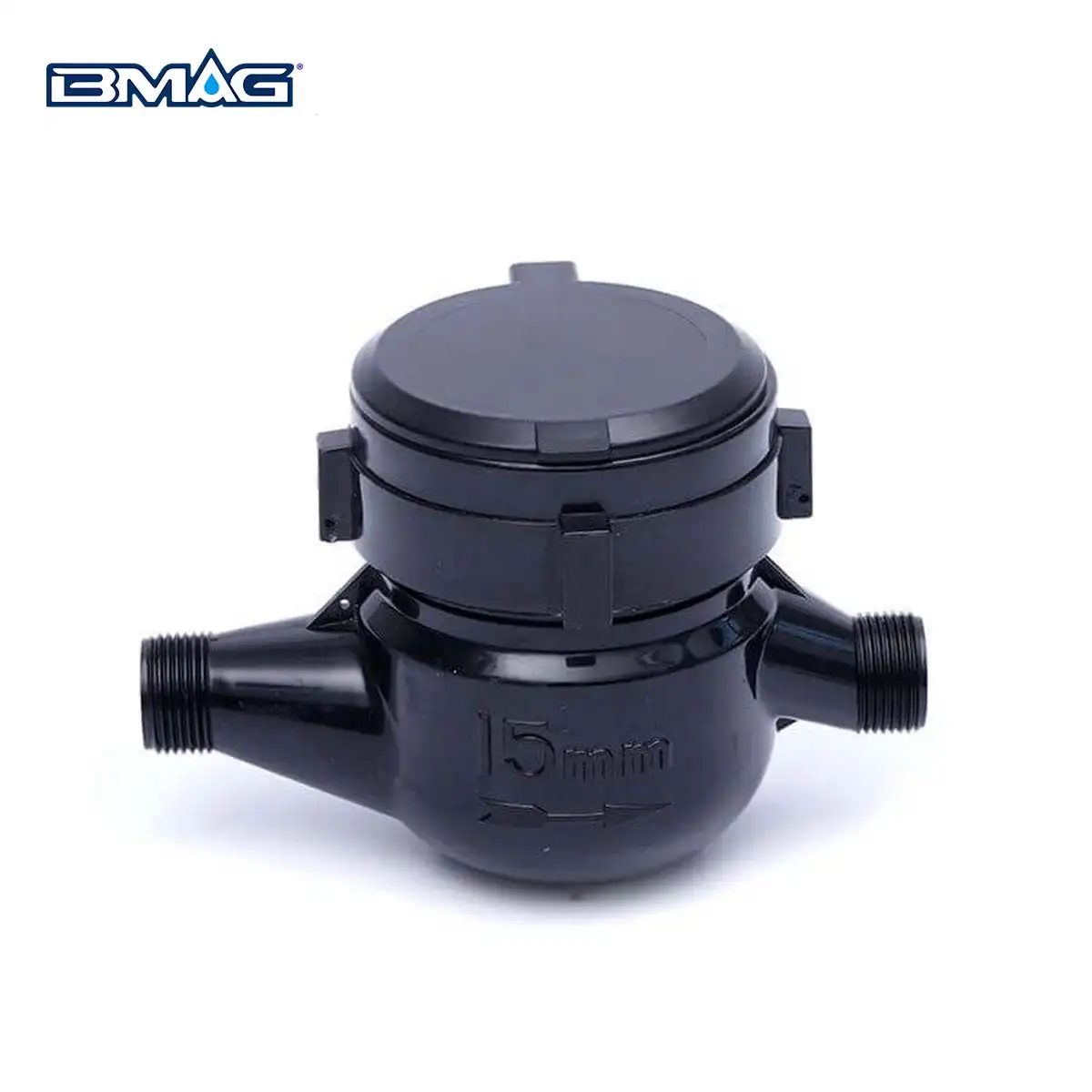

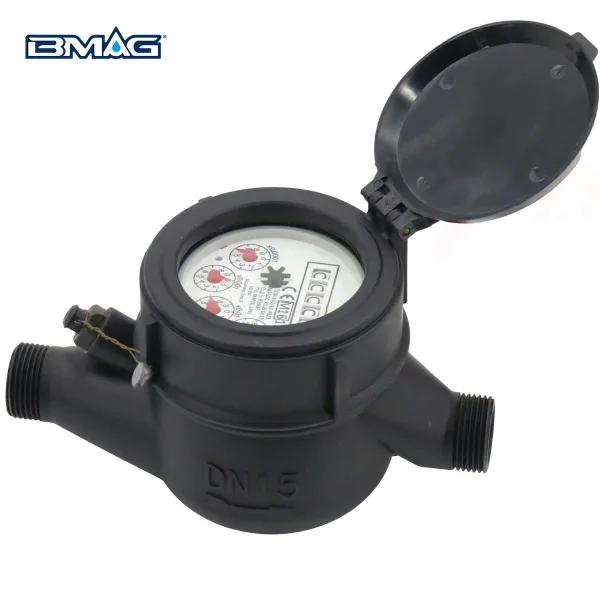

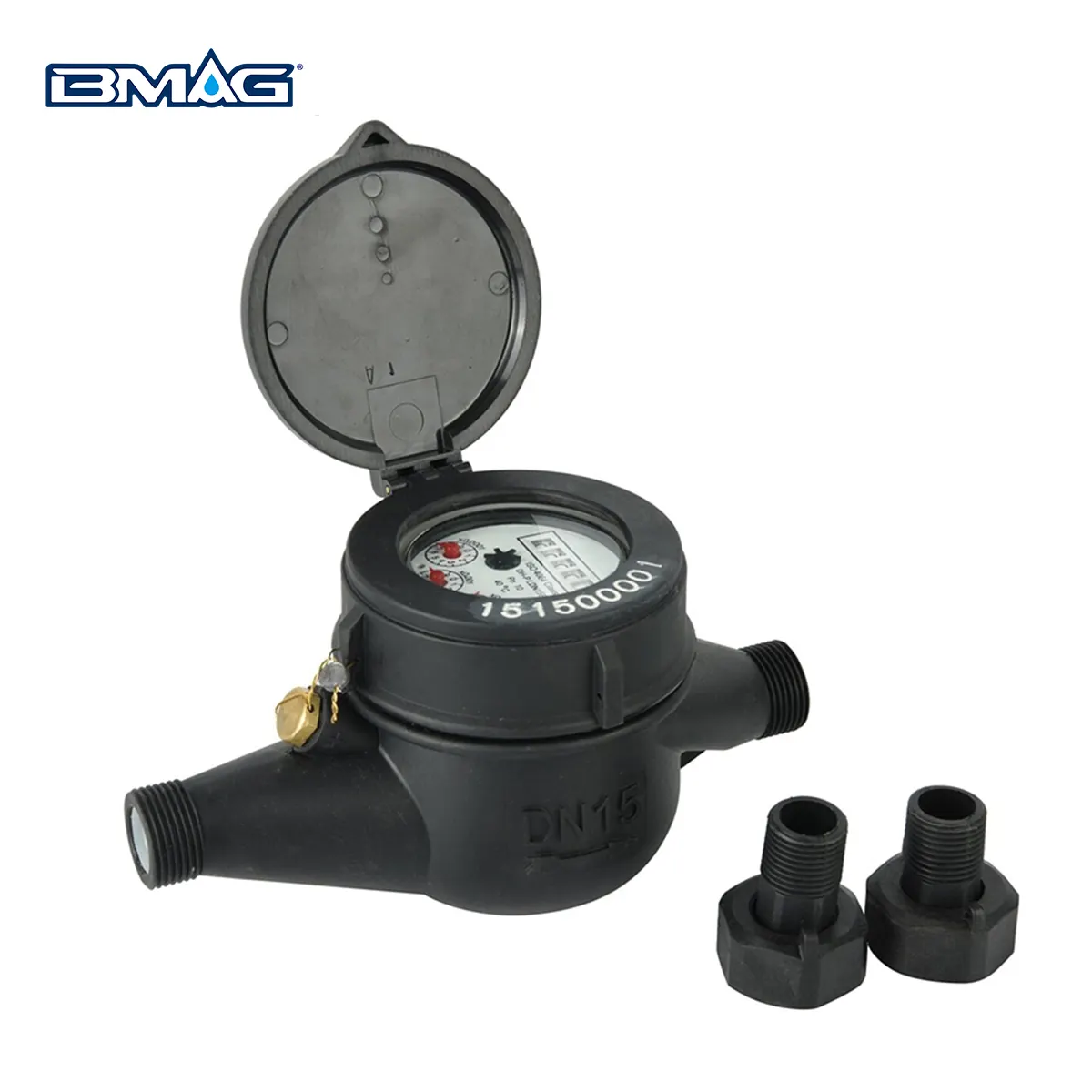

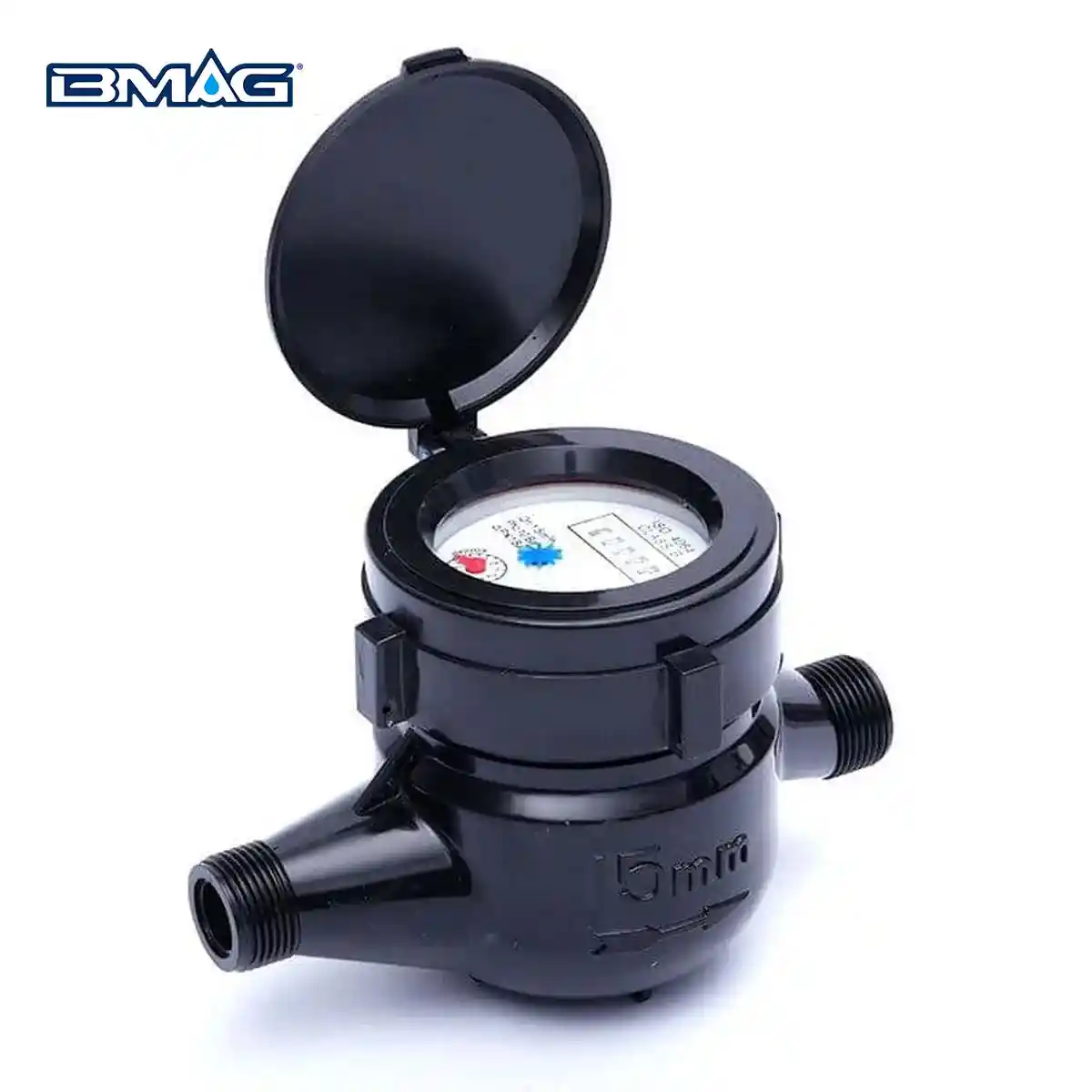

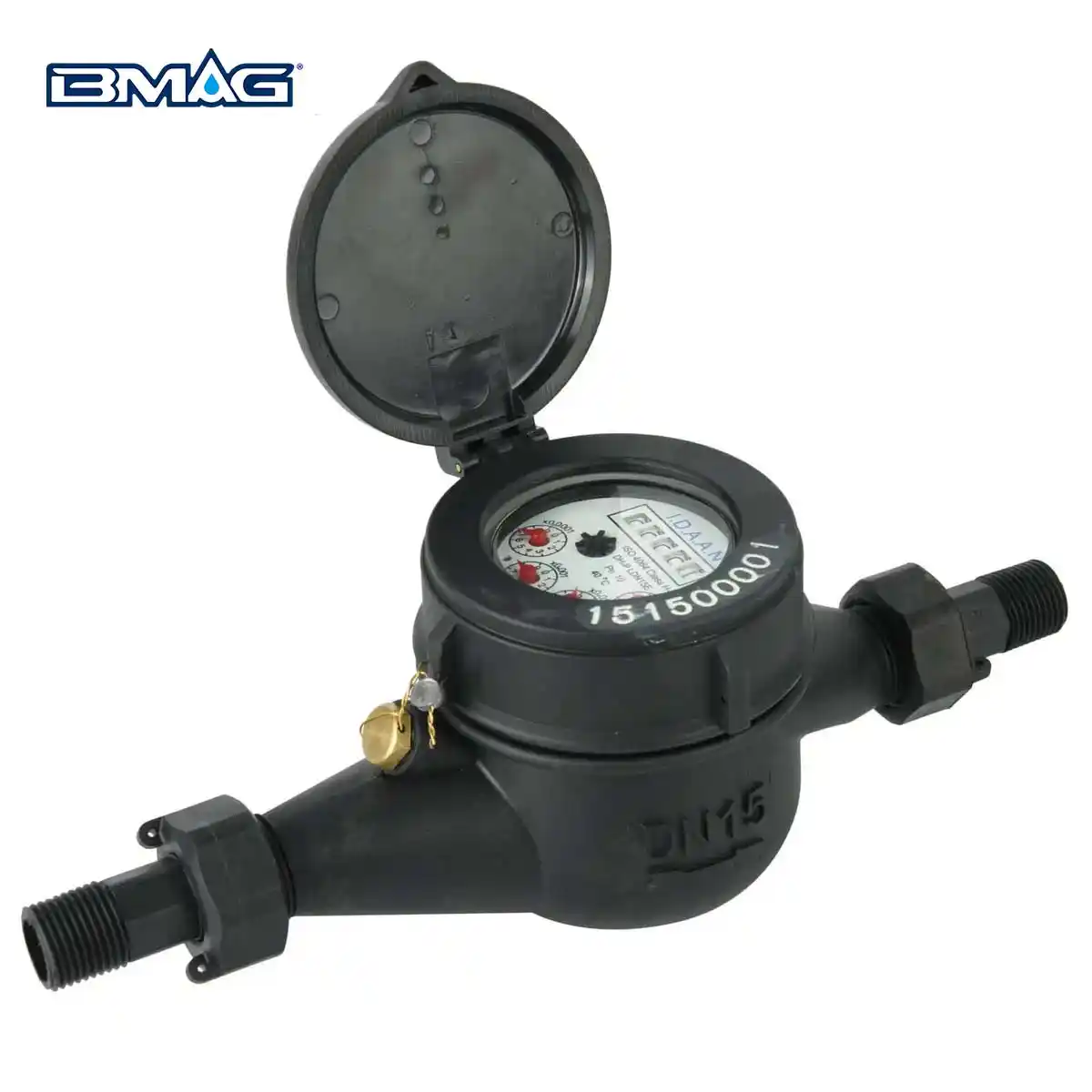

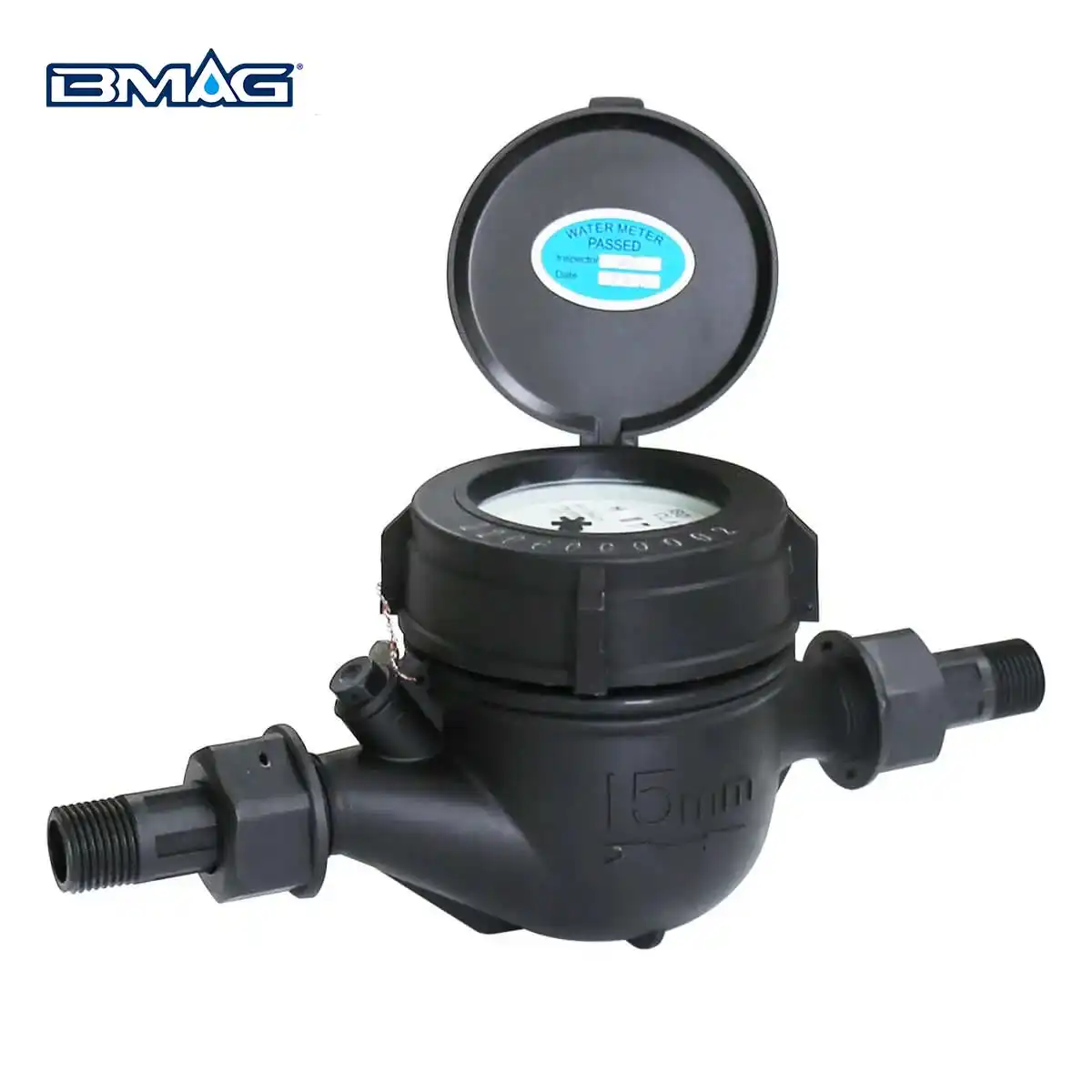

BMAG MJ-SDC-E Class B Plastic Multi jet Water Meter | R160 | IP68 Optional

BMAG MJ-SDC-E Class C Plastic Multi jet Water Meter R160

BMAG produces plastic multi jet water meter using high-quality materials and mature production processes, making our products highly competitive in both performance and price. Our meters not only comply with ISO 4064 standards but also achieve an IP68 waterproof rating. Additionally, they can be paired with a remote reading function, making them your optimal choice for reliable and efficient water measurement.

Due to our mature manufacturing processes, BMAG’s plastic water meters are highly competitive in terms of pricing and quality.

BMAG’s plastic water meters are made of high-strength synthetic materials that can withstand pressure changes, temperature fluctuations, and direct sunlight exposure without compromising their tightness, appearance, or metering accuracy.

Our plastic multi jet water meters are compliant with major international standards such as ISO 4064, AWWA, and ANSI. We also offer ODM customization services to support the water meter standards of various countries.

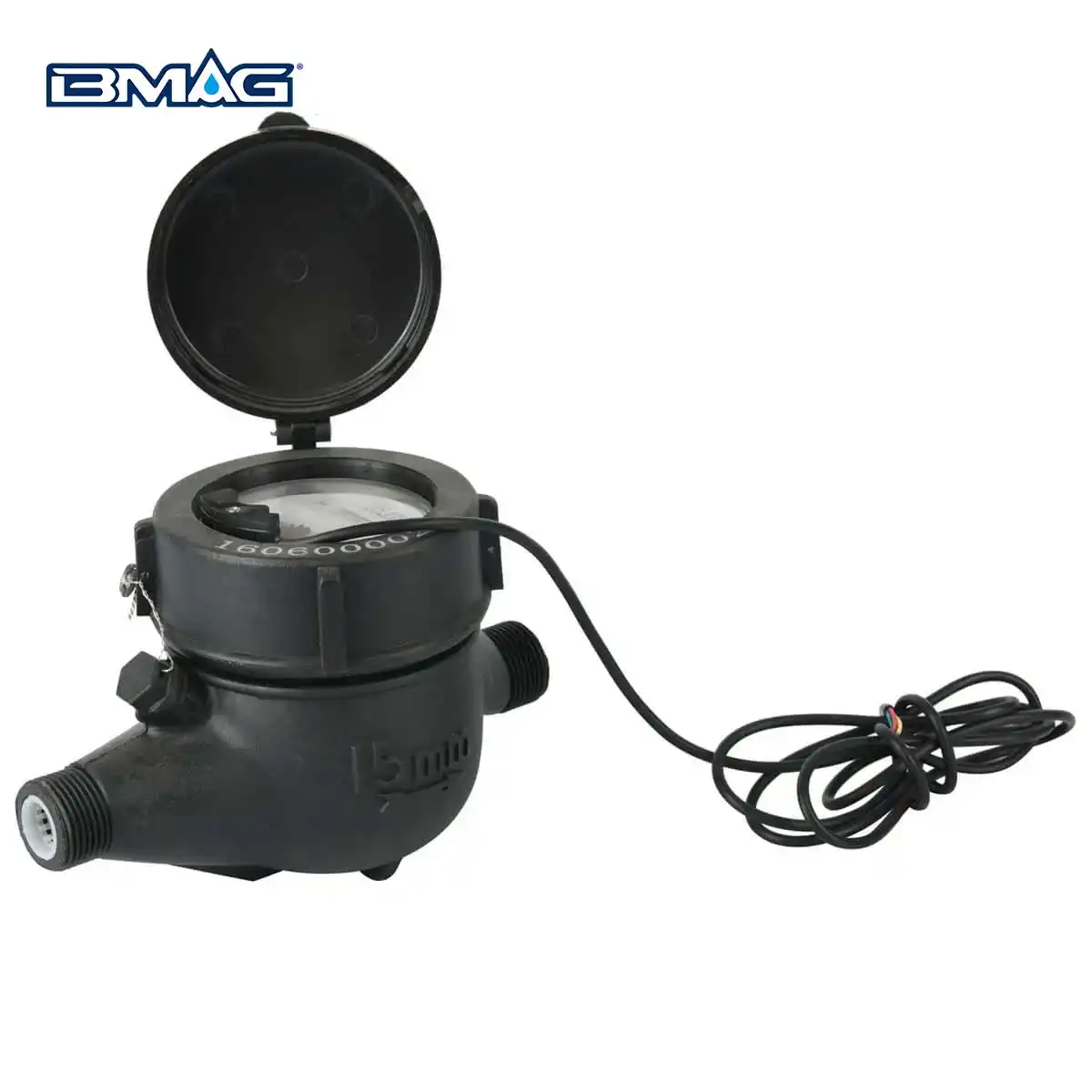

In addition, we can customize water meter products with IP68 waterproof ratings, as well as remote reading capabilities such as pulse output water meter, LoRawan water meter, and AMR water meter.

Specifications

• Plastic Material: GV-5H, PA66+GF30 , ABS, compliant with ISO 4064, NSF/ANSI 61, AWWA 701 standards for plastic water meters, suitable for potable water.
• Dial Lens مواد：High-Strength Glass – Fog-resistant, easy to read, UV-resistant.
• Dry Type Water Meter：The counter does not come into contact with water, leading to a longer service life and no fogging issues.
• دقت: R160, ensuring precise meter readings.
• Waterproof Seal: Copper-sealed mechanism achieving IP68 level dust and water resistance for enhanced durability.
• Low Flow Indicator：High Sensitivity, suitable for detecting minimal leaks.
• Anti-Magnetic Water Meter: Equipped with internal anti-magnetic rings to prevent magnetic interference and cheating, ensuring accurate and reliable readings.
• افت فشار: Excellent internal structure design to avoid vortices and turbulence, minimizing pressure loss.
• Dial：360° rotating, making installation and reading convenient.
• Flow Rate Units: Cubic Meters (m³)
• Maximum Reading：99999.9999 m³
• Minimum Scale: 0.0001 m³
• Accuracy Classes：Class B

Optional Features

• Sizes:
  • Nominal Diameter（DN）：DN15, DN20, DN25, DN32, DN40, DN50
  • Diameter（Inch）：1/2, 3/4″, 7/8”,1″, 1-1/4″, 1-1/2″, 2″
  • Length without coupler（mm）：165mm, 190mm, 260mm, 300mm
• Materials:
  • Brass: Lead Free Brass 87850
  • Bronze: Lead Free Bronze (C89833)
  • Cast Iron: GJS-500-7
  • Plastic: GV-5H, PA66+GF30 (Nylon 66 reinforced with 30% glass fiber), ABS
  • Stainless Steel: EU EN 1.4301 (304 Stainless Steel)
• Threads:
  • British Standard Pipe (BSP)
  • American Standard Threads (ANSI B1.20.1, NPT)
  • ISO 228
• Accuracy Classes: Class A, Class B, Class C
• Flow Rate Units: Cubic Meters (m³), Cubic Feet (ft³), Gallons (gal), Liters (L)
• Remote Communication:
  • LoRa
  • LoRaWAN
  • NB-IoT
  • GPRS
  • M-Bus
  • Electromagnetic Pulse
• Check Valve/ Non-return Valve: Optional. Control the direction of water flow and prevent backflow.
• Surface Coating: Electrostatic painted water meter body with Plastic Coating, Nickel Plating
• Dial Lens مواد: High-strength Glass, Plastic
• Mechanism: Plastic Sealed Mechanism, Copper/Stainless Steel Sealed Mechanism
• Accessories: Various complementary accessories

Water Meter Working Conditions

• Operating Temperature:
  • Cold Water Meter: 30°C (86°F), 50°C (122°F)
  • Hot Water Meter: 90°C (194°F)
• Maximum Working Pressure (P): 16 bar (PN16) / 1.6 MPa
• Mounting direction:Horizontal installation. Inclined or angle changes might reduce water meter’s accuracy.

Dial Plate Design (DN15, R160)

انطباق با استانداردها

• International Standard：ISO 4064 / OIML R49
• European standard：EN 14154 / MID 2004/22/EC / MID 2014/32/EU
• American Standard：NSF/ANSI 61 / NSF/ANSI 372 / ASTM F1390 / AWWA C700 / AWWA C701 / AWWA C705 / AWWA C706 / AWWA C708 / AWWA C712

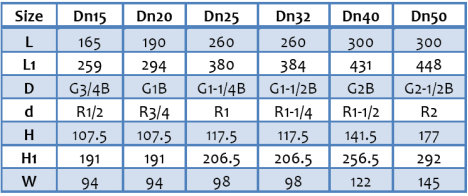

ابعاد

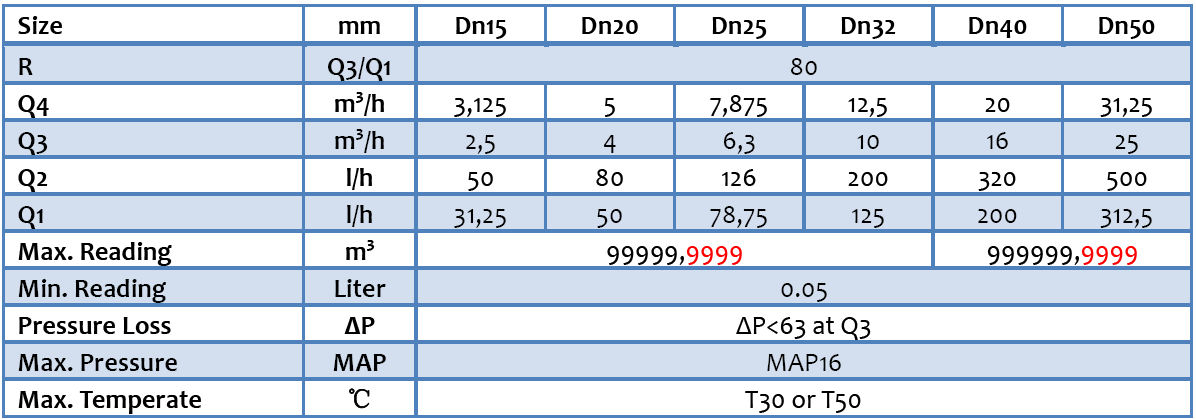

داده‌های فنی
