Stainless Steel Water Meter | Ship | Vessel | Marine
It is Multi jet dry type water meter. Produced in the versions for cold water (50C),it covers the size fromDN15 to DN20.
| پوشش | اختیاری |
|---|---|
| اتصال | رزوه BSP، رزوه NPT |
| اندازه | DN15-DN20 |
| نسبت | R80 |
| واحد اندازهگیری | فوت مکعب، متر مکعب، گالن، لیتر |
| مواد | Stainless Steel |

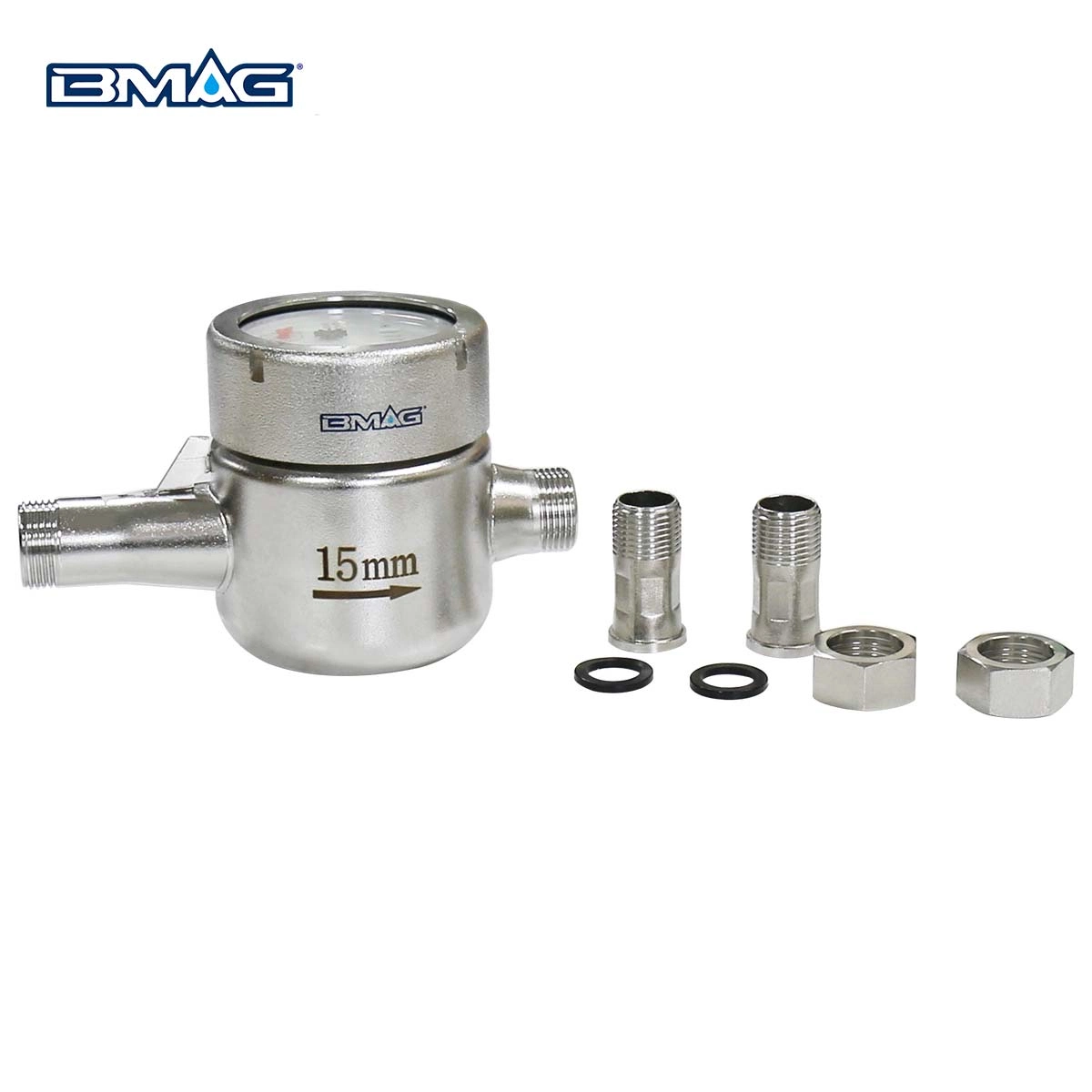

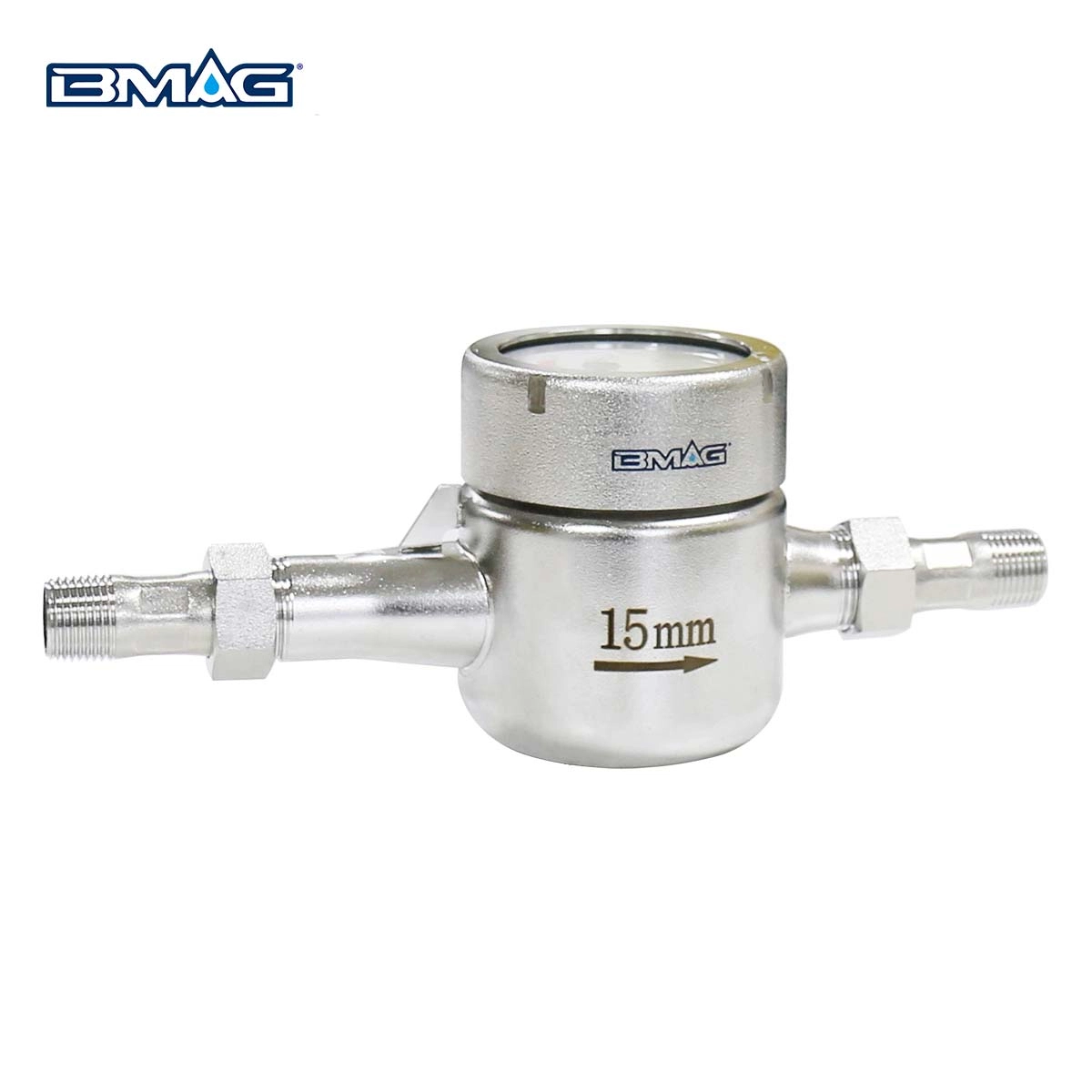

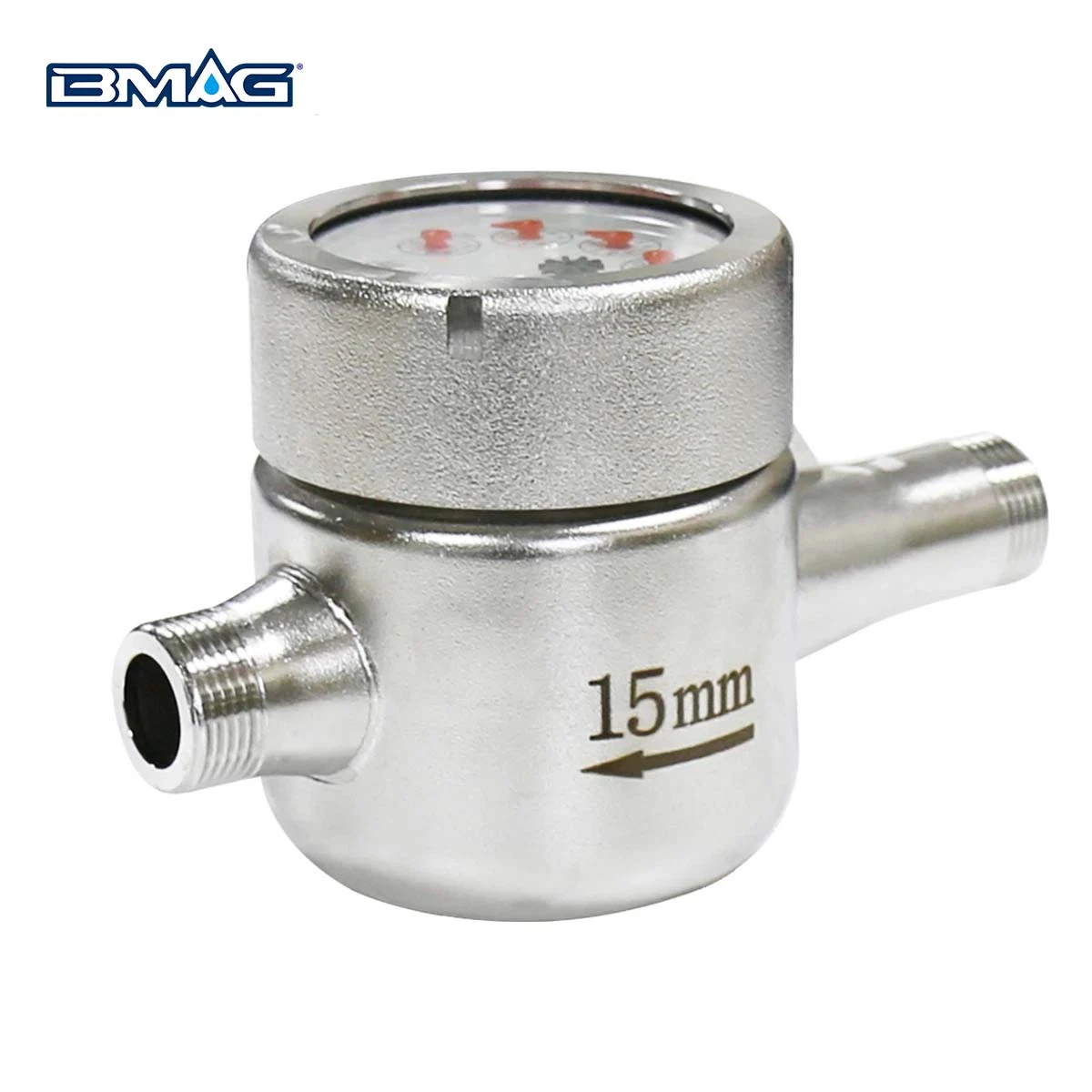

BMAG MJ-SDC Stainless Steel Water Meter
We use high-quality 304 stainless steel raw materials that comply with the EU EN 1.4301 standard, fully meeting the sanitary and safety requirements for drinking water systems.
Due to the excellent stability of the material, stainless steel water meters are suitable for use in humid and corrosive environments. They are primarily applied in the pharmaceutical, food, marine, Cruise Ship, Bulk Carrier, Vessel, LNG Carrier, wastewater treatment, and residential sectors.
In particular, the marine industry requires stainless steel materials for water meters, leading to the development of specialized stainless steel ship water meters for marine applications.
Stainless steel water meters are currently the most stable water meters available on the market.
Stainless Steel Water Meter Feature
- Multi jet working principle assures a long service time
- Low pressure loss, high sensitivity at initial flow
- Surface pickling process
- محافظت در برابر میدانهای مغناطیسی خارجی
- Non return valve and filter available
- Suitablefor potable water, cold water up to 50°C
- Almost no maintenance • Vacuumed mechanism
Multi Jet Water Meter Working Conditions
- Temperature: Available for cold water 0-50 ℃
- فشار: ≤1.6MPa (16bars)

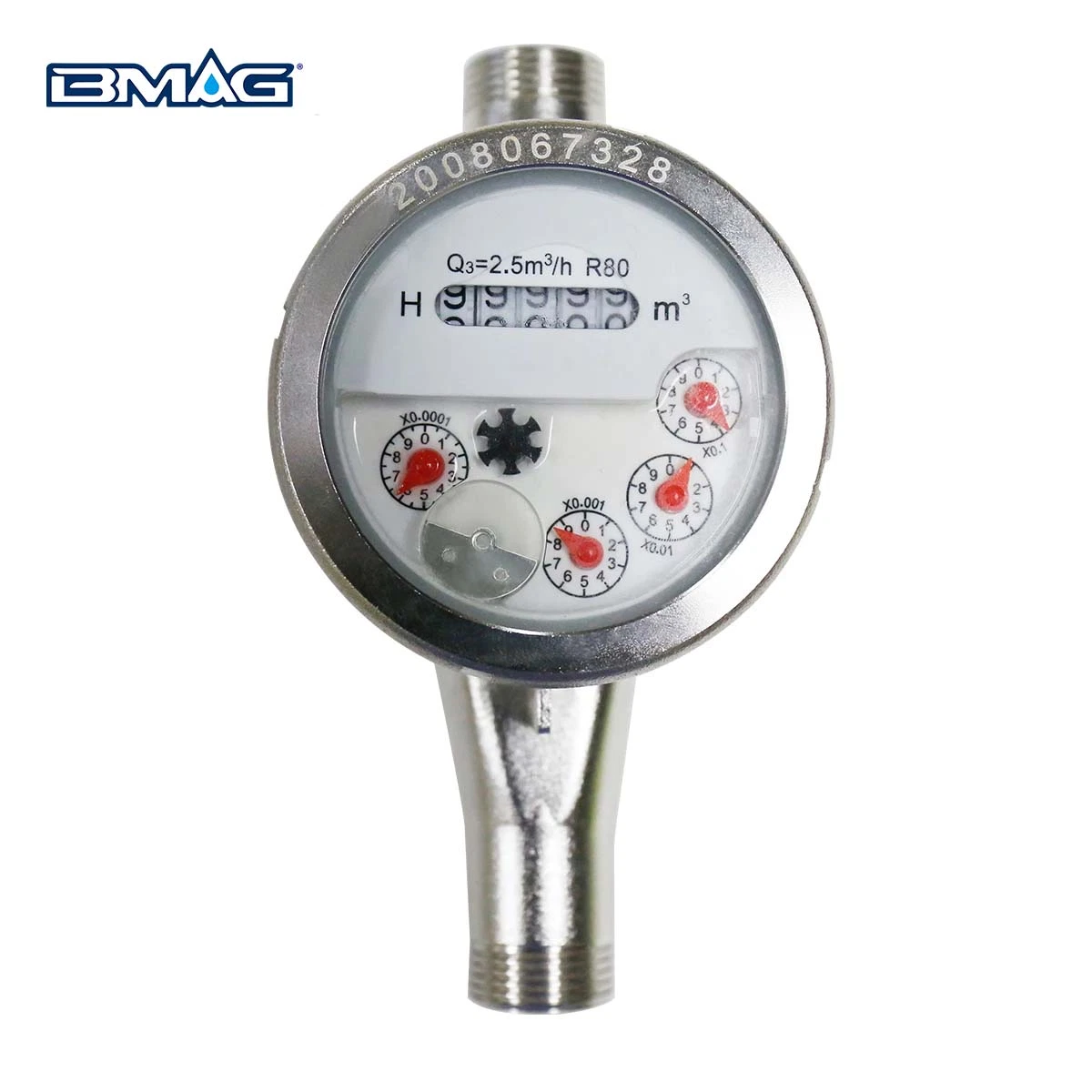

Dial Plate Design (DN15)
انطباق با استانداردها
- ISO4064:2014/OIML R49
- دستورالعمل 2014/32/EU در مورد ابزارهای اندازهگیری
- استاندارد اروپایی EN14154
ابعاد
دادههای فنی
