R400 Plastic Volumetric Water Meter
R400 Plastic Volumetric Water Meter offer a reliable and cost-effective solution for measuring water consumption in various settings, providing accurate data for billing, monitoring, and managing water resources.
| Pulse | اختیاری |
|---|---|
| مواد | Plastic |
| اندازه | DN15-DN40 |
| واحد اندازهگیری | فوت مکعب، متر مکعب، گالن، لیتر |
جزئیات محصول

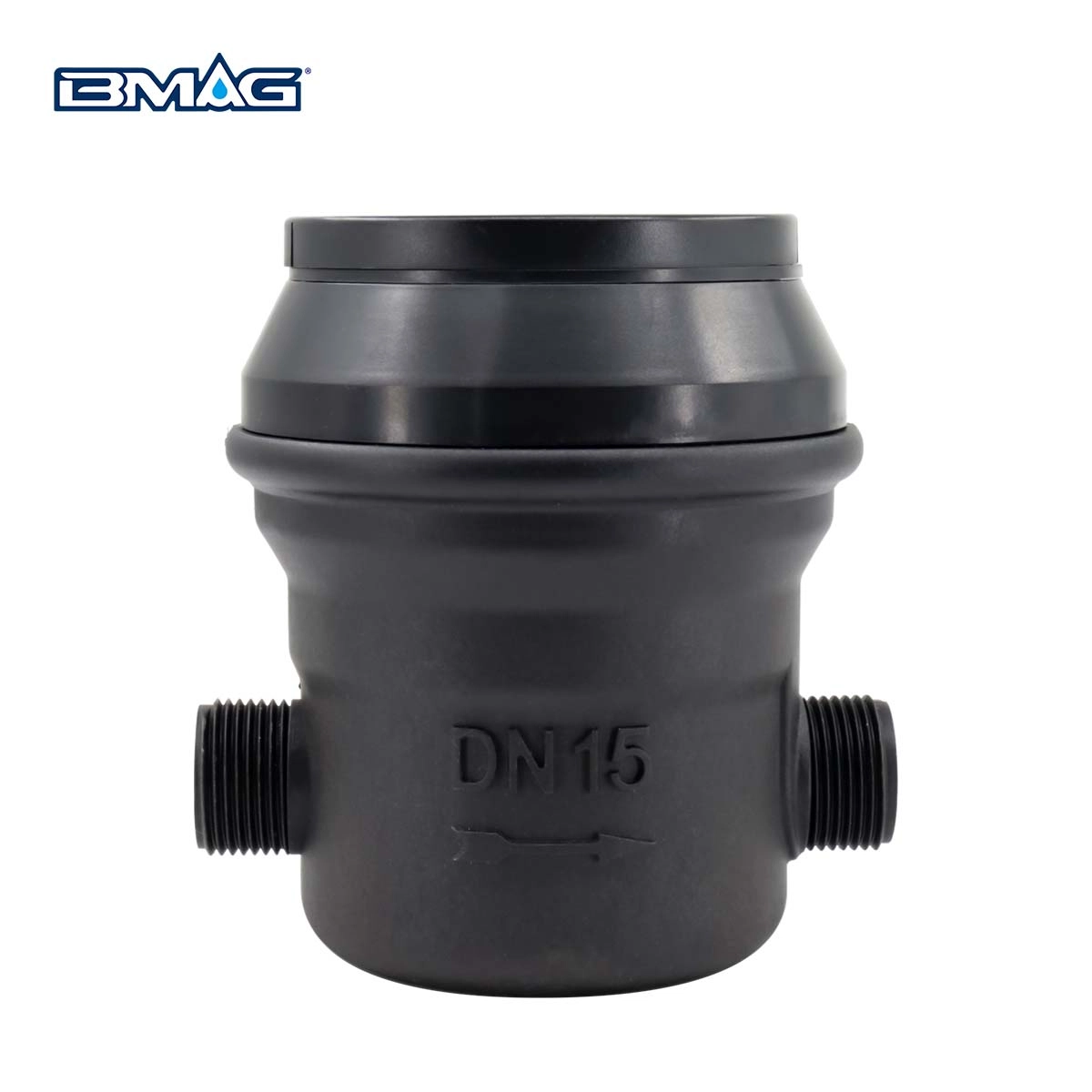

BMAG PD-SDC E8 R400 Plastic Volumetric Water Meter
Volumetric Water Meter Feature
- R400 Plastic Volumetric Water Meter are all the components are produced with high resistance and quality materials, technical plastics, and stainless steel parts.

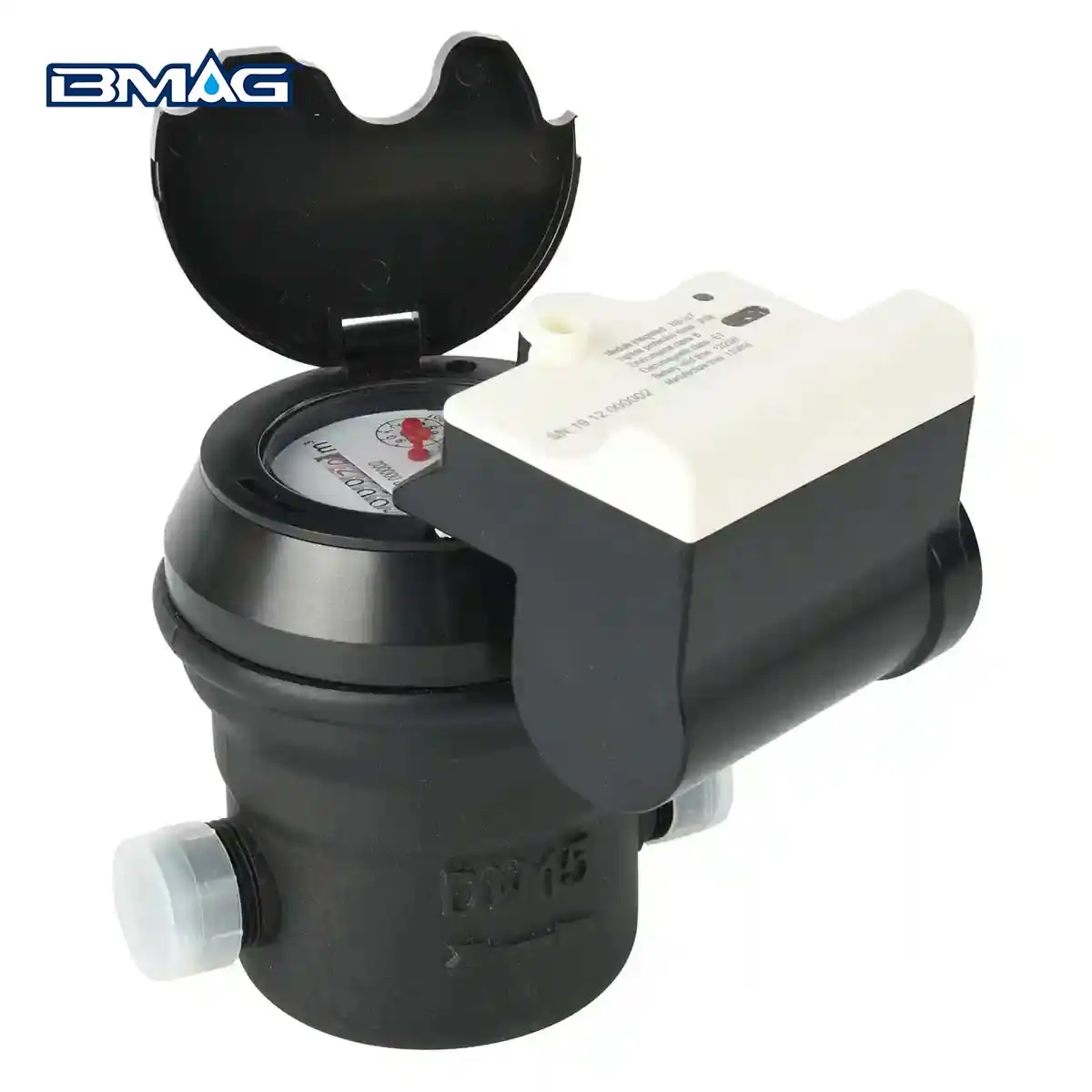

- The ROTARY indicator register for the most comfortable reading position is 8 Rollers and 1 Pointer, with pulse output pre-equipped at 10 liters/pulse.
- Suitable for any position installation.

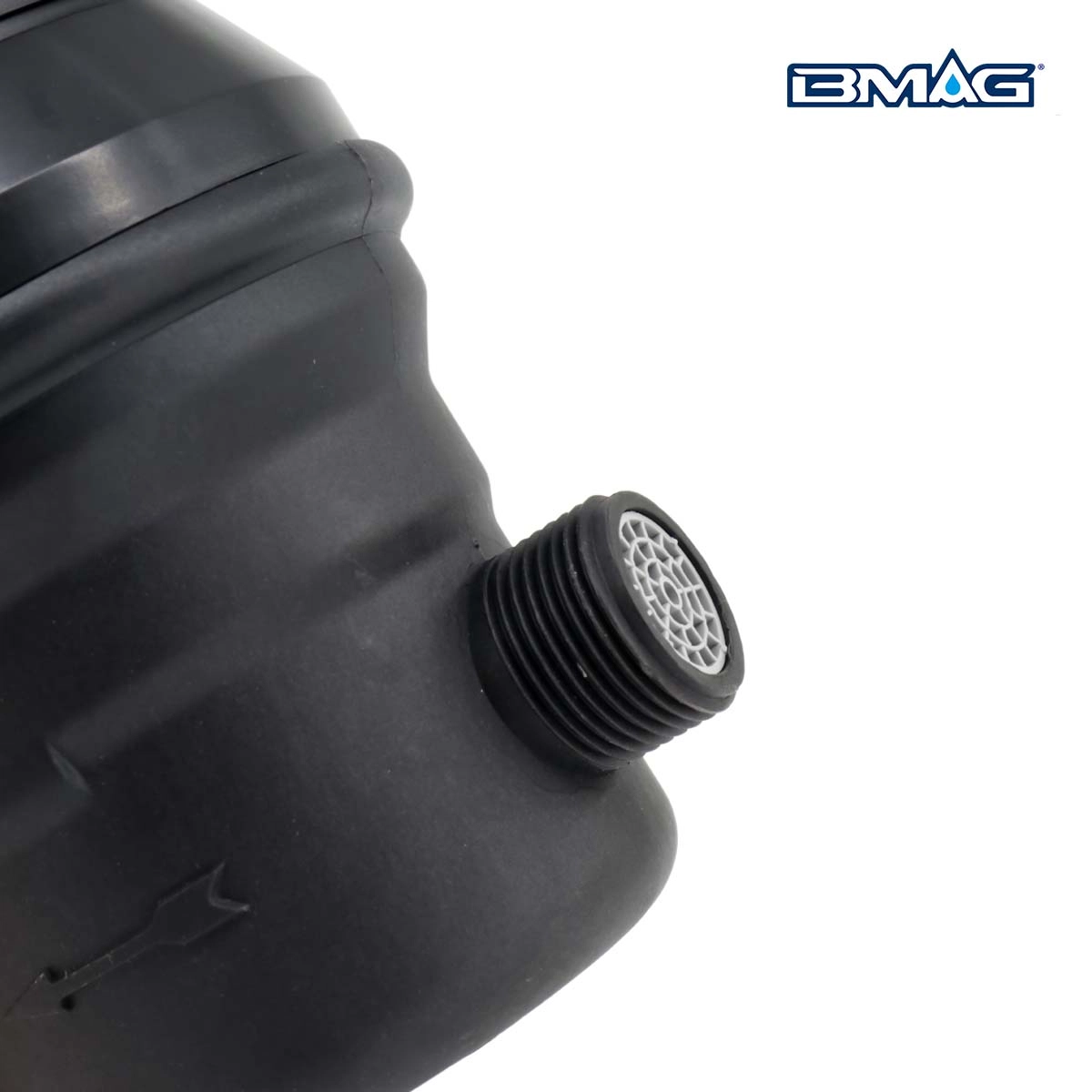

- The extra inlet filter at the inlet of the meter body permits cleaning it without breaking the metrological seal.
- Non-Return Valve to avoid the reserve flow Rate AS OPTION.
- Cold water meter under current standard for lower than 30℃(T30), but PD-SDC- E8 can be used safely in water temperature up to 50℃(T50).
Specifications
- Plastic: GV-5H, PA66+GF30 , ABS, compliant with ISO 4064, NSF/ANSI 61, AWWA 701 standards for plastic water meters, suitable for potable water.
- Dial Lens مواد： High-Strength Glass – Fog-resistant, easy to read, UV-resistant.
- Dry Type Water Meter： The counter does not come into contact with water, leading to a longer service life and no fogging issues.
- دقت: R160, ensuring precise meter readings.
- Waterproof Seal: Copper-sealed mechanism achieving IP68 level dust and water resistance for enhanced durability.
- Low Flow Indicator： High Sensitivity, suitable for detecting minimal leaks.
- Anti-Magnetic Water Meter: Equipped with internal anti-magnetic rings to prevent magnetic interference and cheating, ensuring accurate and reliable readings.
- افت فشار: Excellent internal structure design to avoid vortices and turbulence, minimizing pressure loss.
Volumetric Water Meter Working Conditions
- Cold Water Meter: 30°C (86°F), 50°C (122°F)
- Hot Water Meter: Up to 90°C (194°F)
- فشار: ≤1.6MPa (16bars)
Dial Plate Design (R400/R315/R250/R160)
انطباق با استانداردها
- ISO4064:2014/OIML R49
- دستورالعمل 2014/32/EU در مورد ابزارهای اندازهگیری
- استاندارد اروپایی EN14154
ابعاد
دادههای فنی
دقت
From Q1 inclusive up to but excluding Q2 is ±5%;
From Q2 inclusive up to and including Q4 is ±2% for T30 and ±3% for T50
