Plastic 45° Read Dial Volumetric Water Meter | 360° Rotating Dial

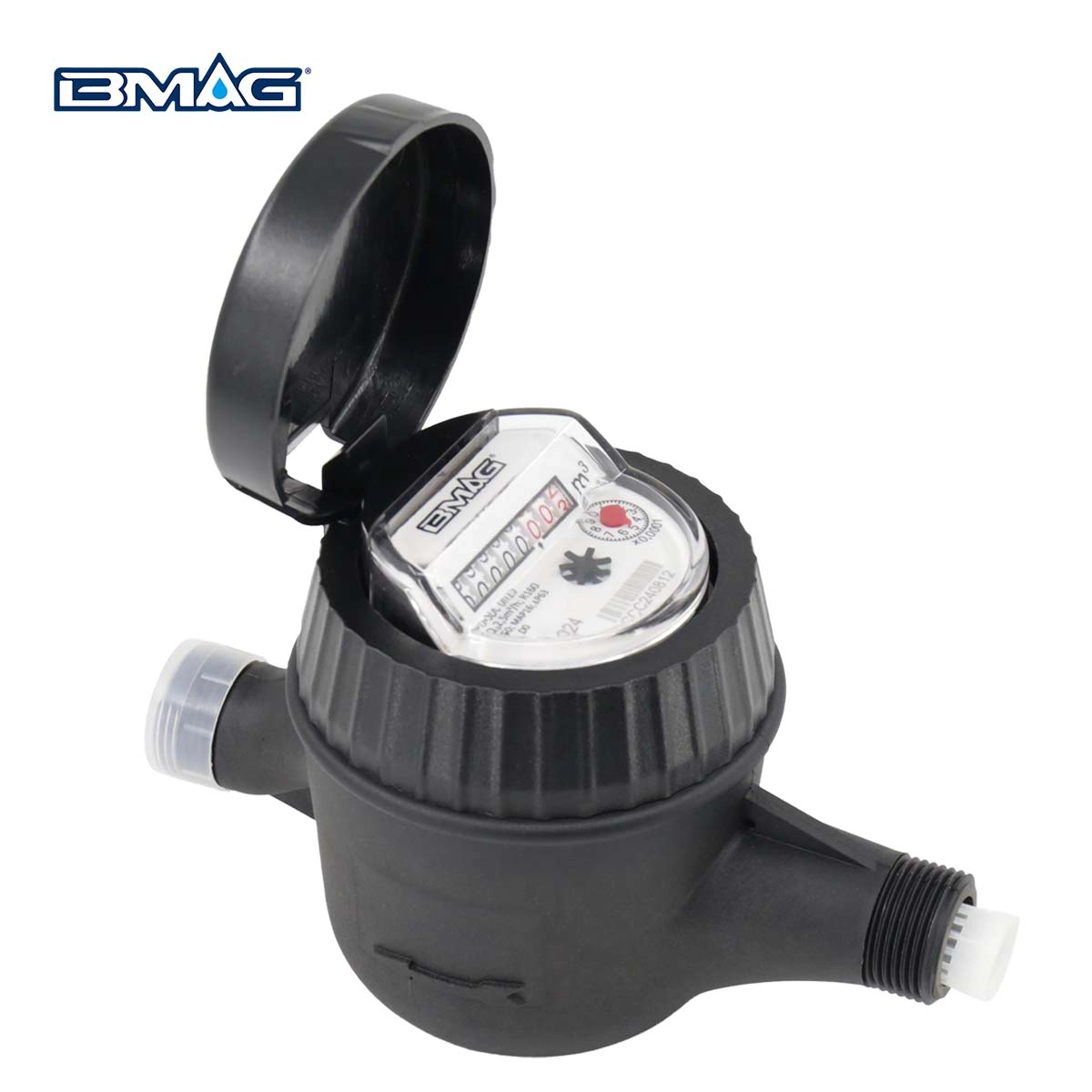

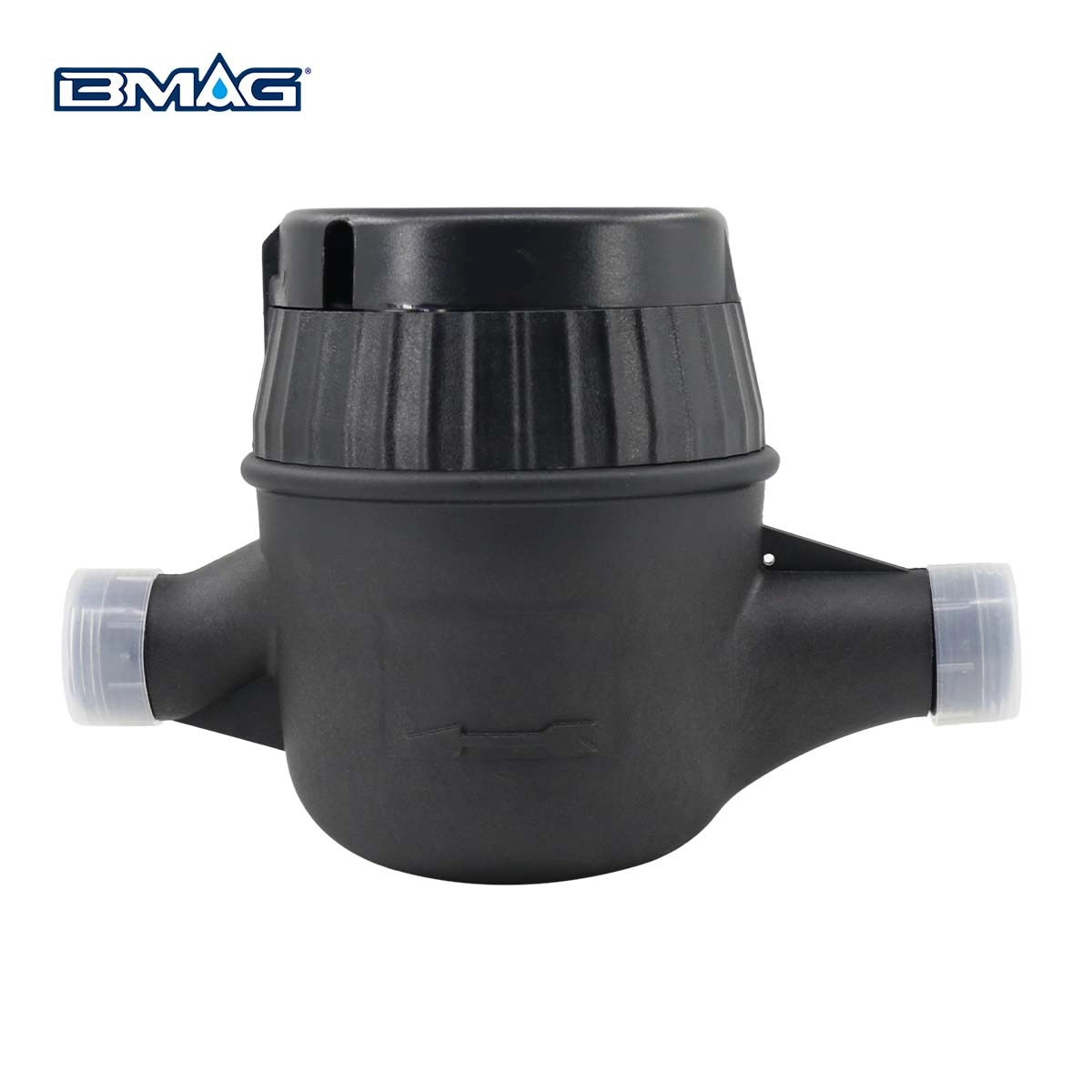

Plastic 45° Read Dial Volumetric Water Meter

Plastic 45° Read Dial Volumetric Water Meter

Easy reading: 45° Read Dial
Plastic Material: GV-5H, PA66+GF30, ABS, compliant with ISO 4064, NSF/ANSI 61, AWWA 701 standards for plastic water meters, suitable for potable water.
Dial Lens Material: High-Strength Glass – Fog-resistant, easy to read, UV-resistant.
Dry Type Water Meter： The counter does not come into contact with water, leading to a longer service life and no fogging issues.
دقت: R160, ensuring precise meter readings.
Waterproof Seal: Copper-sealed mechanism achieving IP68 level dust and water resistance for enhanced durability.
Low Flow Indicator: High Sensitivity, suitable for detecting minimal leaks.
Anti-Magnetic Water Meter: Equipped with internal anti-magnetic rings to prevent magnetic interference and cheating, ensuring accurate and reliable readings.
افت فشار: Excellent internal structure design to avoid vortices and turbulence, minimizing pressure loss.
Dial: 360° rotating, making installation and reading convenient.

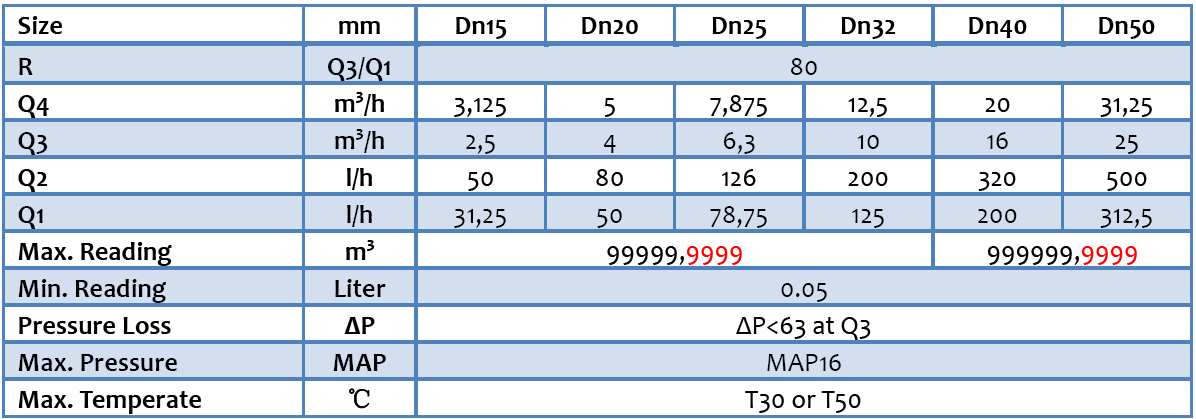

Flow Rate Units: Cubic Meters (m³)
Maximum Reading: 99999.9999 m³
Minimum Scale: 0.0001 m³
Accuracy Classes: Class B

Sizes:
- Nominal Diameter(DN)：DN15, DN20, DN25, DN32, DN40, DN50
- Diameter(Inch)： 1/2″,3/4″,1″, 1-1/4″, 1-1/2″, 2″
- Length without coupler(mm)：165mm, 190mm, 260mm, 300mm
Materials:
- Plastic: GV-5H, PA66+GF30 (Nylon 66 reinforced with 30% glass fiber), ABS
Threads:
- British Standard Pipe (BSP)
- American Standard Threads (ANSI B1.20.1, NPT)
- ISO 228
Accuracy Classes: Class A, Class B, Class C
Flow Rate Units: Cubic Meters (m³), Cubic Feet (ft³), Gallons (gal), Liters (L)
Remote Communication:
- LoRa
- LoRaWAN
- NB-IoT
- GPRS
- M-Bus
- Electromagnetic Pulse
Check Valve/ Non-return Valve: Optional. Control the direction of water flow and prevent backflow.
Surface Coating: Electrostatic painted water meter body with Plastic Coating, Nickel Plating
Dial Lens مواد: High-strength Glass, Plastic
Mechanism: Plastic Sealed Mechanism, Copper/Stainless Steel Sealed Mechanism
Accessories: Various complementary accessories

Operating Temperature:
- Cold Water Meter: 30°C (86°F), 50°C (122°F)
- Hot Water Meter: 90°C (194°F)
Maximum Working Pressure (P): 16 bar (PN16) / 1.6 MPa
Mounting direction: Horizontal installation. Inclined or angle changes might reduce the water meter’s accuracy.
