BMAG PME Lead Free Brass Water Meter

BMAG’s lead free brass water meter have gained immense popularity in the North American region, particularly in the United States and Canada.  These water meters are designed to meet the stringent requirements of the drinking water industry, making them a trusted choice for residential, commercial, and industrial applications.  The use of lead free bronze C87850 or C89833 material ensures that these water meters comply with the highest safety standards, providing peace of mind to end-users.

BMAG’s water meters are engineered to deliver exceptional performance and versatility.  Designed to meet the AWWA C708 standard, these meters can accurately measure water consumption in gallons, cubic and litres meters, , making them a versatile solution for a wide range of applications.  The meters’ ability to provide pulse output further enhances their functionality, allowing for seamless integration with various monitoring and control systems.  BMAG’s commitment to quality and compliance is evident in the NSF certification obtained for these water meters, ensuring that they meet the rigorous standards set by the National Sanitation Foundation.

Water customers in North America have widely adopted BMAG’s multi-jet water meters across both residential and commercial sectors.  These meters are widely used in underground and in-water applications, showcasing their durability and suitability for diverse environments.  The lead free brass construction of BMAG’s water meters not only ensures compliance with environmental regulations but also provides long-lasting performance, minimizing the need for frequent maintenance or replacement.  The versatility and reliability of these water meters have made them a preferred choice among North American water utilities, property managers, and industrial facilities.

NSF Approved Multi Jet Water Meter Feature

• It is IMPELLER (turbine) water meter with dry type register for residential application with sizes from 5/8″ to 2″
• Meet to AWWA C708 with NSF-61 certification

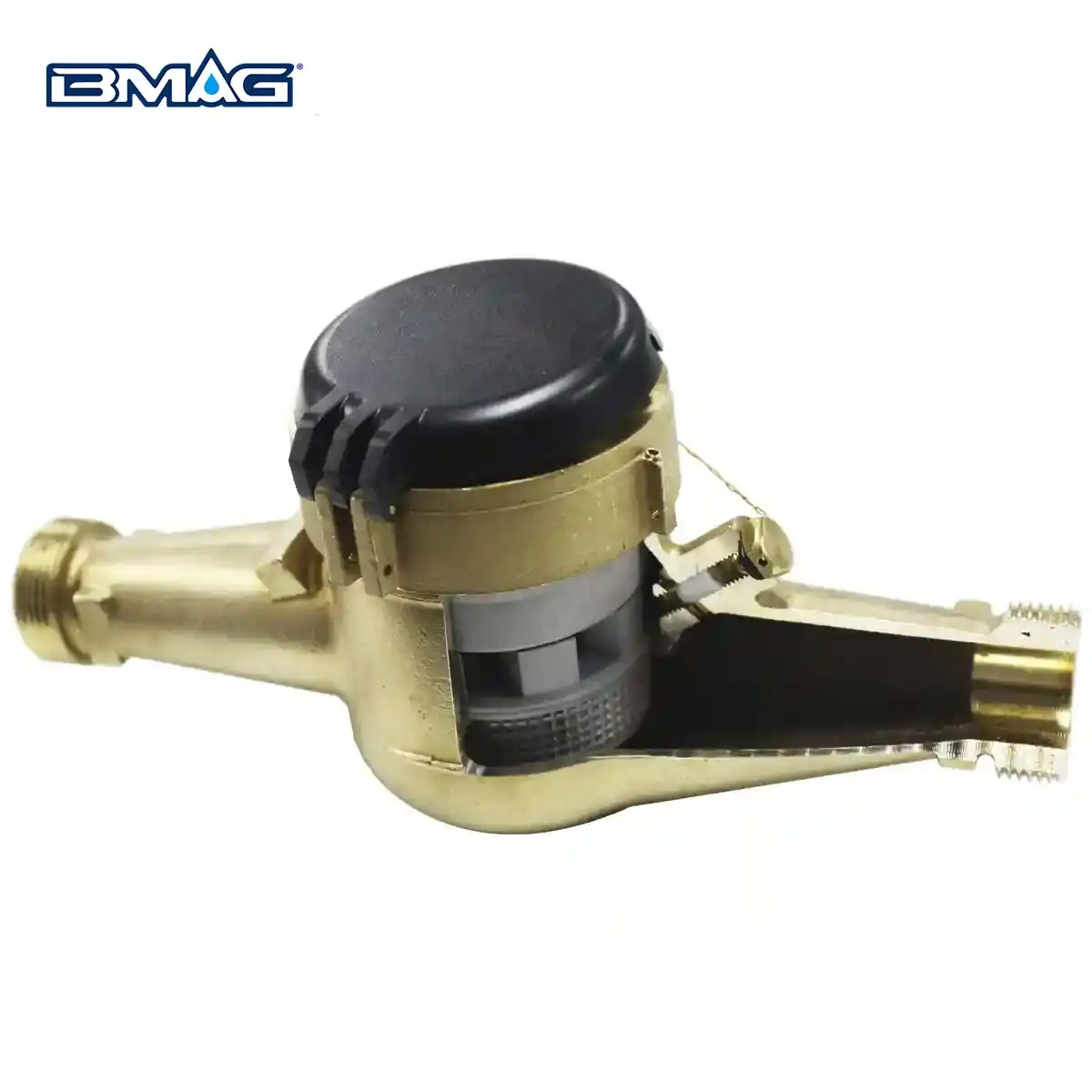

• It is a top loaded Water Meter consists of three basic components: main case, measuring chamber and a meter cover.
• All the Materials in contact with water, consciously selected by the known resistance to corrosion
• The body without coating and Couplings made by lead free bronze C87850 (ECO brass alloy)
• Suitable for potable water, 105F for cold water,160F for hot water
• The Impeller is the only moving parts in contact with water permitting the most reliable
• Extra filter at the inlet of the meter body, and non return valve at the outlet of the body as option
• محافظت در برابر میدان‌های مغناطیسی خارجی
• Copper can register vision with IP68 protection
• Almost no maintenance • Vacuumed mechanism

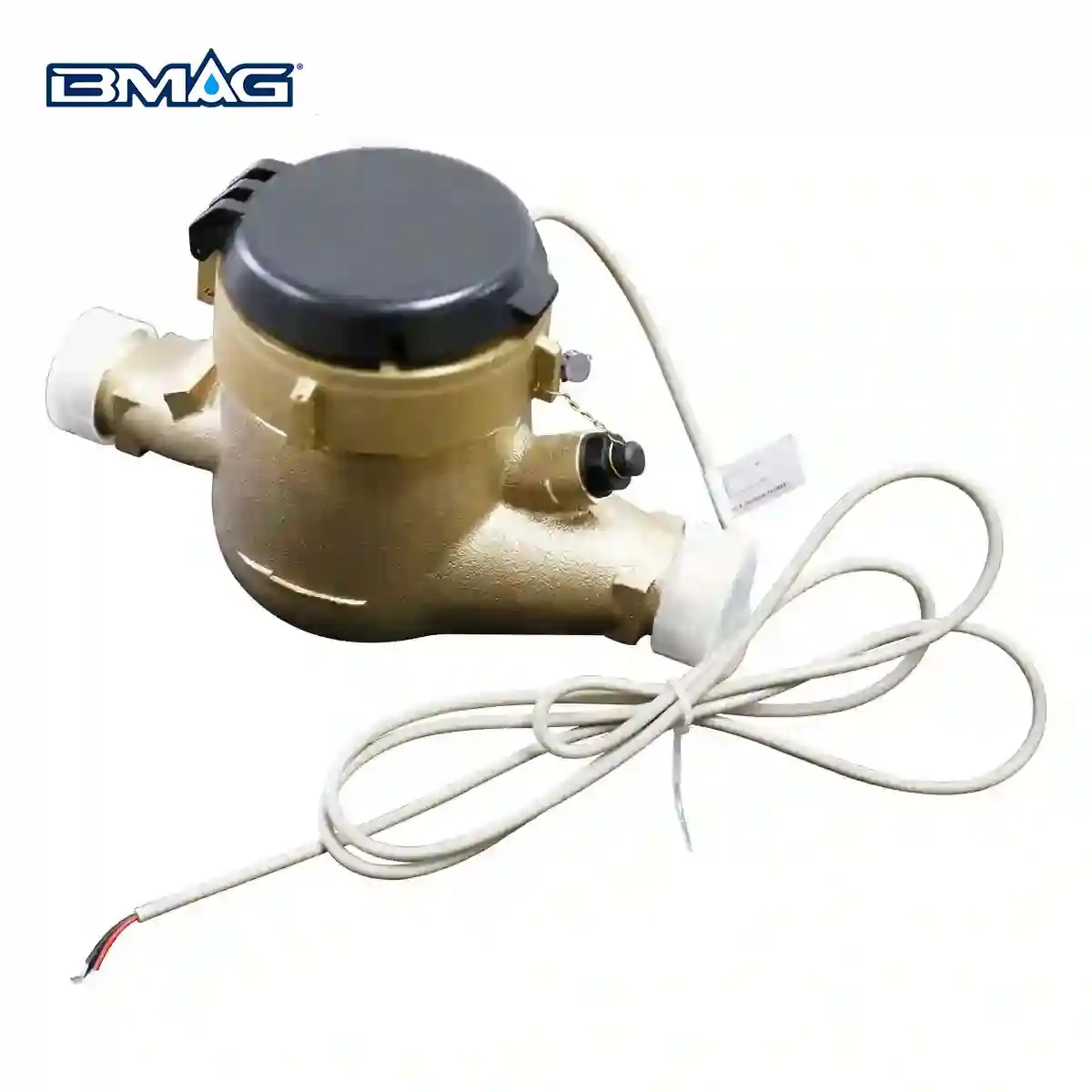

Pulse Output

The multi-jet water meter with AWWA standard is enable to pre-equipped or install with pulse output

• The Pulse output device consists of a plastic housing with Reed Switch, and 1,5 m cable with 2 cores in Red and Black
• Option with 2 reed switches and 1.5 m cable with 3 cores in Red, Black and Blue
• Electric Data: Vmax=24AC/DC, Imax=0.01A
• Capacity of the Pulse output or Pulse output pre-equipped

Multi Jet Water Meter Working Conditions

• Temperature: 105F for cold water,160F for hot water
• Working Pressure: 150psi

Dial Plate Design

انطباق با استانداردها

• AWWA C708 for Single jet water meter

ابعاد

داده‌های فنی
