R400 Volumetric Water Meter
High-quality R400 Volumetric Water Meter.
| Pulse | اختیاری |
|---|---|
| مواد | Plastic |
| اندازه | DN15-DN40 |
| واحد اندازهگیری | فوت مکعب، متر مکعب، گالن، لیتر |
جزئیات محصول

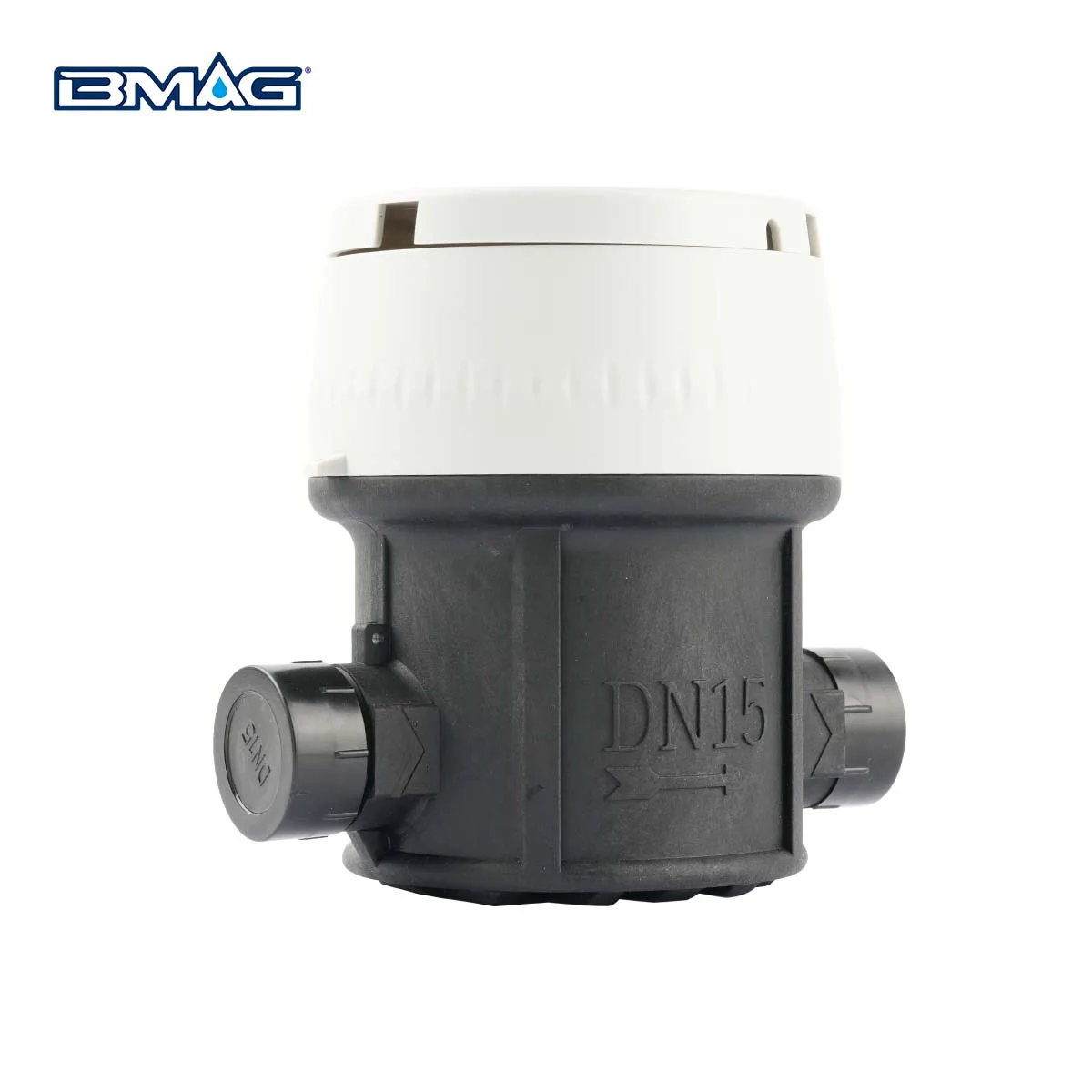

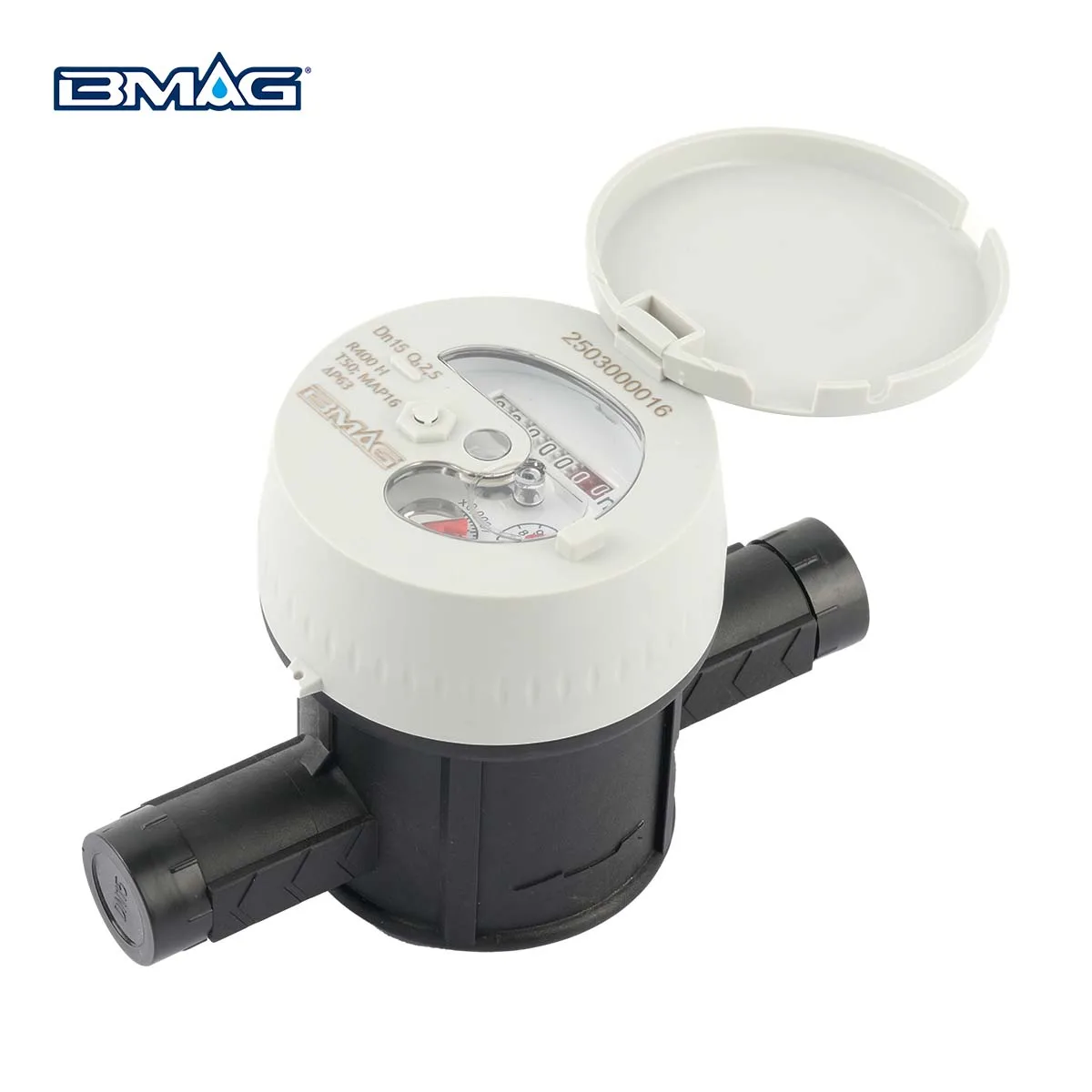

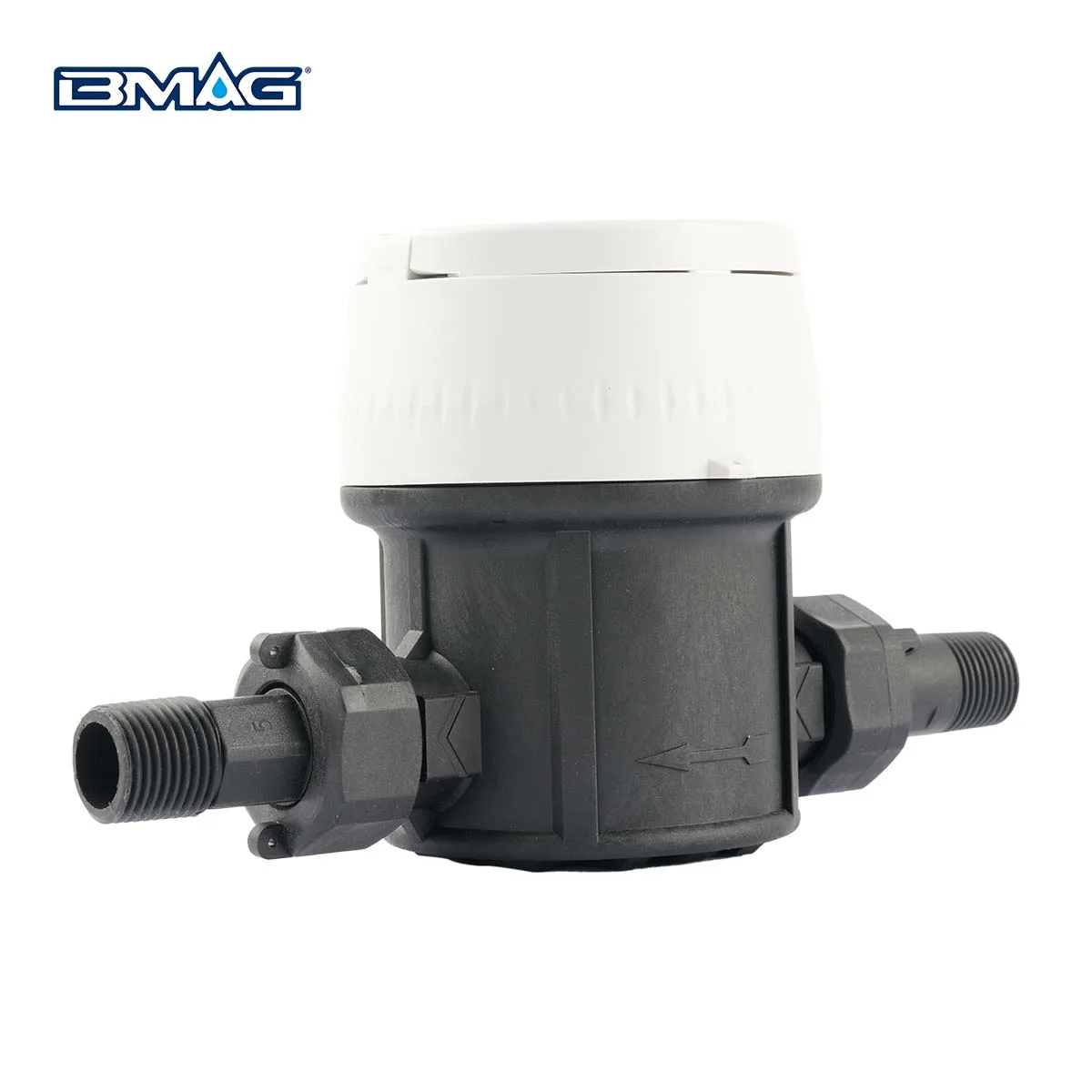

LHC-P R400 Volumetric Water Meter
- R400 Volumetric Water Meter is all the components are produced with high resistance and quality materials, technical plastics, and stainless steel parts.
- Convenient to install the intelligent remote transmission module.
- The ROTARY indicator register for the most comfortable reading position is 8 Rollers and 1 Pointer.
- The extra inlet filter is at the inlet of the meter body.
- Non-Return Valve to avoid the reserve flow Rate AS an option.
- water temperature up to 50℃( 122°F).
Specifications
- Plastic: GV-5H, PA66+GF30% , ABS, compliant with ISO 4064, NSF/ANSI 61, AWWA 701 standards for plastic water meters, suitable for potable water.
- Dial Lens Material: High-Strength Glass – Fog-resistant, easy to read, UV-resistant.
- Dry Type Water Meter: The counter does not come into contact with water, leading to a longer service life and no fogging issues.
- دقت: R400, ensuring precise meter readings.
- Waterproof Seal: Copper-sealed mechanism achieving IP68 level dust and water resistance for enhanced durability.
- Low Flow Indicator: High Sensitivity, suitable for detecting minimal leaks.
- Anti-Magnetic Water Meter: Equipped with internal anti-magnetic rings to prevent magnetic interference and cheating, ensuring accurate and reliable readings.
- افت فشار: Excellent internal structure design to avoid vortices and turbulence, minimizing pressure loss.
R400 Volumetric Water Meter Working Conditions
- Cold Water Meter: 30°C (86°F), 50°C (122°F)
- Hot Water Meter: Up to 90°C (194°F)
- فشار: ≤1.6MPa (16bars)

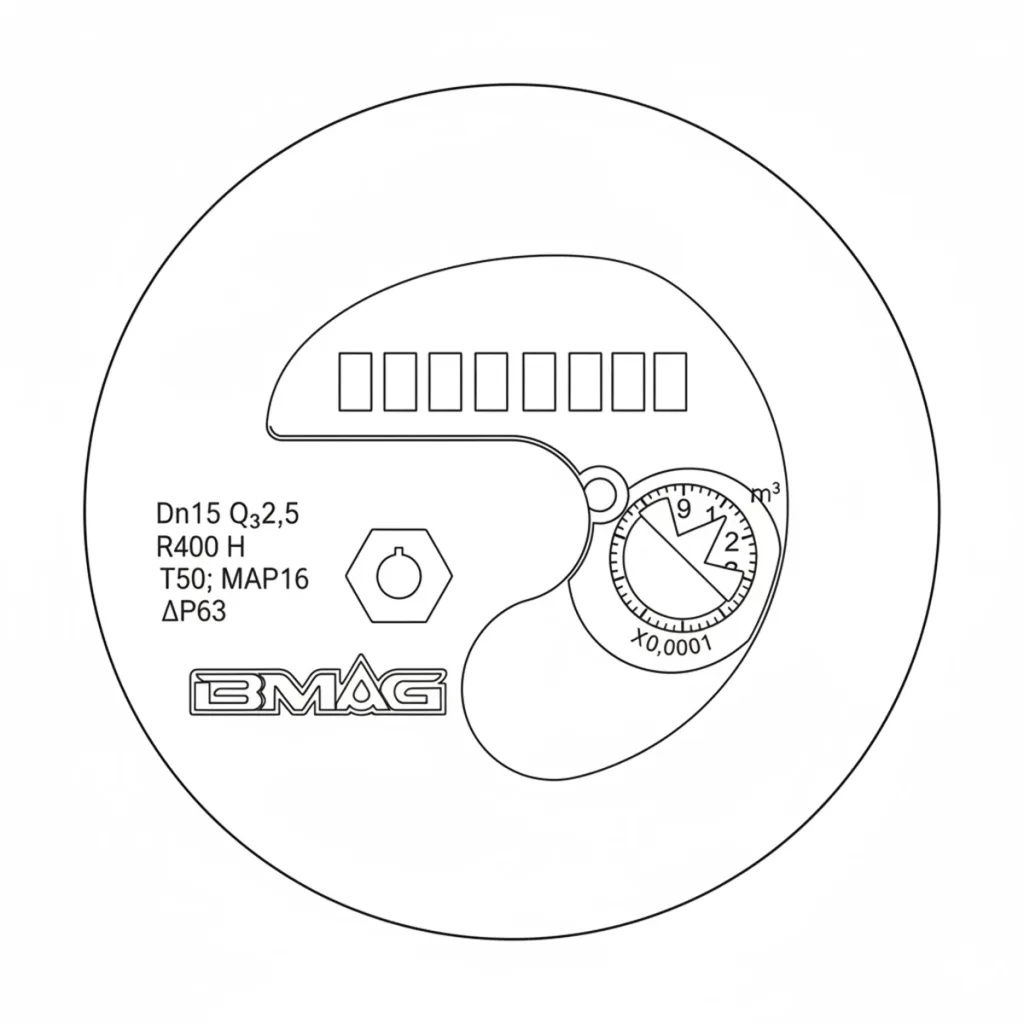

Dial Plate Design (R400/R315/R250/R160)
انطباق با استانداردها
- ISO4064:2014/OIML R49
- دستورالعمل 2014/32/EU در مورد ابزارهای اندازهگیری
- استاندارد اروپایی EN14154
ابعاد

دادههای فنی
دقت
From Q1 inclusive up to but excluding Q2 is ±5%;
From Q2 inclusive up to and including Q4 is ±2% for T30 and ±3% for T50
ما ۳۵۰۰۰ متر مربع تأسیسات و ۲۰+ سال experience back our ۱۰ ساله تضمین کیفیت.
با ما ارتباط برقرار کنید تیم خدمات مشتری برای درخواست نمونه و بحث در مورد سیاستهای انعطافپذیر حداقل سفارش ما.
