Single Jet Polymer Water Meter With Pulse Output | Dry Type | R80 | R160

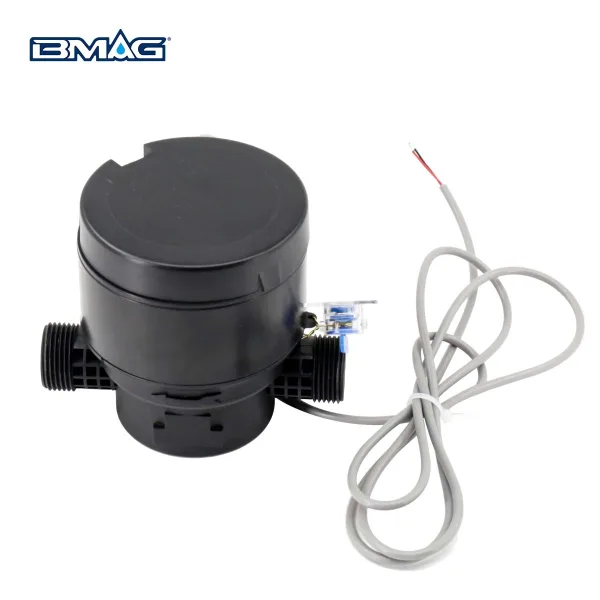

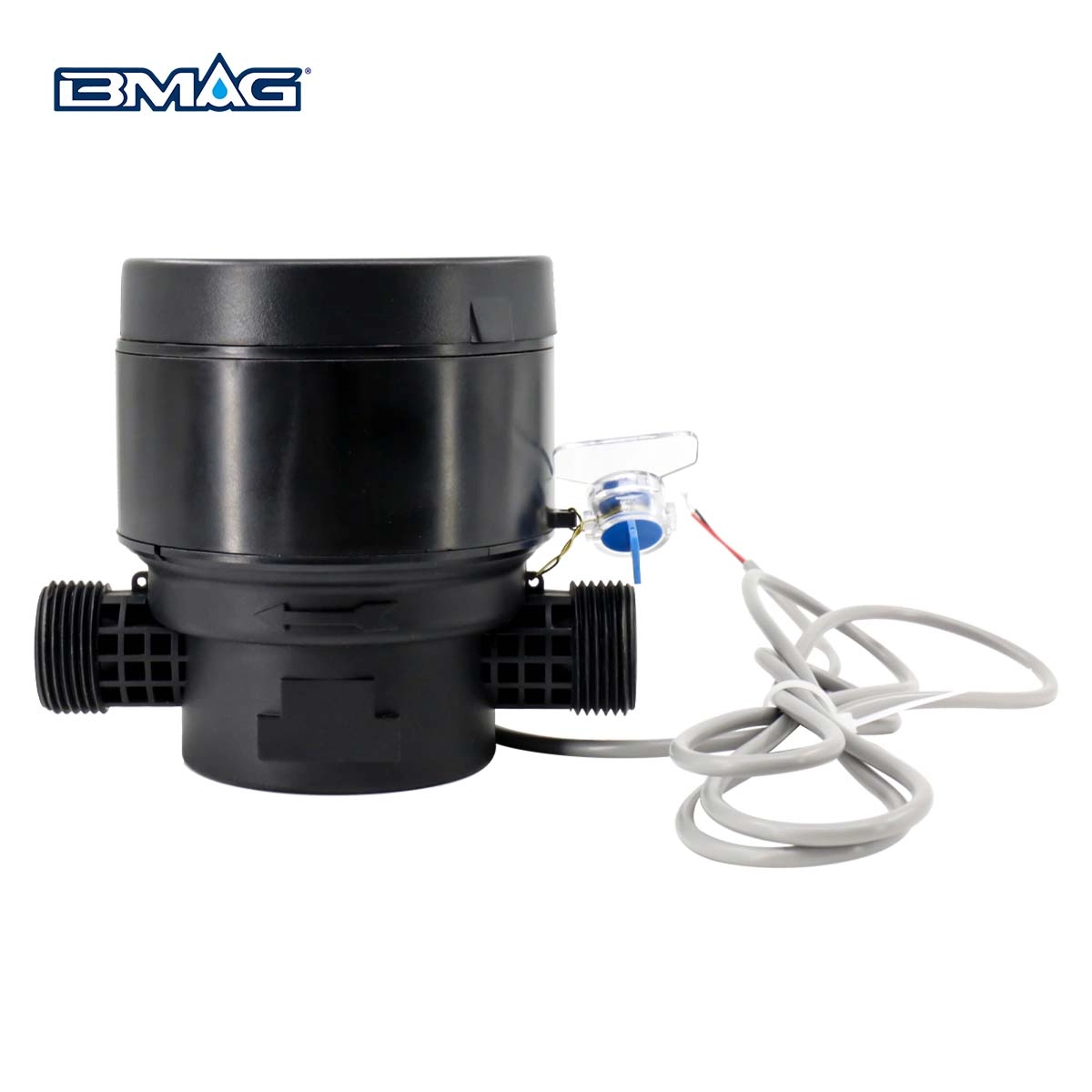

Single Jet Polymer Water Meter With Pulse Output

BMAG Single Jet Polymer Water Meter With Pulse Output is a top-tier solution designed for precision and durability in both residential and indoor applications. It combines the advantages of high precision, durability, and low price. It is a very advantageous product. Engineered to meet the highest standards, this water meter is built with advanced materials and cutting-edge technology, ensuring exceptional performance even in the most demanding environments.

Key Features

IP68 Waterproof Rating
Our Polymer water meter is certified with an IP68 rating, offering unparalleled protection against dust and prolonged water immersion. Whether installed in humid indoor settings or areas prone to flooding, this meter guarantees reliable operation without compromising accuracy.

Premium Materials
Constructed using high-quality materials such as Nylon, GV-5H, or A3EG7, the BMAG Polymer hot water meter boasts excellent mechanical strength and resistance to wear and tear. These materials ensure the meter can withstand harsh conditions, including temperatures up to 90°C, maintaining stability and performance over time. Fully capable as a plastic hot water meter.

Precision and Compliance
With a precision class of R160, the BMAG Single Jet Polymer Water Meter With Pulse Output delivers accurate measurements, making it ideal for billing and monitoring applications. It complies with the OIML R49 standard, ensuring it meets international requirements for water metering devices.

Robust Internal Mechanism
The water meter’s mechanism features a copper or stainless steel sealed register, enhancing its durability and longevity. This robust design not only contributes to the meter’s IP68 waterproof rating but also ensures consistent performance in various environmental conditions.

Applications

The BMAG Polymer single-jet water meter is versatile and widely used in:

• Residential Water Metering: Perfect for homes, providing accurate readings for domestic water consumption.
• Indoor Water Metering: Ideal for apartments, commercial buildings, and other indoor environments where reliable water flow measurement is critical.

Advantages

Cost Effective
Choosing a BMAG Polymer water meter is a cost-effective solution for water management systems. Its durable construction reduces the need for frequent replacements, while its precision helps avoid discrepancies in billing and water usage tracking.

Lightweight Design
The use of advanced Polymers like Nylon and GV-5H ensures the water meter is lightweight yet strong, making installation easier and reducing transportation costs. This lightweight design does not compromise the meter’s durability or performance.

Energy Efficiency
The magnetic water meter technology utilized in the BMAG single-jet water meter minimizes energy consumption, providing a sustainable solution for modern water management systems.

Specifications

• Polymer: GV-5H, PA66+GF30, ABS, compliant with ISO 4064, for Polymer water meters, suitable for potable water.
• Dial Lens Material: High-Strength Glass – Fog-resistant, easy to read, UV-resistant.
• Dry Type Water Meter: The counter does not come into contact with water, leading to a longer service life and no fogging issues.
• دقت: R160, ensuring precise meter readings.
• Waterproof Seal: Copper-sealed mechanism achieving IP68 level dust and water resistance for enhanced durability.
• Low Flow Indicator: High Sensitivity, suitable for detecting minimal leaks.
• Anti-Magnetic Water Meter: Equipped with internal anti-magnetic rings to prevent magnetic interference and cheating, ensuring accurate and reliable readings.
• افت فشار: Excellent internal structure design to avoid vortices and turbulence, minimizing pressure loss.
• Dial：360° rotating, making installation and reading convenient.
• Flow Rate Units: Cubic Meters (m³)
• Maximum Reading：99999.9999 m³
• Minimum Scale: 0.0001 m³
• Accuracy Classes: R80 / R160

اختیاری

• Sizes:
  • Nominal Diameter（DN）：DN15, DN20, DN25, DN32, DN40, DN50
  • Diameter（Inch）： 3/4″, 7/8”,1″, 1-1/4″, 1-1/2″, 2″, 2-1/4″
  • Length without coupler（mm）：165mm, 190mm, 260mm, 300mm
• Materials:
  • Polymer: GV-5H, PA66+GF30 (Nylon 66 reinforced with 30% glass fiber), ABS
• Threads:
  • British Standard Pipe (BSP)
  • American Standard Threads (ANSI B1.20.1, NPT)
  • ISO 228
• Accuracy Classes: Class A, Class B, Class C
• Flow Rate Units: Cubic Meters (m³), Cubic Feet (ft³), Gallons (gal), Liters (L)
• Remote Communication:
  • LoRa
  • LoRaWAN
  • NB-IoT
  • GPRS
  • M-Bus
  • Electromagnetic Pulse
• Check Valve/ Non-return Valve: Optional. Control the direction of water flow and prevent backflow.
• Surface Coating: Electrostatic painted water meter body with Polymer Coating, Nickel Plating
• Dial Lens مواد: High-strength Glass, Polymer
• Mechanism: Polymer Sealed Mechanism, Copper/Stainless Steel Sealed Mechanism
• Accessories: Various complementary accessories

Water Meter Working Conditions

• Operating Temperature:
  • Cold Water Meter: 30°C (86°F), 50°C (122°F)
  • Hot Water Meter: 90°C (194°F)
• Maximum Working Pressure (P): 16 bar (PN16) / 1.6 MPa
• Mounting direction: Horizontal installation. Inclined or angle changes might reduce the water meter’s accuracy.

Dial Plate Design (DN15, R160)

انطباق با استانداردها

• International Standard：ISO 4064 / OIML R49
• European standard：EN 14154 / MID 2004/22/EC / MID 2014/32/EU
• American Standard：NSF/ANSI 61 / NSF/ANSI 372 / ASTM F1390 / AWWA C700 / AWWA C701 / AWWA C705 / AWWA C706 / AWWA C708 / AWWA C712

ابعاد

داده‌های فنی

Head Loss Curve

Our 35,000 m² facility and 20+ years experience back our 10-year quality guarantee.
