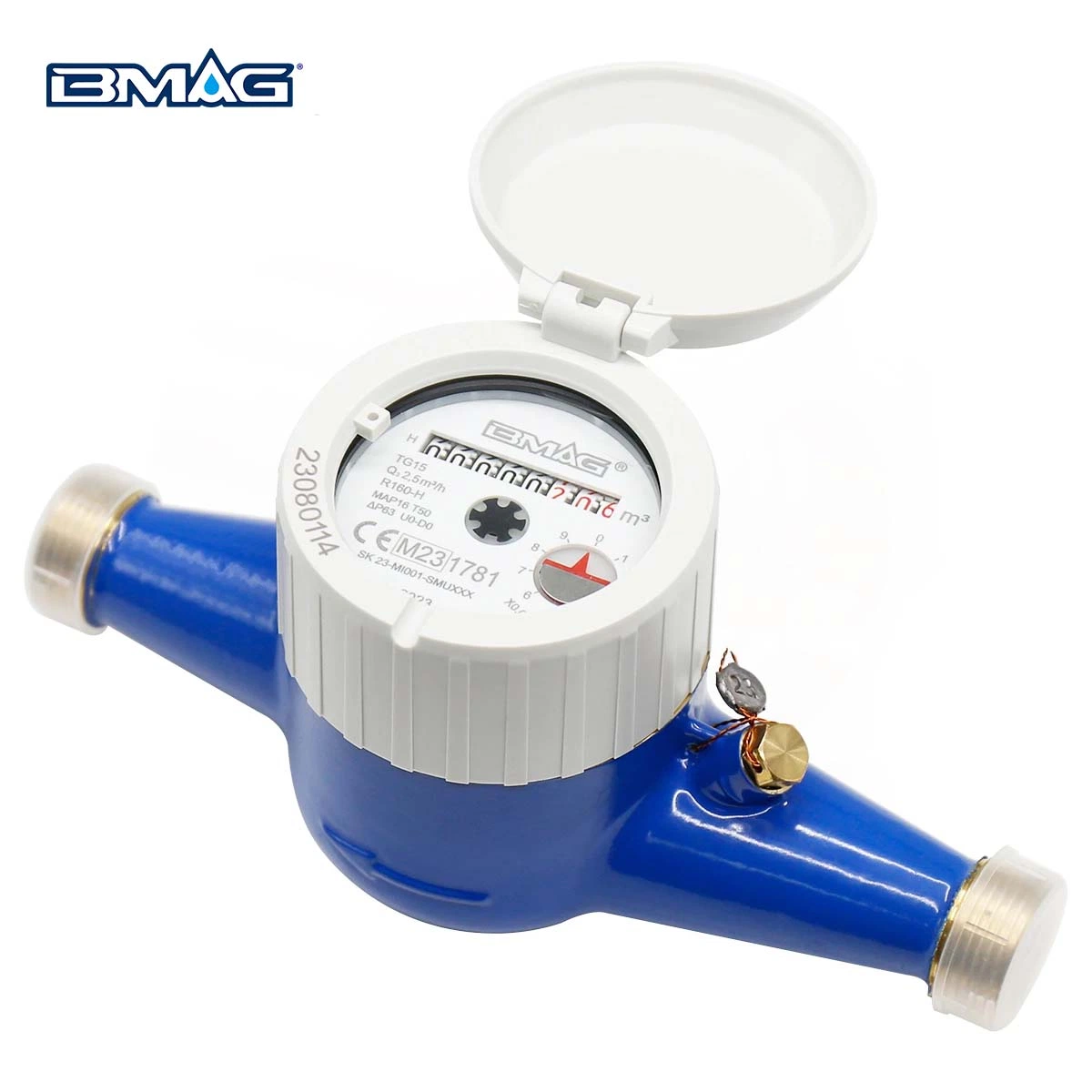

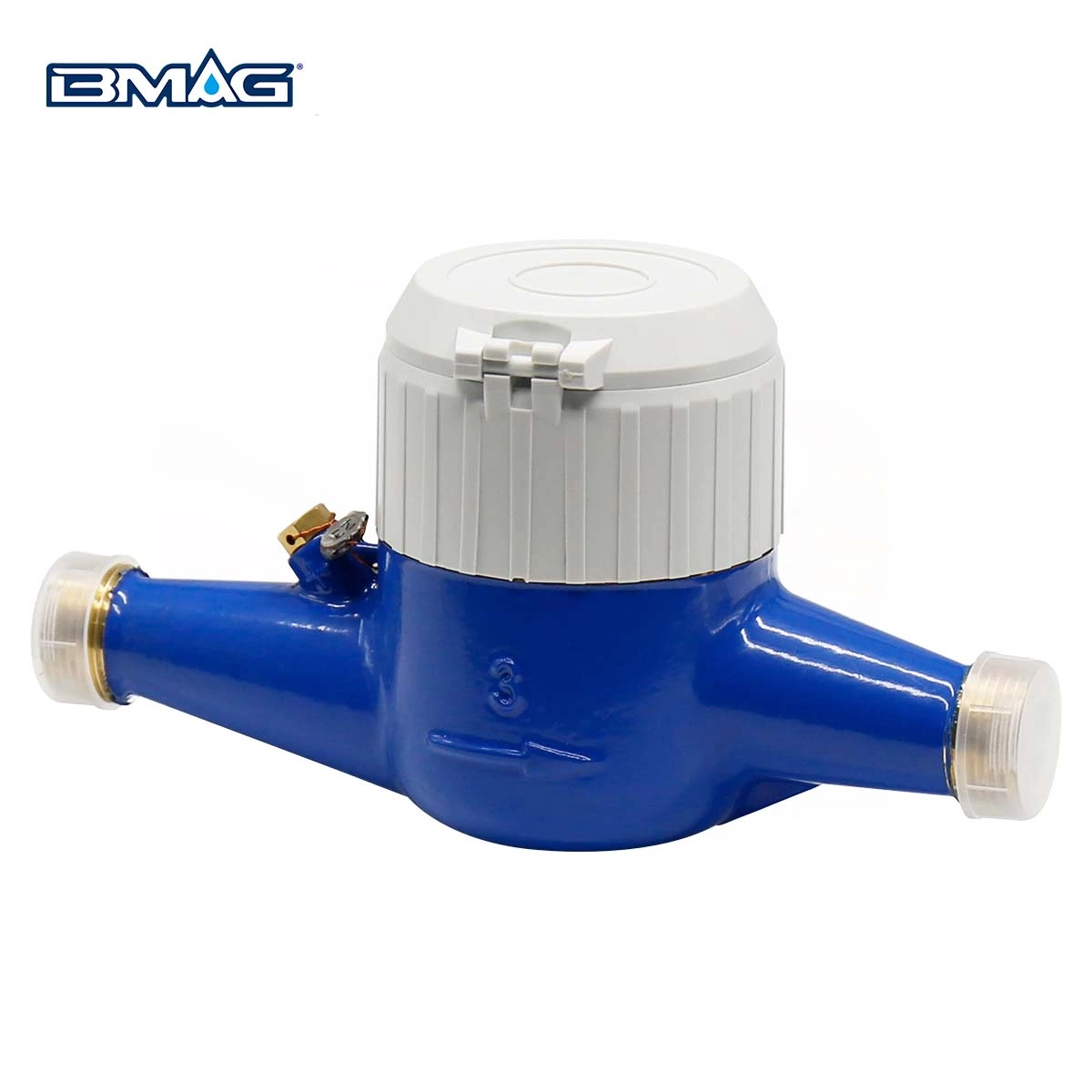

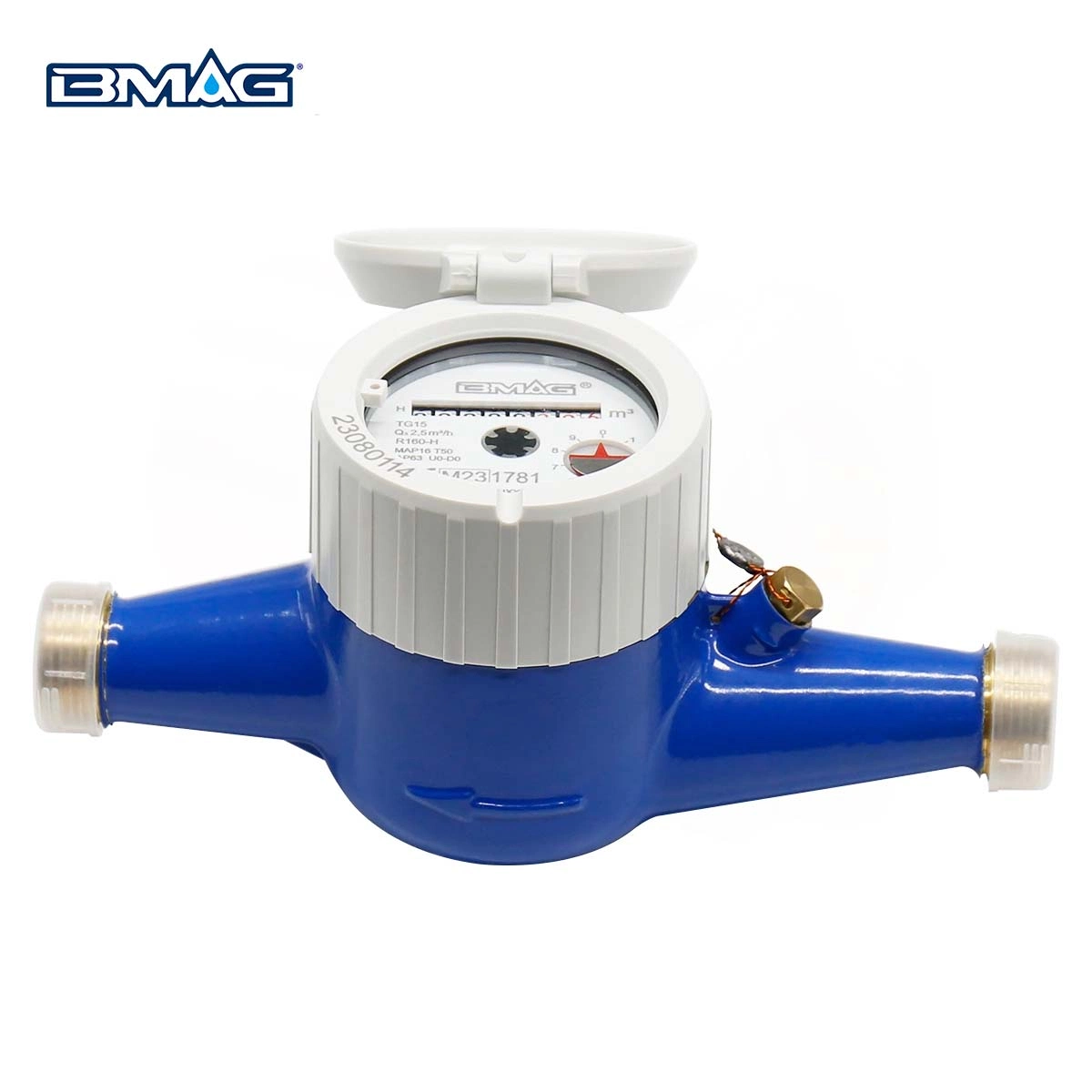

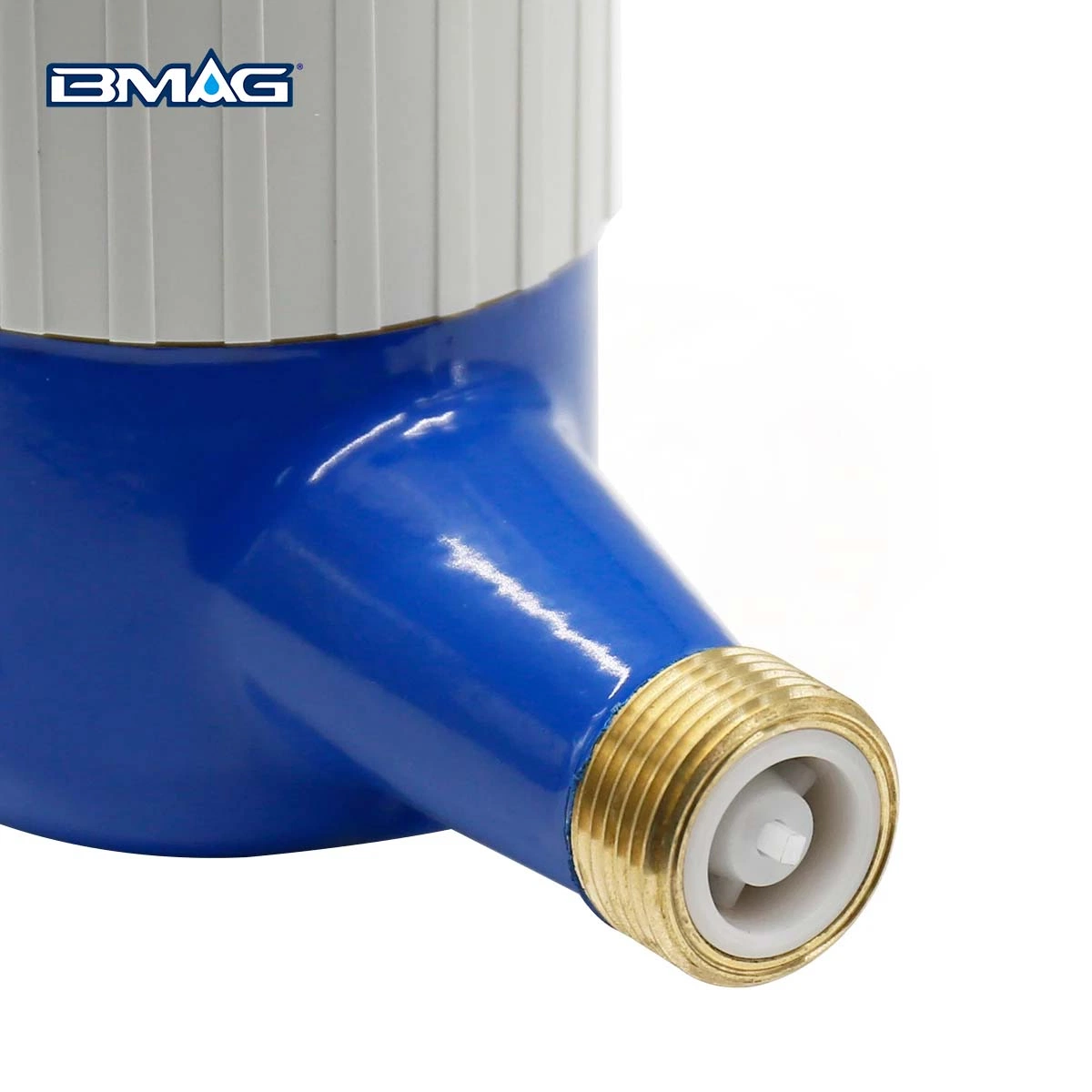

BMAG TG Brass Body Dry Type Water Meter Non-Toxic Hazard Material | 360° Roating | R160 | Ip68
The BMAG Brass Body Dry Type Water Meter is engineered for industrial applications, ensuring both safety and durability. Made from non-toxic hazardous materials, this meter is safe for use in various environments. Its robust construction provides long-lasting performance, meeting the demanding needs of the industry. As a dry type meter, the feature is an isolated counting mechanism that is separated from the measured water flow.
| پوشش | اختیاری |
|---|---|
| اتصال | رزوه BSP، رزوه NPT |
| اندازه | DN15-DN40 |
| نسبت | R80, R100, R160 |
| واحد اندازهگیری | فوت مکعب، متر مکعب، گالن، لیتر |
| مواد | برنج |
BMAG TG Brass Body Dry Type Water Meter With Non-Toxic Hazard Material | 360° Roating | R160 | Ip68
The BMAG Brass Body Dry Type Water Meter is engineered for industrial applications, ensuring both safety and durability. Made from non-toxic hazardous materials, this meter is safe for use in various environments. Its robust construction provides long-lasting performance, meeting the demanding needs of the industry.
As a dry type meter, the feature is an isolated counting mechanism that is separated from the measured water flow. This design ensures that the counting mechanism is unaffected by suspended impurities in the water, maintaining normal operation and clear readings.The dry construction of these meters provides a reliable and consistent metering performance, unhindered by the water quality or environmental conditions, making them a preferred choice for many applications.
Multi Jet Water Meter Feature
- Multi jet working principle assures a long service time
- Low pressure loss, high sensitivity at initial flow
- Special glass with high resistance to pressure and impact available
- Electrostatic painted body made of corrosion resistant brass
- محافظت در برابر میدانهای مغناطیسی خارجی
- Pulseoutput and AMR reading features are optional
- Non return valve and filter available
- Suitablefor potable water, cold water up to 50°C(122℉)
- تقریباً بدون نیاز به تعمیر و نگهداری
- مکانیزم وکیوم شده
Multi Jet Water Meter Working Conditions
- Temperature: Available for cold water 0-50 ℃(122℉)
- فشار: ≤1.6MPa (16bars)
Dial Plate Design (DN20, R160)
انطباق با استانداردها
- ISO4064:2014/OIML R49
- دستورالعمل 2014/32/EU در مورد ابزارهای اندازهگیری
- استاندارد اروپایی EN14154
ابعاد
دادههای فنی
