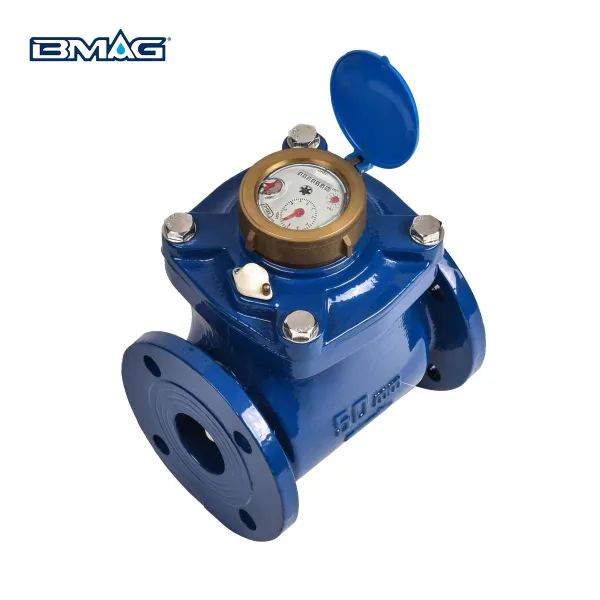

Water Meter For Irrigation System

Water Meter For Irrigation System

• Specifically designed to measure water used for agriculture, landscaping, yards, golf courses, or filling swimming pools.
• Iron body with inside and outside epoxy coating for protecting the corrosion
• Flange connection: DIN PN16/10, ANSI 125/150lb
• The copper can super dry register with IP68 protection
• The entire head area including the counter and transmitter is 360° rotatable for an easy reading
• The interchangeable, removable measuring mechanism can be easily removed from the body for checking, maintaining, and replacing, no need to dismantle the body from the pipe
• Wear-resistant plastic bearings
• Dial Plate Design can be as per the customer’s requirement
• Magnetic transmission, Low-pressure loss

Pulse output is available, details are as follows:

• The Pulse Emitter Device consists of a plastic housing with Reed Switch, and 1,5 m cable with 2 cores in Red and Black
• electric Data: Vmax=24AC/DC; Imax=0,01A
• Capacity of the Pulse Emitter:

Working Conditions

• तापमान: ठंडे पानी के लिए उपलब्ध (0-50 ℃)
• दबाव: ≤1.6MPa (16 बार)

मानकों का अनुपालन

• आईएसओ4064:2014/ओआईएमएल आर49
• मापन उपकरणों पर निर्देश 2014/32/ईयू
• यूरोपीय मानक EN14154

Dimension (Flange Standard for selecting like DIN, ANSI…)

तकनीकी डाटा

MAX. PERMISSION ERROR:

• From Q1 inclusive up to but excluding Q2 is ± 5%
• From Q2 inclusive up to and including Q4 is ± 2% for T30 and ± 3% for T50
