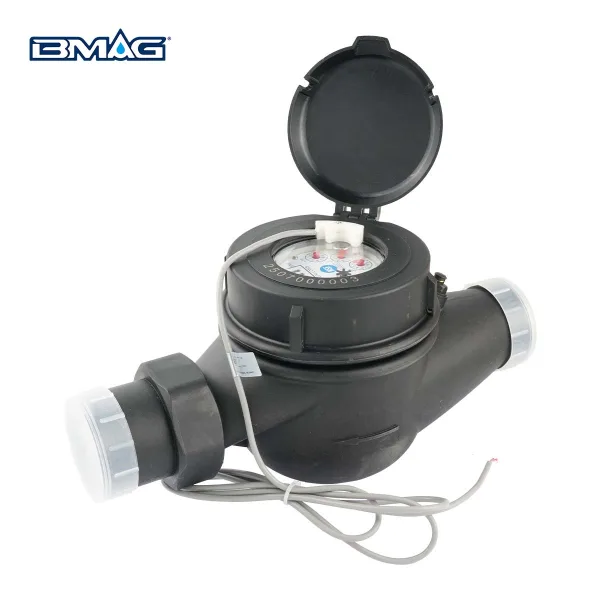

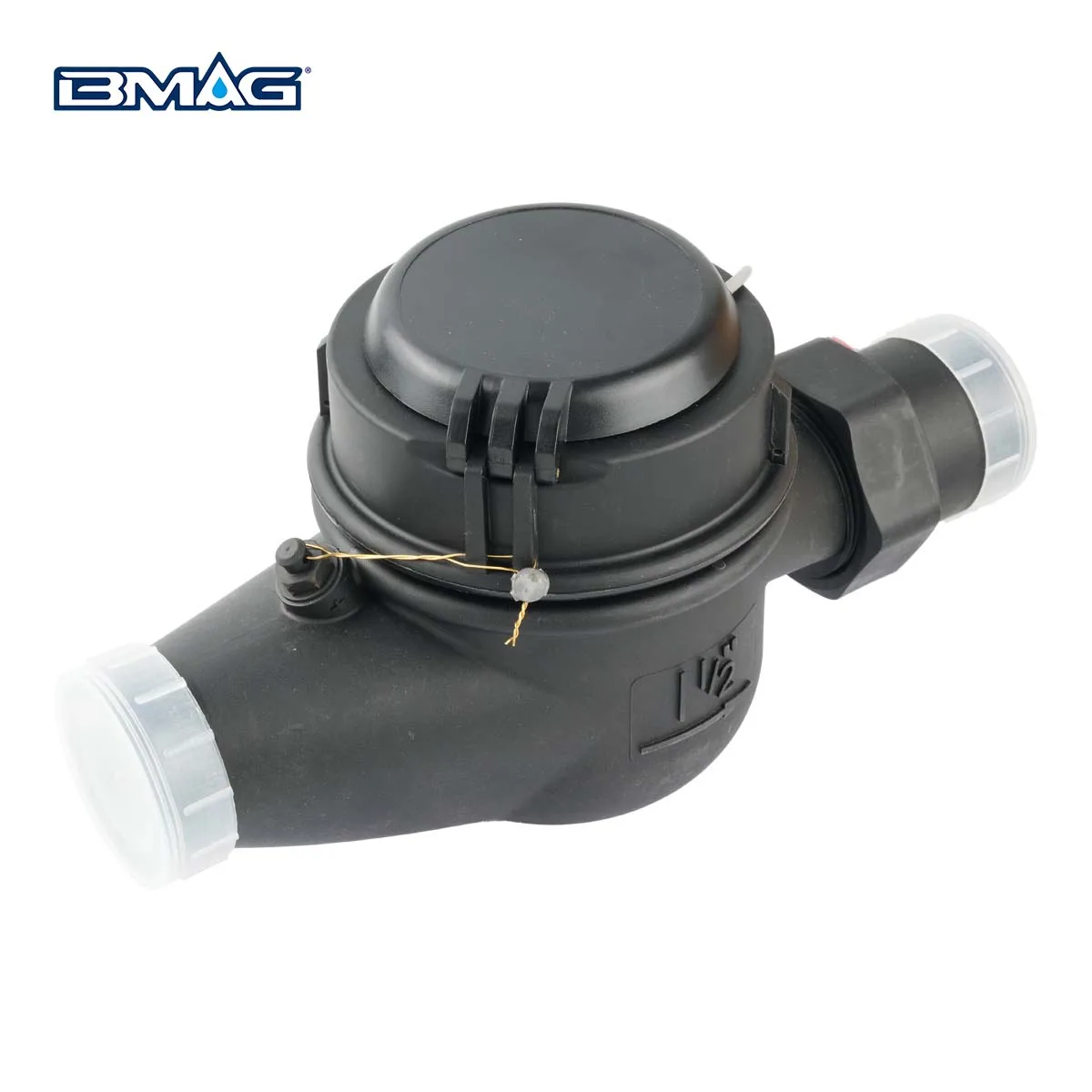

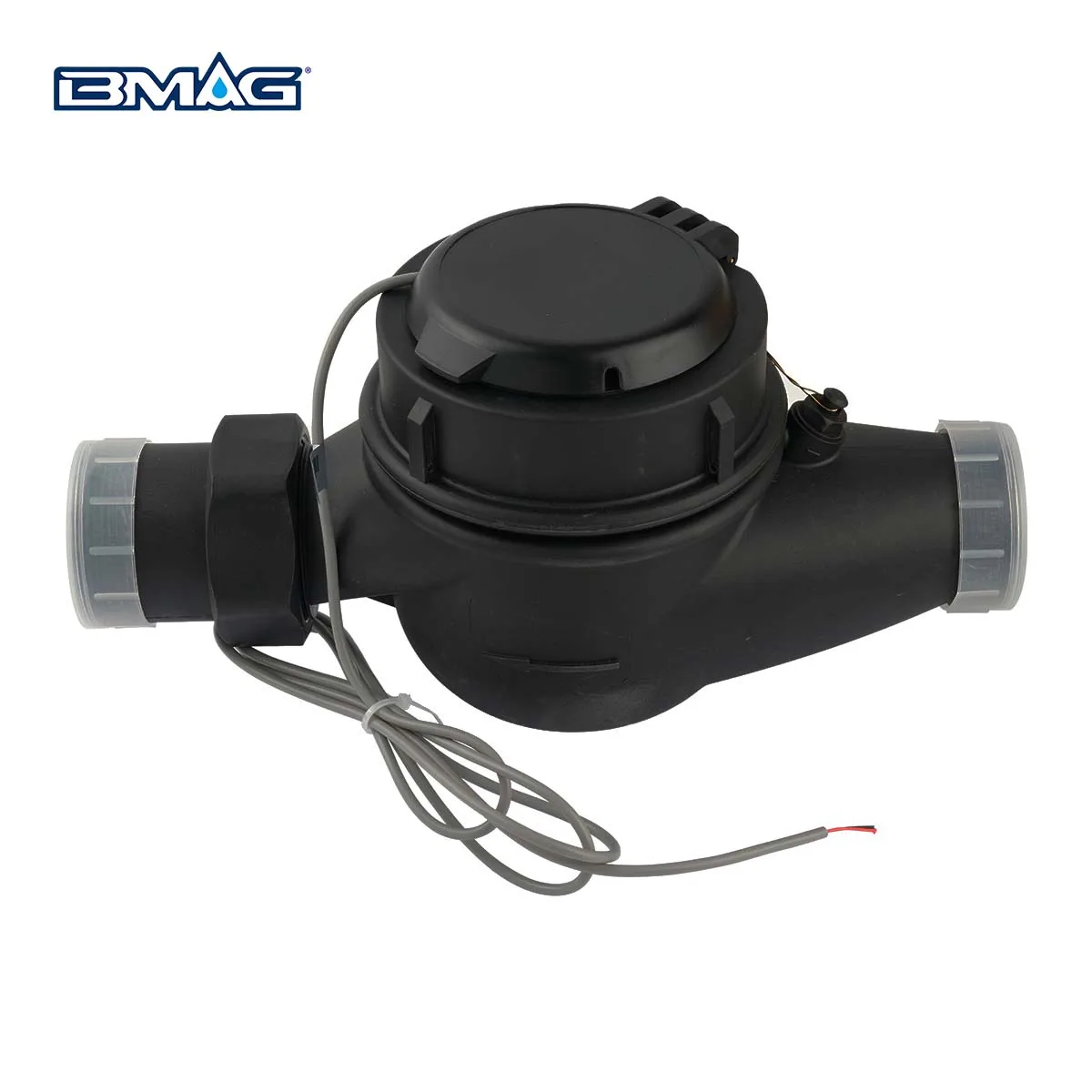

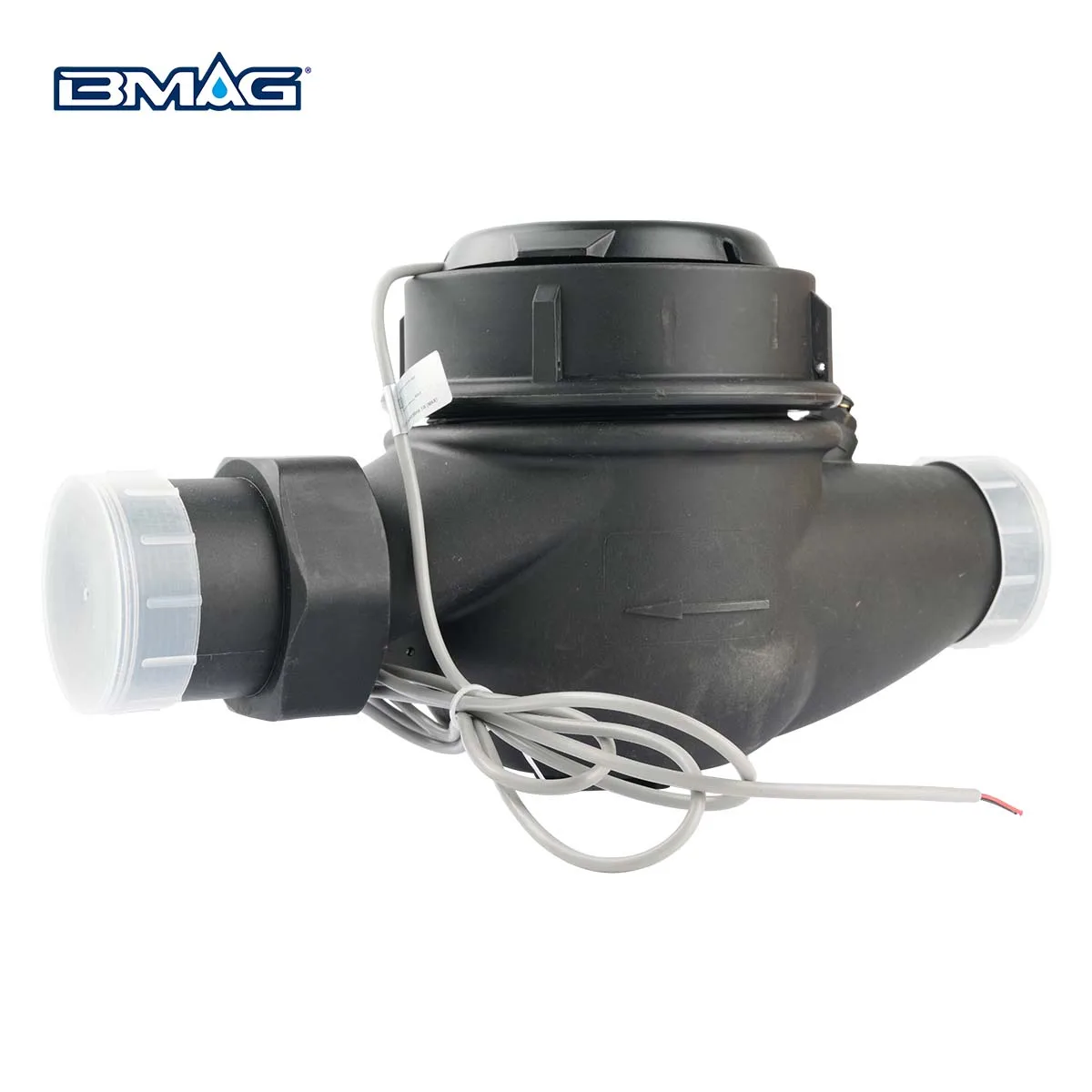

1-1/2″ Plastic Water Meter

Easily track your water usage with our 1-1/2″ Plastic Water Meter. Whether you’re a homeowner wanting to monitor your garden’s water use, a landlord needing to bill tenants accurately, or just want to keep an eye on your consumption, this meter is the perfect, straightforward solution.

Designed for simplicity and durability, its high-strength plastic body is built to last. Unlike heavy metal meters, it’s lightweight, easy to handle, and completely rust-proof, ensuring a long and reliable service life. The clear, easy-to-read analog dial shows you exactly how much water has passed through, with no need for batteries or electricity.

It’s the ideal, low-cost tool for managing water wisely.

1-1/2″ Plastic Water Meter 主な特徴：

• Rust-Proof & Durable: Made from high-quality plastic, it will never corrode, making it perfect for both indoor and outdoor installations.

• Clear & Easy to Read: The large, traditional dial display shows your water consumption at a glance in gallons (or cubic meters, depending on the model).

• Accurate Measurement: Reliably measures water flow so you can track usage, spot potential leaks, and manage costs effectively.

• Lightweight & Easy to Install: Much lighter than brass or iron meters, making installation quick and simple on any standard 1-inch pipe line.

• Versatile Use: Ideal for residential sub-metering (e.g., for an apartment or garden), irrigation systems, RV parks, and other light commercial applications.

Specifications

• Plastic Material: GV-5H, PA66+GF30 , ABS, compliant with ISO 4064, NSF/ANSI 61, AWWA 701 standards for plastic water meters, suitable for potable water.
• Dial Lens Material: High-Strength Glass – Fog-resistant, easy to read, UV-resistant.
• Dry Type Water Meter: The counter does not come into contact with water, leading to a longer service life and no fogging issues.
• 正確さ: R160, ensuring precise meter readings.
• Waterproof Seal: Copper-sealed mechanism achieving IP68 level dust and water resistance for enhanced durability.
• Low Flow Indicator: High Sensitivity, suitable for detecting minimal leaks.
• Anti-Magnetic Water Meter: Equipped with internal anti-magnetic rings to prevent magnetic interference and cheating, ensuring accurate and reliable readings.
• 圧力損失: Excellent internal structure design to avoid vortices and turbulence, minimizing pressure loss.
• Dial: 360° rotating, making installation and reading convenient.
• Flow Rate Units: Cubic Meters (m³)
• Maximum Reading: 99999.9999 m³
• Minimum Scale: 0.0001 m³
• Accuracy Classes: Class B

Optional Features

• Sizes:
  • Nominal Diameter（DN）：DN15, DN20, DN25, DN32, DN40, DN50
  • Diameter（Inch）：1/2, 3/4″, 7/8”,1″, 1-1/4″, 1-1/2″, 2″
  • Length without coupler（mm）：165mm, 190mm, 260mm, 300mm
• Materials:
  • Brass: Lead Free Brass 87850
  • Bronze: Lead Free Bronze (C89833)
  • Cast Iron: GJS-500-7
  • Plastic: GV-5H, PA66+GF30 (Nylon 66 reinforced with 30% glass fiber), ABS
  • Stainless Steel: EU EN 1.4301 (304 Stainless Steel)
• Threads:
  • British Standard Pipe (BSP)
  • American Standard Threads (ANSI B1.20.1, NPT)
  • ISO 228
• Accuracy Classes: Class A, Class B, Class C
• Flow Rate Units: Cubic Meters (m³), Cubic Feet (ft³), Gallons (gal), Liters (L)
• Remote Communication:
  • LoRa
  • LoRaWAN
  • NB-IoT
  • GPRS
  • M-Bus
  • Electromagnetic Pulse
• チェックバルブ/ Non-return Valve: Optional. Control the direction of water flow and prevent backflow.
• Surface Coating: Electrostatic painted water meter body with Plastic Coating, Nickel Plating
• Dial Lens 材料: High-strength Glass, Plastic
• Mechanism: Plastic Sealed Mechanism, Copper/Stainless Steel Sealed Mechanism
• Accessories: Various complementary accessories

Water Meter Working Conditions

• Operating Temperature:
  • Cold Water Meter: 30°C (86°F), 50°C (122°F)
  • Hot Water Meter: 90°C (194°F)
• Maximum Working Pressure (P): 16 bar (PN16) / 1.6 MPa
• 取り付け方向: Horizontal installation. Inclined or angle changes might reduce water meter’s accuracy.

文字盤プレートデザイン（DN15、R160）

規格準拠

• International Standard: ISO 4064 / OIML R49
• European standard: EN 14154 / MID 2004/22/EC / MID 2014/32/EU
• American Standard: NSF/ANSI 61 / NSF/ANSI 372 / ASTM F1390 / AWWA C700 / AWWA C701 / AWWA C705 / AWWA C706 / AWWA C708 / AWWA C712

寸法

技術データ

私たちの 35,000平方メートル 施設と 20年以上 体験を返して 10年 品質保証。.

私たちとつながりましょう カスタマーサービスチーム サンプル請求や、柔軟な最低注文数量に関するご相談は、お気軽にお問い合わせください。.
