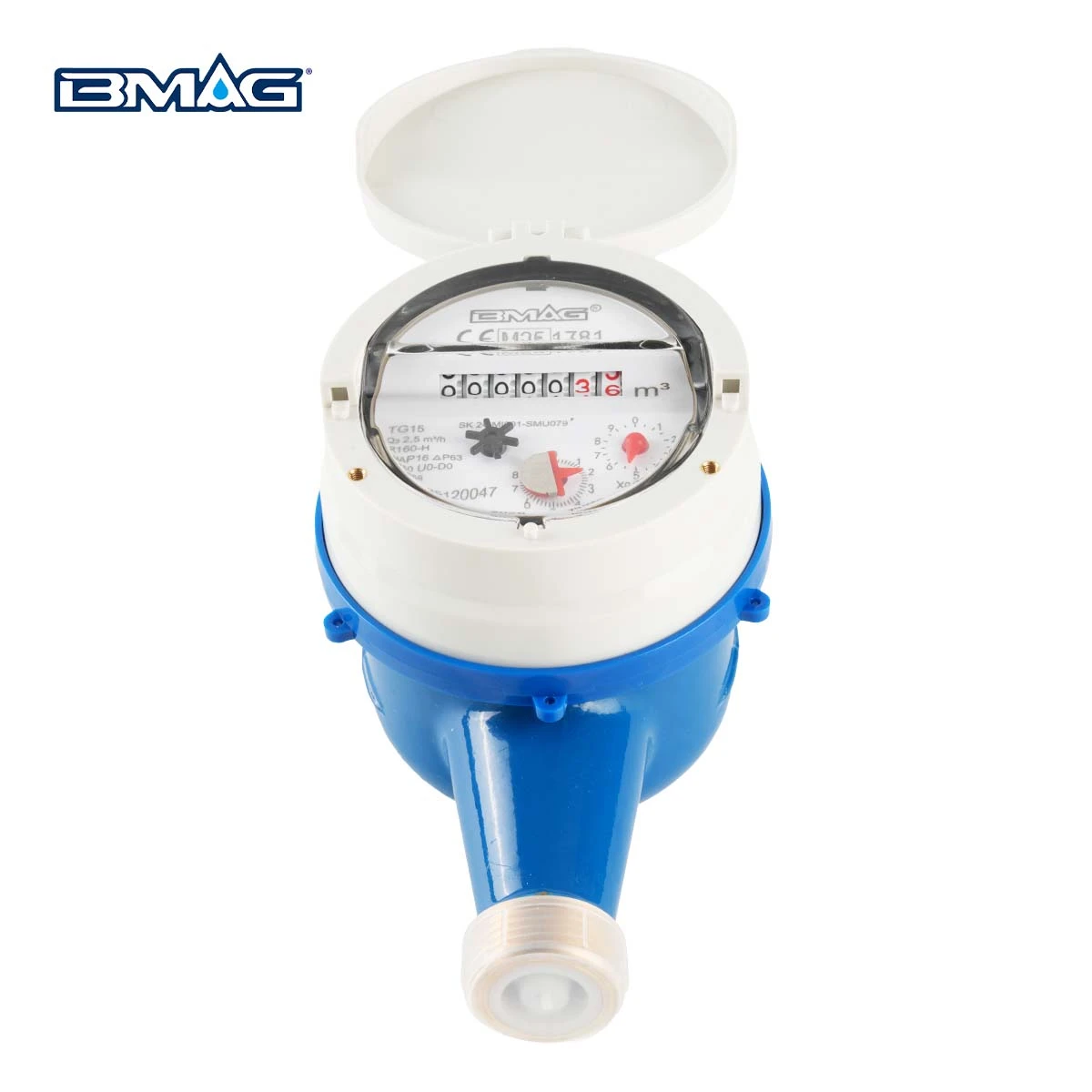

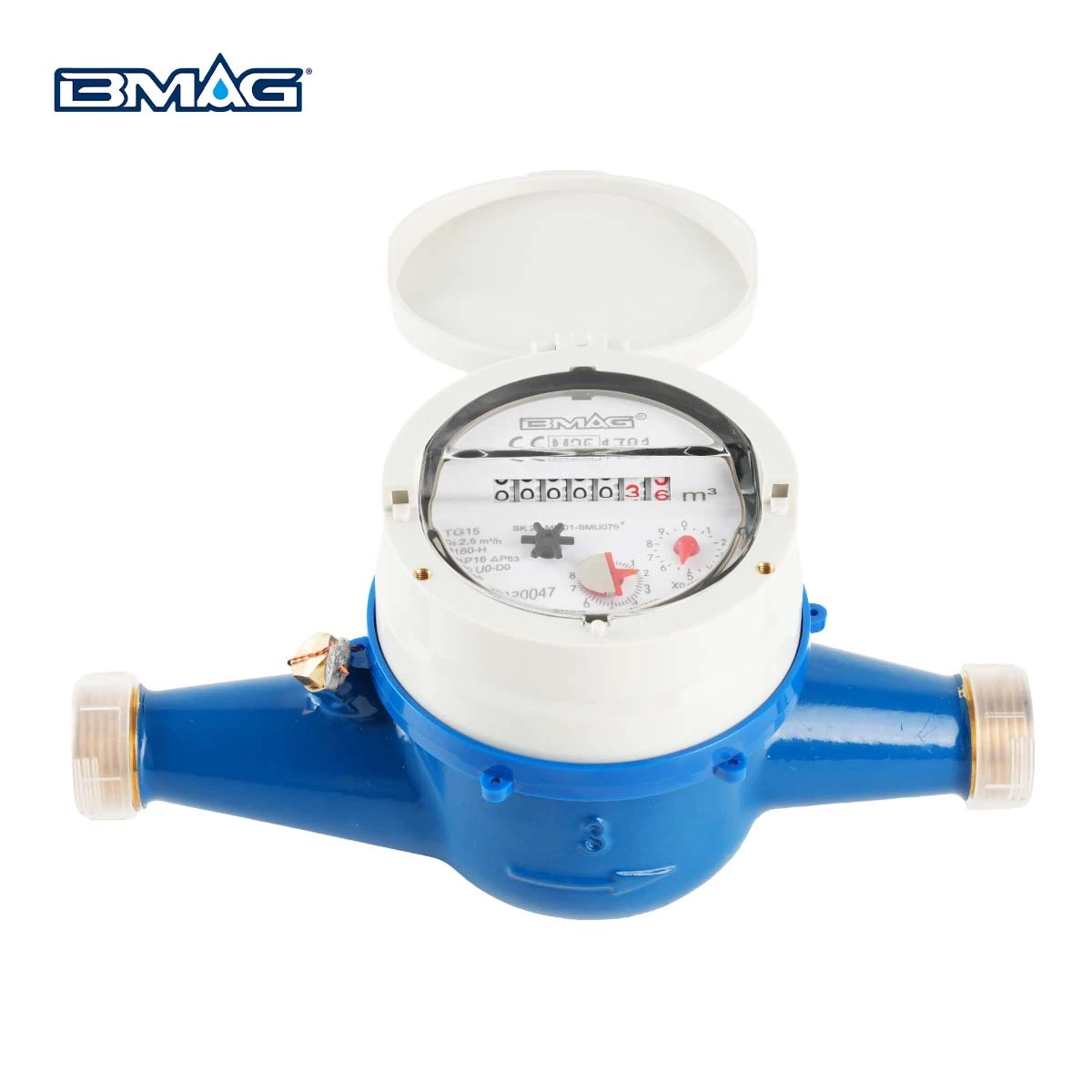

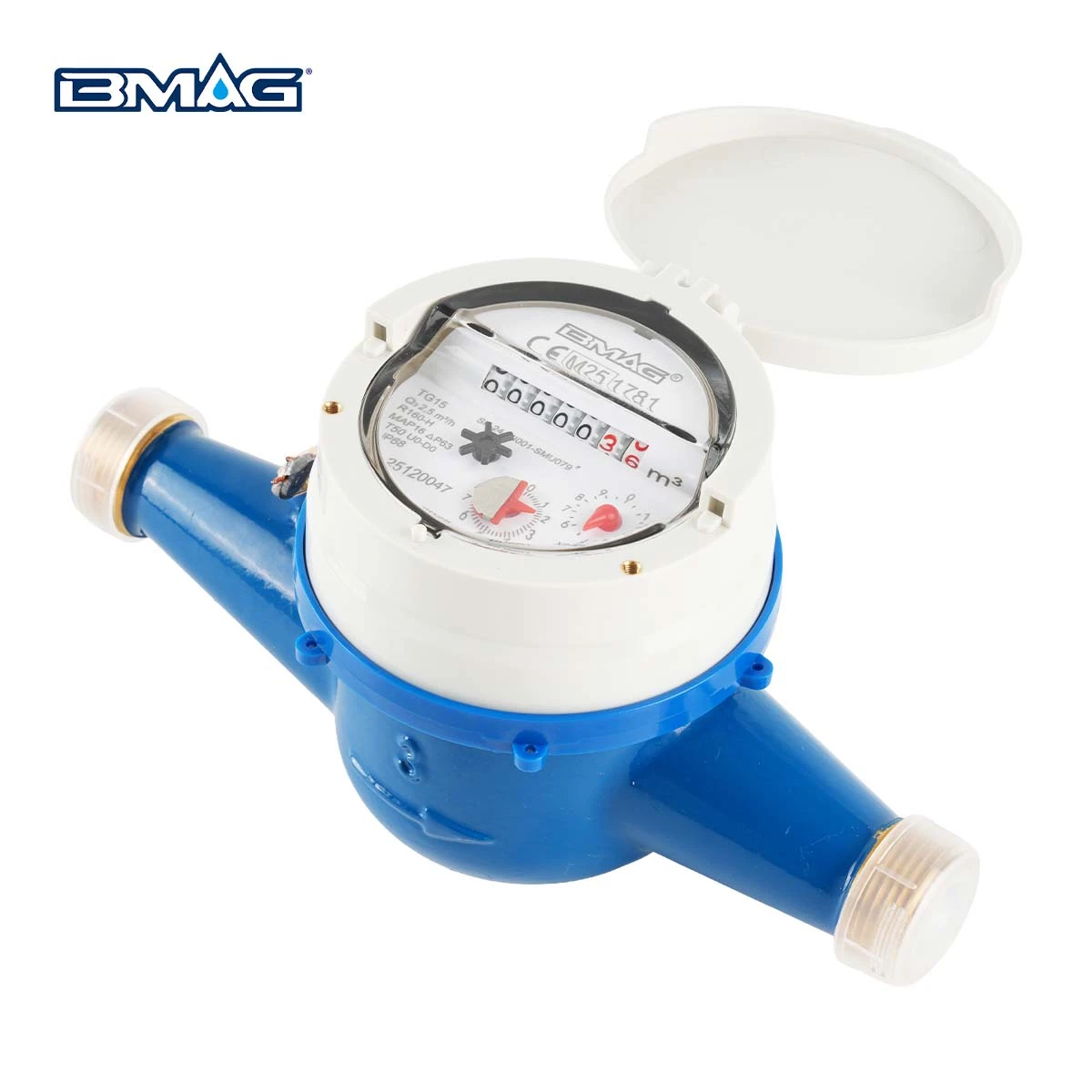

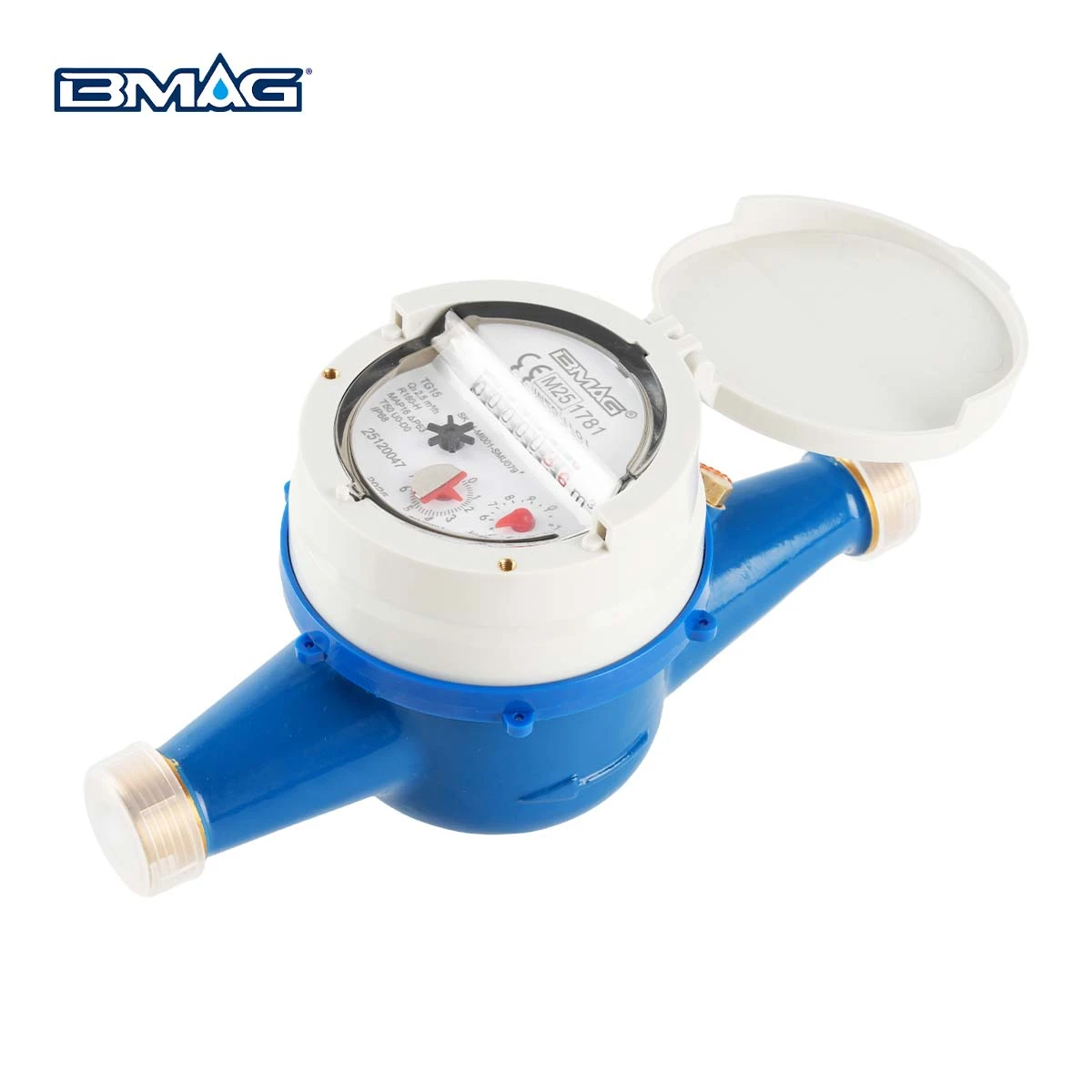

Multi-Jet Water Meter with 45° Angled Register | Easy Reading | BMAG Meter
ISO 4064 certified 45° register multi-jet water meter for residential & commercial easy-reading metering.
| 脈 | オプション |
|---|---|
| 材料 | Brass, Plastic |
| サイズ | DN15-DN40 |
| 測定単位 | 立方フィート、立方メートル、ガロン、リットル |
The unique 45° angled register design eliminates reading blind spots, enabling utility staff and property managers to read consumption data quickly and accurately without bending over in narrow installation spaces such as embedded meter boxes or wall-mounted mounting positions. Available in DN15-DN40 sizes, with 真鍮, plastic そして stainless steel body material options, suitable for residential, commercial and light industrial cold water metering scenarios.
Multi-Jet Water Meter with 45° Angled Register Features
- 45° Angled Register Design – Eliminates reading blind spots, reduces reading time by 30% in narrow installation positions, improves meter reading efficiency for utilities and property management teams.
- Multiple Material Options – Available in brass, plastic, stainless steel and cast iron body options to adapt to different water quality and installation environment needs.
- Customizable OEM/ODM Support – As an integrated manufacturing & trading factory, we support custom logo, register printing, packaging and parameter adjustment for bulk orders.
- Stable Measurement Performance – High measurement accuracy (Class B/R160 standard), anti-magnetic interference design, long service life of over 10 years under normal use.
- Convenient to install – the intelligent remote transmission module.
- Rotary indicator register – for the most comfortable reading position is 7 Rollers and 2 Pointer.
- Non-Return Valve – to avoid the reserve flow Rate AS an option.
Specifications
- Dial Lens Material: High-Strength Glass – Fog-resistant, easy to read, UV-resistant.
- Dry Type Water Meter: The counter does not come into contact with water, leading to a longer service life and no fogging issues.
- 正確さ: R400, ensuring precise meter readings.
- Waterproof Seal: Copper-sealed mechanism achieving IP68 level dust and water resistance for enhanced durability.
- Low Flow Indicator: High Sensitivity, suitable for detecting minimal leaks.
- Anti-Magnetic Water Meter: Equipped with internal anti-magnetic rings to prevent magnetic interference and cheating, ensuring accurate and reliable readings.
- 圧力損失: Excellent internal structure design to avoid vortices and turbulence, minimizing pressure loss.
R400 Volumetric Water Meter Working Conditions
- Cold Water Meter: 30°C (86°F), 50°C (122°F)
- Hot Water Meter: Up to 90°C (194°F)
- 圧力：≤1.6MPa（16バール）
Dial Plate Design (R400/R315/R250/R160)
規格準拠
- ISO4064:2014/OIML R49
- 計測機器に関する指令2014/32/EU
- 欧州規格EN14154
寸法
技術データ
正確さ
From Q1 inclusive up to but excluding Q2 is ±5%;
From Q2 inclusive up to and including Q4 is ±2% for T30 and ±3% for T50
What are the benefits of a 45° angled register for water meters?
A 45° angled register tilts the display to match the natural viewing angle of meter readers, eliminating the need to bend over in narrow installation spaces (such as meter boxes or wall-mounted positions) and reducing reading errors caused by blind spots, greatly improving work efficiency.
