灌漑用水メーター | 農業
BMAG Irrigation and Agriculture Water Meter a water meter with magnetic transmission, super dry type register for Irrigation and Agriculture application with sizes from Dn50 to Dn300
Copper can with IP68 protection. Suitable for irrigation, agriculture, wastewater water and bad water quality applications
| 材料 | 鋳鉄 |
|---|---|
| 接続する | フランジ |
| 比率 | R40 |
| 脈 | オプション |
| コーティング | オプション |
商品詳細

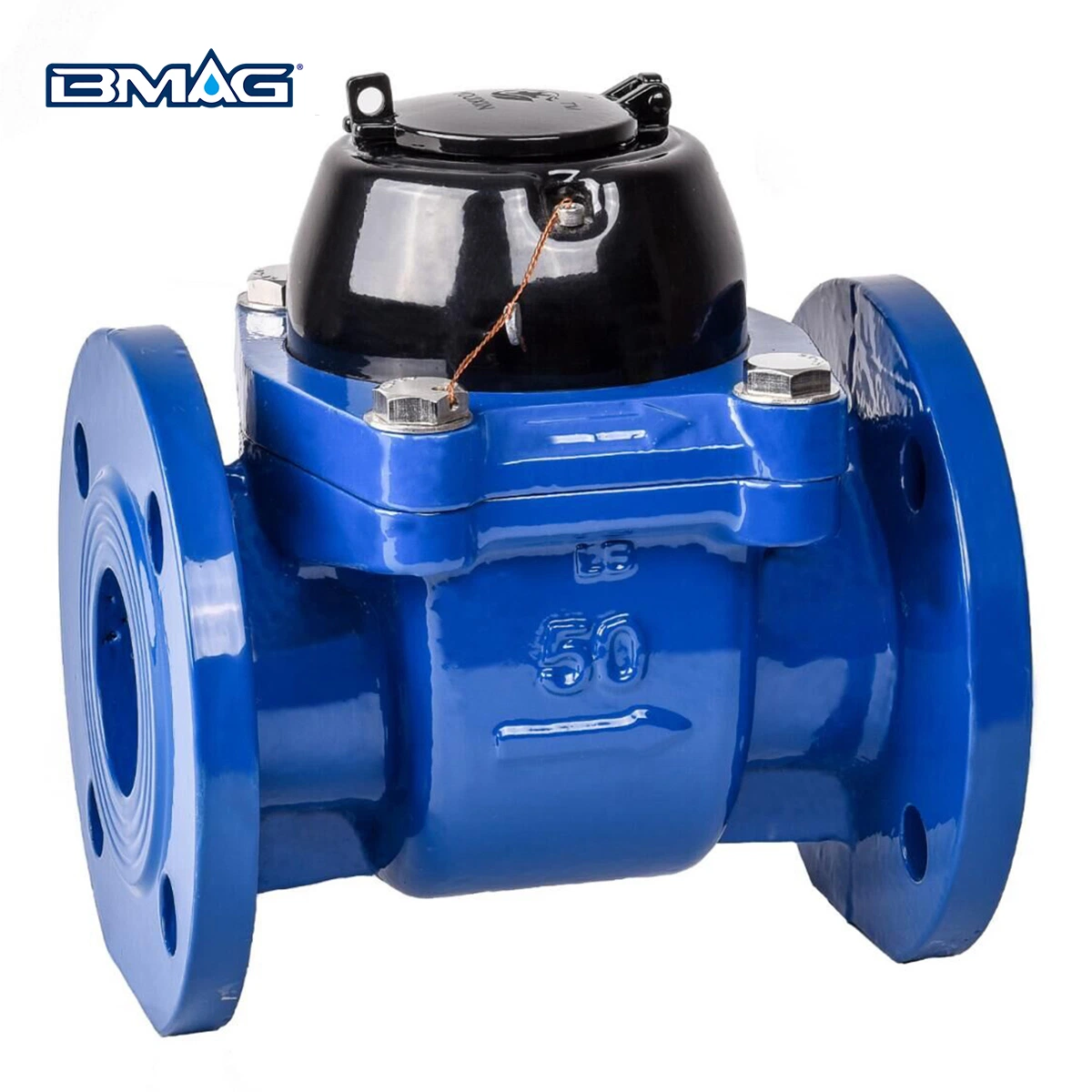

BMAG WPI-SDC Irrigation Water Meter | Agriculture
Irrigation Water Meter Feature
- It is an Irrigation water meter with magnetic transmission, super dry type register for Irrigation and Agriculture applications with sizes from Dn50 to Dn300
- Suitable for irrigation, agriculture, wastewater water and bad water quality applications
- An iron body with an inside and outside epoxy coating for protecting the corrosion
- Flange connection: DIN PN16/10, ANSI 125/150lb
- The copper can be a super dry register with IP68 protection
- The entire head area, including counter and transmitter, is 360° rotatable for an easy reading
- The interchangeable, removable measuring mechanism can be easily removed from the body for checking, maintaining, and replacing, no needing to dismantle the body form the pipe
- Wear-resistant plastic bearings
- Dial Plate Design can be as per the customer’s requirement
- Magnetic transmission, Low pressure loss
- Class A
Pulse output is available, details as follows:
- The Pulse Emitter Device consists of a plastic housing with a Reed Switch, and 1,5 m cable with 2 cores in Red and Black
- lectric Data: Vmax=24AC/DC; Imax=0,01A
- パルスエミッタの容量:
労働条件
- 温度:0~50℃の冷水に対応
- 圧力:≤1.6MPa(16バール)
規格準拠
- ISO4064:2014/OIML R49
- 計測機器に関する指令2014/32/EU
- 欧州規格EN14154

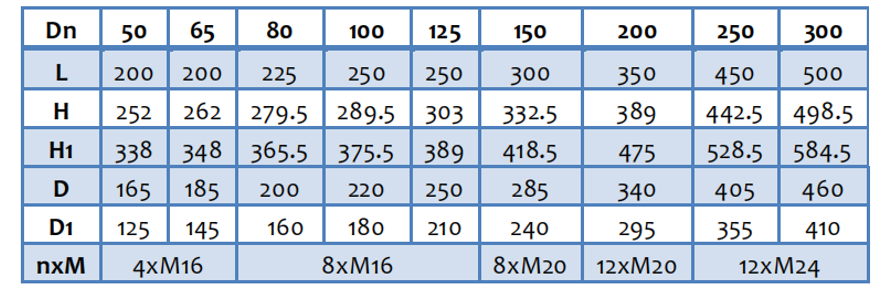

Dimension (Flange Standard for selecting like DIN, ANSI…)

技術データ
最大権限エラー:
- Q1からQ2までは±5%である。
- Q2からQ4までは、T30の場合は±2%、T50の場合は±3%となります。
