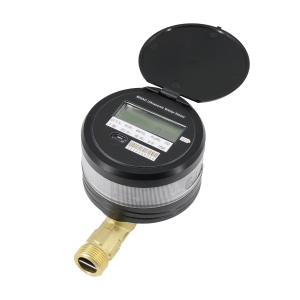

DN20 초음파 유량계
DN20 Ultrasonic Water Flow Meter is the static ultrasonic water meter covered from Dn15 to Dn40, R400-R800
12 years of battery lifetime, IP68, Wire or wireless communication
| 연결하다 | BSP 나사산, NPT 나사산 |
|---|---|
| 크기 | DN15-DN40 |
| 비율 | R80, R100, R160, R200, R400 |
| 측정 단위 | Cubic meter |
| Communication | LoRa, LoRawan, NB-IoT, wM-Bus |
제품 상세 정보
DN20 초음파 유량계
BMAG Ultrasonic water Flow meter is a static ultrasonic water meter covered from Dn15 to Dn40, R400 to R800.
Ultrasonic Meter Feature
- Non-moving parts permit reliable performance, long service life, and low-pressure loss
- High accuracy, unaffected by sand, suspended solids, or air pockets
- It can detect both forward and reverse flow
- Battery lifetime of 12 years (Default setting)
- Battery type: Internal battery pack (Lithium, 3.6V)
- AMR ready for wireless, or RS485, M-BUS, and other wired communication modes
- IP 68 environment protection class
- Any installation position
- Low-pressure loss to Δ40
- Unit of measurement: ft3，m3，gal
- Operating Humidity Range: 0%-100% non-condensing
- Weight: DN15: 1000 g
Ultrasonic Water Meter Working Conditions
- Temperature: Available for cold water 0-50 ℃ (32℉-122℉)
- 압력: ≤1.6MPa (16bar)
Dial Face Design
Dimensions
기술 데이터
R=Q3/Q1 Optional:400/500/630/800
MAX. PERMISSION ERROR:
- From Q1 inclusive up to but excluding Q2 is ± 5%
- From Q2 inclusive up to and including Q4 is ± 2% for T30 and ± 3% for T50
