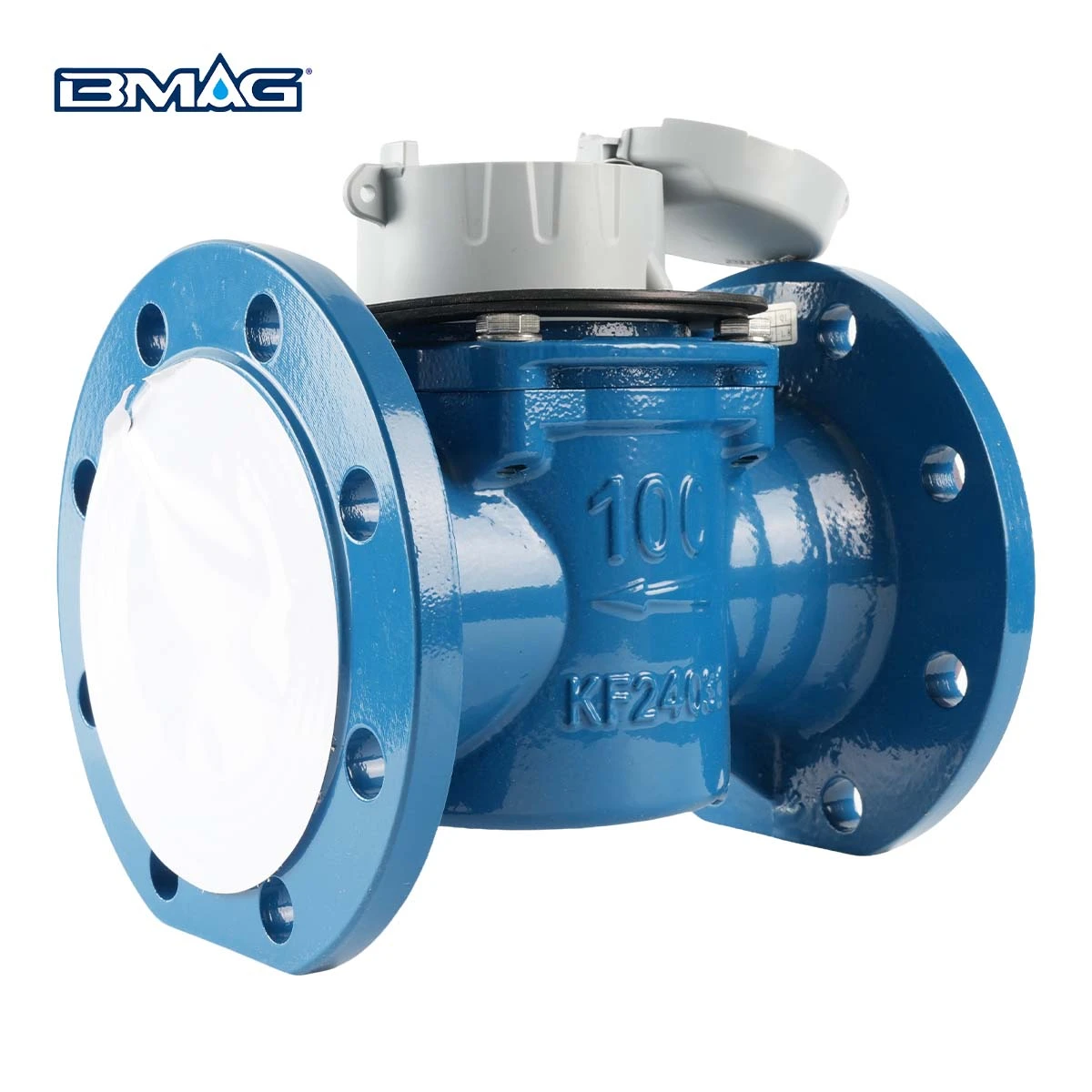

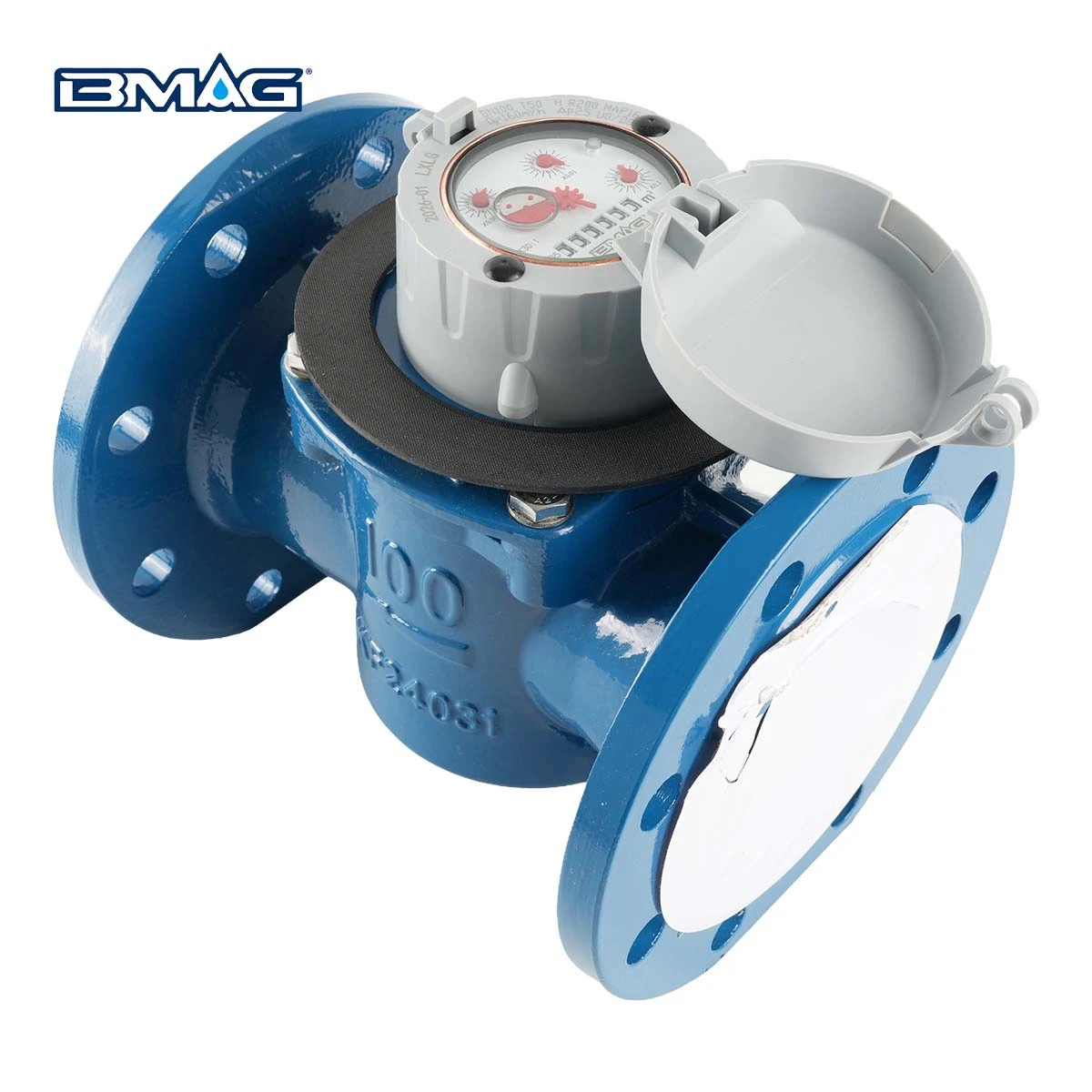

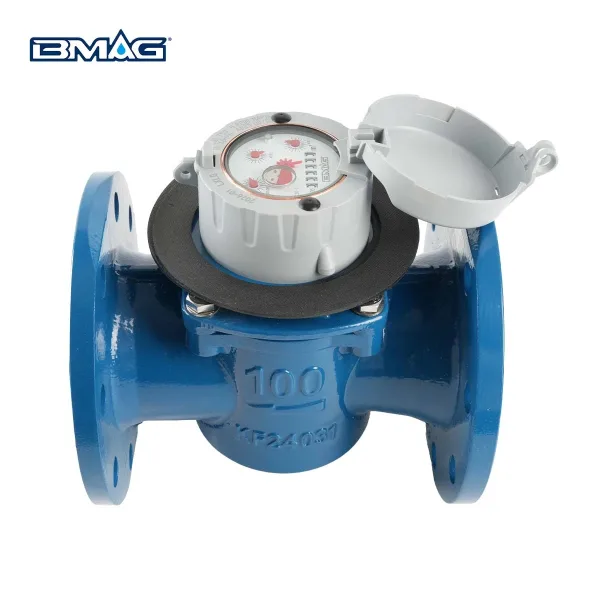

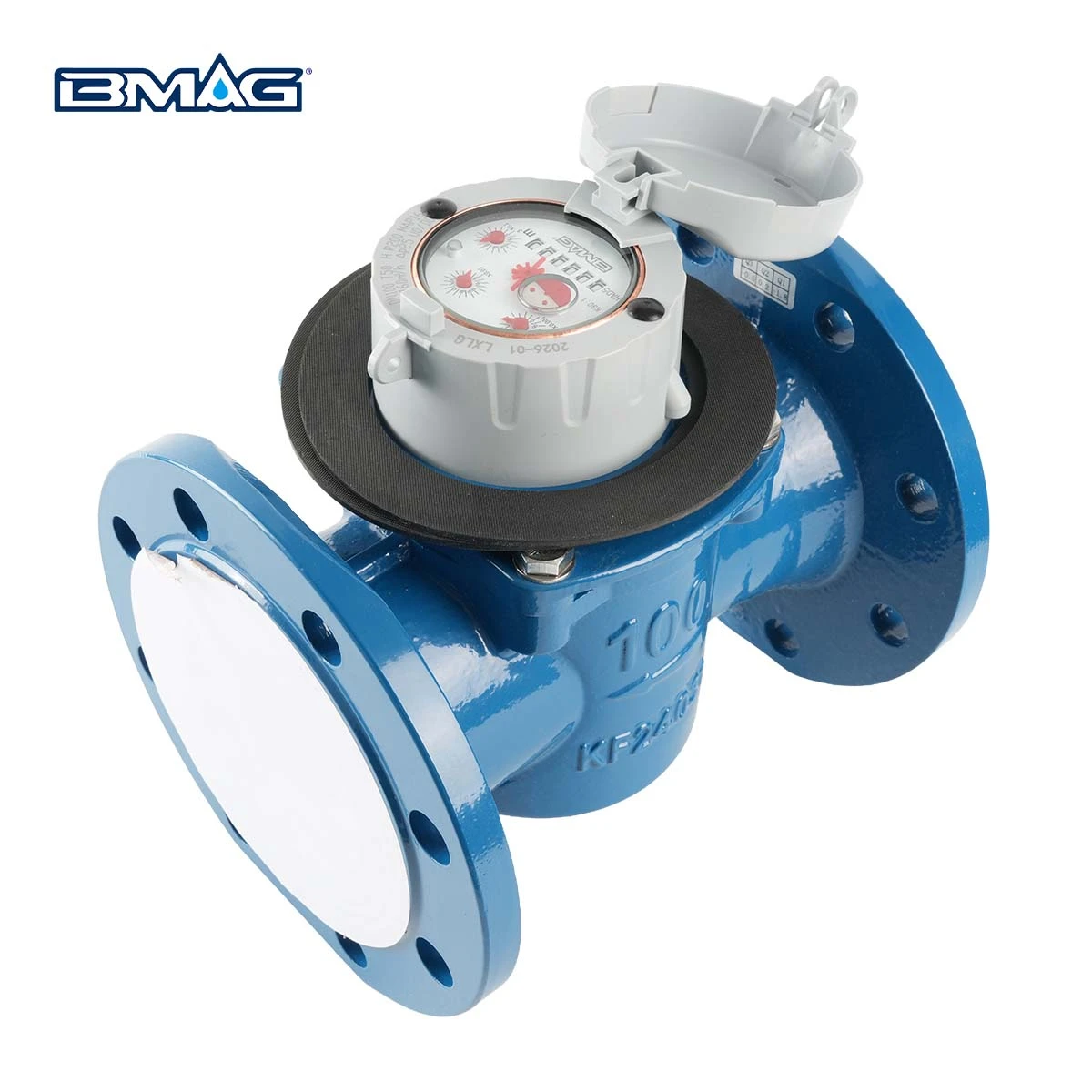

DN100 flensaansluiting watermeter Woltman WP-SDC B
BMAG DN100 Flange Connection Water Meter. R200.
| Materiaal | Cast Iron |
|---|---|
| Maat | DN40-DN300 |
| Verbinden | Flens |
| Verhouding | R80, R160, R200 |
| Puls | Optioneel |
| Coating | Optioneel |
Product Overview
Key Features
Ultra-High Precision
Adopts advanced Woltman turbine measuring mechanism to ensure high metering accuracy compliant with ISO 4064 and OIML R49 standards. It provides reliable data for billing, monitoring, and process control.
Wide Measurement Range
Features an extended flow range with low starting flow and high overload tolerance. It performs consistently in both low‑flow and high‑flow pipeline scenarios, covering full‑range water usage monitoring.
Exceptional Durability
Constructed with heavy‑duty cast iron with anti‑corrosion coating for outstanding wear, impact, and pressure resistance. Rated for 1.6 MPa working pressure, it ensures long service life in harsh industrial and outdoor environments.
Smart-Ready Design
Pre‑configured for seamless integration with remote reading systems, pulse output modules, RS485, M‑Bus, and IoT monitoring platforms. It supports digital transformation and smart water management.
Technical Specifications
- Product Name: DN50 Flange Connection Water Meter
- Body Material: Cast Iron
- Measurement Accuracy: R200
- Pressure Loss: Δ25
- Nominal Diameter: DN40–DN300 (DN50 standard)
- Connection Type: Flange Connection
- Working Pressure: 1.6 MPa (16 bar)
- Key Advantages: Ultra‑High Precision | Wide Measurement Range | Exceptional Durability | Smart‑Ready Design
Pulse output always ready, and Pulse output AS OPTION:
- The Pulse Output Device consists of a plastic housing with a Reed Switch, and 1,5 m cable with 2 cores in Red and Black
- Capacity of the Pulse Emitter:
Maat m3 /pulse DN40 to DN125 0.01/0.1/1 DN150 to DN300 0.1/1/10
Working Conditions
- Temperatuur: Geschikt voor koud water van 0-50 ℃
- Druk: ≤1,6 MPa (16 bar)
Naleving van normen
- ISO4064:2014/OIML R49
- Richtlijn 2014/32/EU betreffende meetinstrumenten
- Europese norm EN14154
Turbine Woltman Water Meter Dial Plate Design
- Dial Plate Design can be as per customer’s design
- Follow is an example of DN50 BMAG Woltman Water Meter with R200
MAXIMALE TOESTEMMINGSFOUT:
- Van Q1 inclusief tot en met maar exclusief Q2 is ± 5%
- Van Q2 tot en met Q4 is de afwijking ± 2% voor T30 en ± 3% voor T50.
Ons 35.000 m² faciliteit en 20+ jaar ervaar het terug 10 jaar kwaliteitsgarantie.
Neem contact op met onze klantenserviceteam om monsters aan te vragen en onze flexibele minimale bestelhoeveelheid te bespreken.
