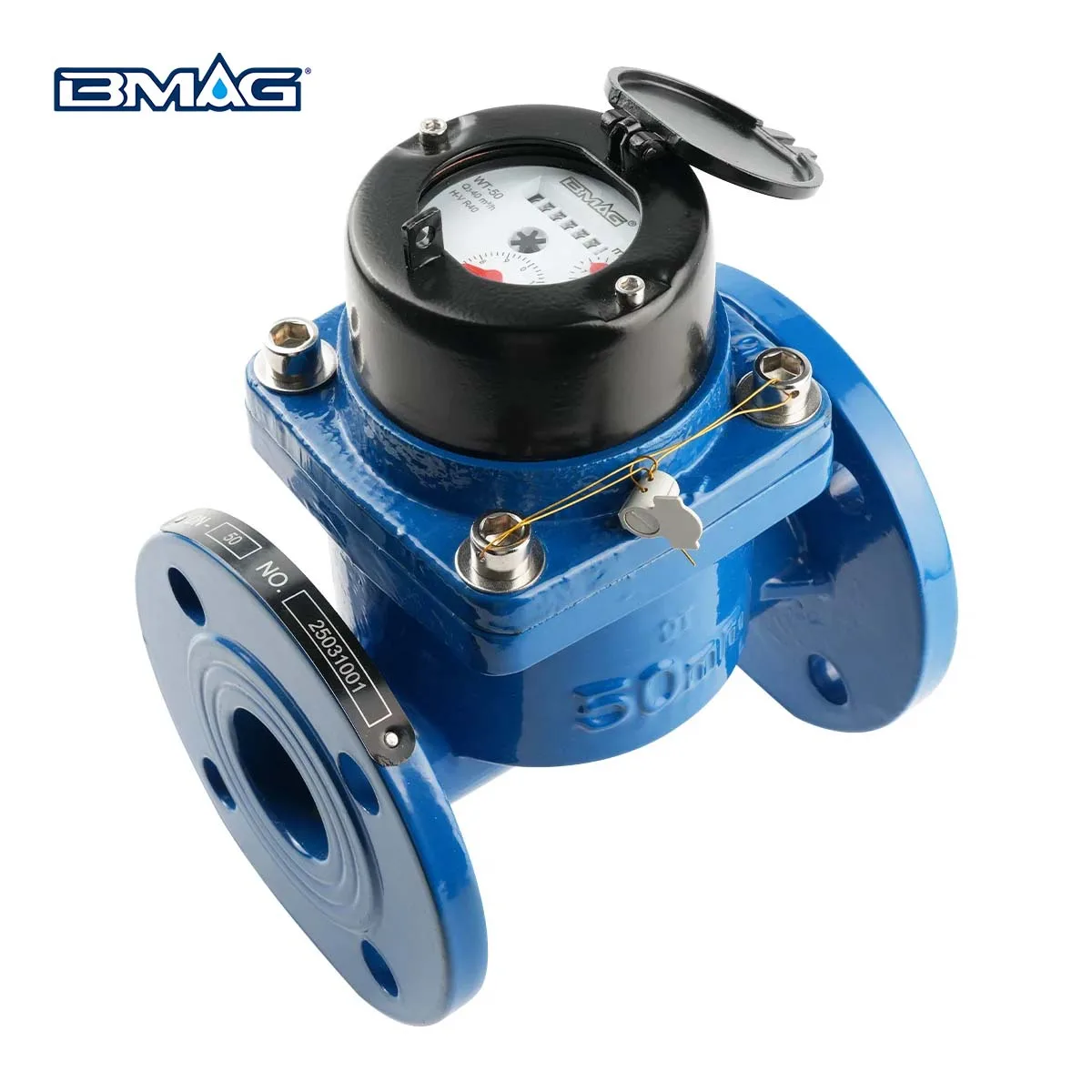

Irrigation and Agriculture Water Meter

Irrigation and Agriculture Water Meter Feature

• Irrigation and Agriculture Water Meter with magnetic transmission, super dry type register for Irrigation and Agriculture applications with sizes from Dn50 to Dn300
• Suitable for irrigation, agriculture, wastewater, and bad water quality applications
• An iron body with an inside and outside epoxy coating for protecting against corrosion
• Flange connection: DIN PN16/10, ANSI 125/150lb
• Accuracy: R40
• Flow Rate: Q3 40m³/h
• The copper can be a super dry register with IP68 protection

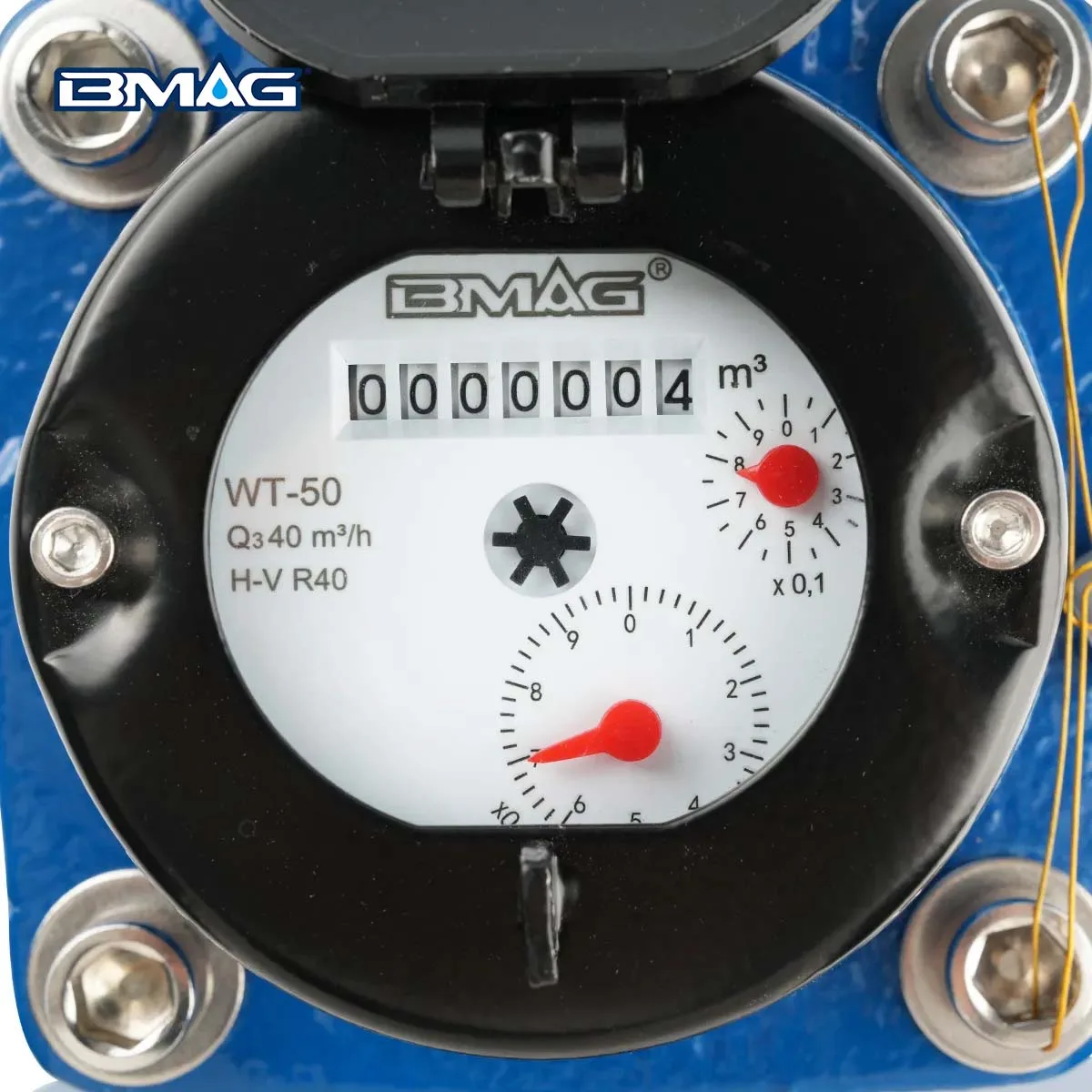

• The entire head area, including counter and transmitter, is 360° rotatable for an easy reading
• The interchangeable, removable measuring mechanism can be easily removed from the body for checking, maintaining, and replacing, no needing to dismantle the body form the pipe
• Wear-resistant plastic bearings
• Class A

Pulse output is available, details as follows:

• The Pulse Emitter Device consists of a plastic housing with a Reed Switch, and 1,5 m cable with 2 cores in Red and Black
• lectric Data: Vmax=24AC/DC; Imax=0,01A
• Capacity of the Pulse Emitter:

Working Conditions

• Temperatuur: Geschikt voor koud water van 0-50 ℃
• Druk: ≤1,6 MPa (16 bar)

Naleving van normen

• ISO4064:2014/OIML R49
• Richtlijn 2014/32/EU betreffende meetinstrumenten
• Europese norm EN14154

Dimension (Flange Standard for selecting like DIN, ANSI…)

Technische gegevens

MAXIMALE TOESTEMMINGSFOUT:

• Van Q1 inclusief tot en met maar exclusief Q2 is ± 5%
• Van Q2 tot en met Q4 is de afwijking ± 2% voor T30 en ± 3% voor T50.

Ons 35.000 m² faciliteit en 20+ jaar ervaar het terug 10 jaar kwaliteitsgarantie.

Neem contact op met onze klantenserviceteam om monsters aan te vragen en onze flexibele minimale bestelhoeveelheid te bespreken.
