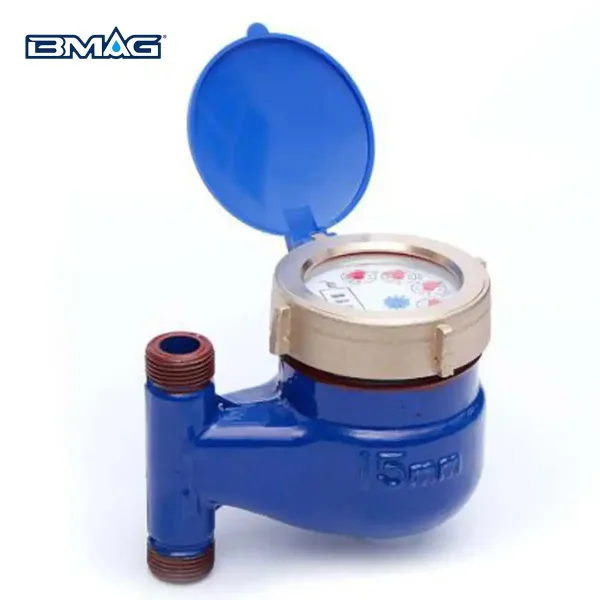

Verticale watermeter van gietijzer
Cast Iron Vertical Water Meters are suitable for vertical water meter installation. In spaces with limited length and challenging installation, a vertical water meter is the ideal choice.
The vertical water meter should be installed vertically according to the arrow direction, with the dial facing upward.
Installing it at an angle or horizontally can lead to inaccurate measurements.
| Coating | Optioneel |
|---|---|
| Verbinden | BSP-schroefdraad, NPT-schroefdraad |
| Maat | DN15-DN50 |
| Verhouding | R80 |
| Eenheid van maat | Kubieke voet, Kubieke meter, Gallons, Liter |
| Materiaal | Cast Iron |
BMAG LXSG(V) Cast Iron Vertical Water Meter Feature
- Multi jet working principle assures a long service time
- Low pressure loss
- Electrostatic painted body made of corrosion resistant iron
- Bescherming tegen externe magnetische velden
- Terugslagklep en filter beschikbaar
- Geschikt voor drinkwater en koud water tot 50 °C.
- Vrijwel geen onderhoud • Vacuümmechanisme
- Suitable for vertical water meter installation
- Accuracy Classes: Class B
Vertical Water Meter Working Conditions
- Temperatuur: Geschikt voor koud water van 0-50 ℃
- Druk: ≤1,6 MPa (16 bar)
Dial Plate Design (DN15)
Naleving van normen
- ISO4064:2014/OIML R49
- Richtlijn 2014/32/EU betreffende meetinstrumenten
- Europese norm EN14154
Mounting direction
The vertical water meter should be installed vertically according to the arrow direction, with the dial facing upward.
Installing it at an angle or horizontally can lead to inaccurate measurements.
Technical Datasheet
