Turbine Water Meters are engineered for accurate measurement of high, continuous flow rates in applications like utility distribution, industrial processes, and large-scale irrigation. Based on the proven turbine (or Woltman) principle, these meters provide dependable volume measurement for bulk water applications.

What Sets Our Turbine Meter Apart? The Integrated Inlet Stabilizer & Strainer

Standard turbine meters can be sensitive to upstream flow disturbances (like bends or valves) which can impact accuracy. Furthermore, debris common in water lines can damage the sensitive internal measuring element.

Our innovative design directly addresses these challenges with a built-in flow stabilizer and coarse strainer integrated directly into the meter’s inlet.

How the Stabilizer Works for You:

1. Flow Conditioning for Improved Accuracy: The stabilizer element corrects potential swirls and uneven flow profiles in the incoming water before it reaches the turbine mechanism. This ensures a more uniform flow velocity across the turbine blades, leading to significantly improved and more consistent measurement accuracy, even with less-than-ideal upstream piping conditions.

2. Essential Propeller/Turbine Protection: Acting as a robust initial filter, the stabilizer effectively blocks larger debris such as grass, leaves, twigs, and sediment. This crucial protection prevents the delicate turbine/propeller mechanism from jamming, sustaining damage, or breaking, drastically reducing meter failures and maintenance needs.

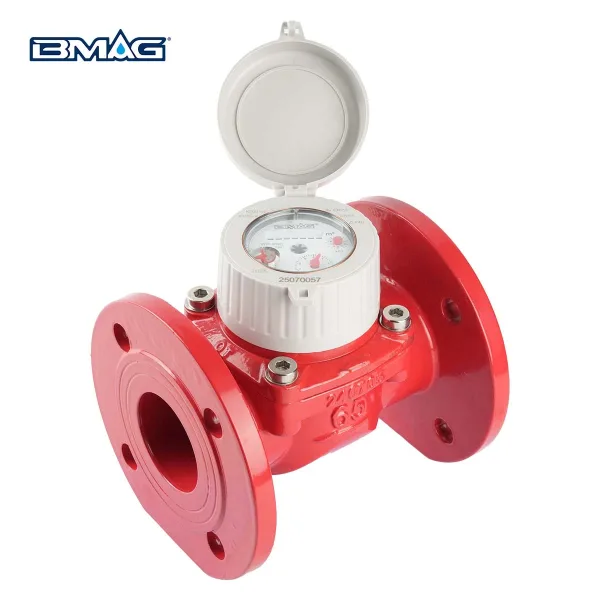

Turbine Water Meter For Hot Water Feature

• Water Temperature: Up to 90 °C hot water.

• Install It Anywhere: Mounts in any position (horizontal, vertical, or inclined) for maximum flexibility.

• Universal Flange Fit: Connects seamlessly with DIN PN16/10 and ANSI 125/150lb flanges.

• Crystal-Clear Readings: The copper can super dry register is IP68 protected, ensuring legibility even in harsh conditions. Plus, the entire head assembly (counter and transmitter) rotates 360° for easy viewing from any angle.

• Built for Durability: Features wear-resistant plastic bearings for extended service life.

• Smart Ready: Comes standard with integrated measuring outputs for easy connection to data systems.

• Reliably Accurate: Unaffected by external magnetic fields, guaranteeing consistent, trustworthy measurements over a long working life.

• ACS Certified: Meets stringent quality and safety standards.

Pulse output always ready, and Pulse output AS OPTION:

• The Pulse Output Device consists of a plastic housing with a Reed Switch, and 1,5 m cable with 2 cores in Red and Black
• Capacity of the Pulse Emitter:


  Maat	m3 /pulse
  DN40 to DN125	0.01/0.1/1
  DN150 to DN300	0.1/1/10

Working Conditions

• Temperatuur: Geschikt voor koud water van 0-50 ℃
• Druk: ≤1,6 MPa (16 bar)

Naleving van normen

• ISO4064:2014/OIML R49
• Richtlijn 2014/32/EU betreffende meetinstrumenten
• Europese norm EN14154

Turbine Woltman Water Meter Dial Plate Design

• Dial Plate Design can be as per customer’s design
• Follow is an example of DN50 BMAG Woltman Water Meter with R200

Turbine Water Meter For Hot Water with Stabilizer Drawing

MAXIMALE TOESTEMMINGSFOUT:

• Van Q1 inclusief tot en met maar exclusief Q2 is ± 5%
• Van Q2 tot en met Q4 is de afwijking ± 2% voor T30 en ± 3% voor T50.

Ons 35.000 m² faciliteit en 20+ jaar ervaar het terug 10 jaar kwaliteitsgarantie.

Neem contact op met onze klantenserviceteam om monsters aan te vragen en onze flexibele minimale bestelhoeveelheid te bespreken.
