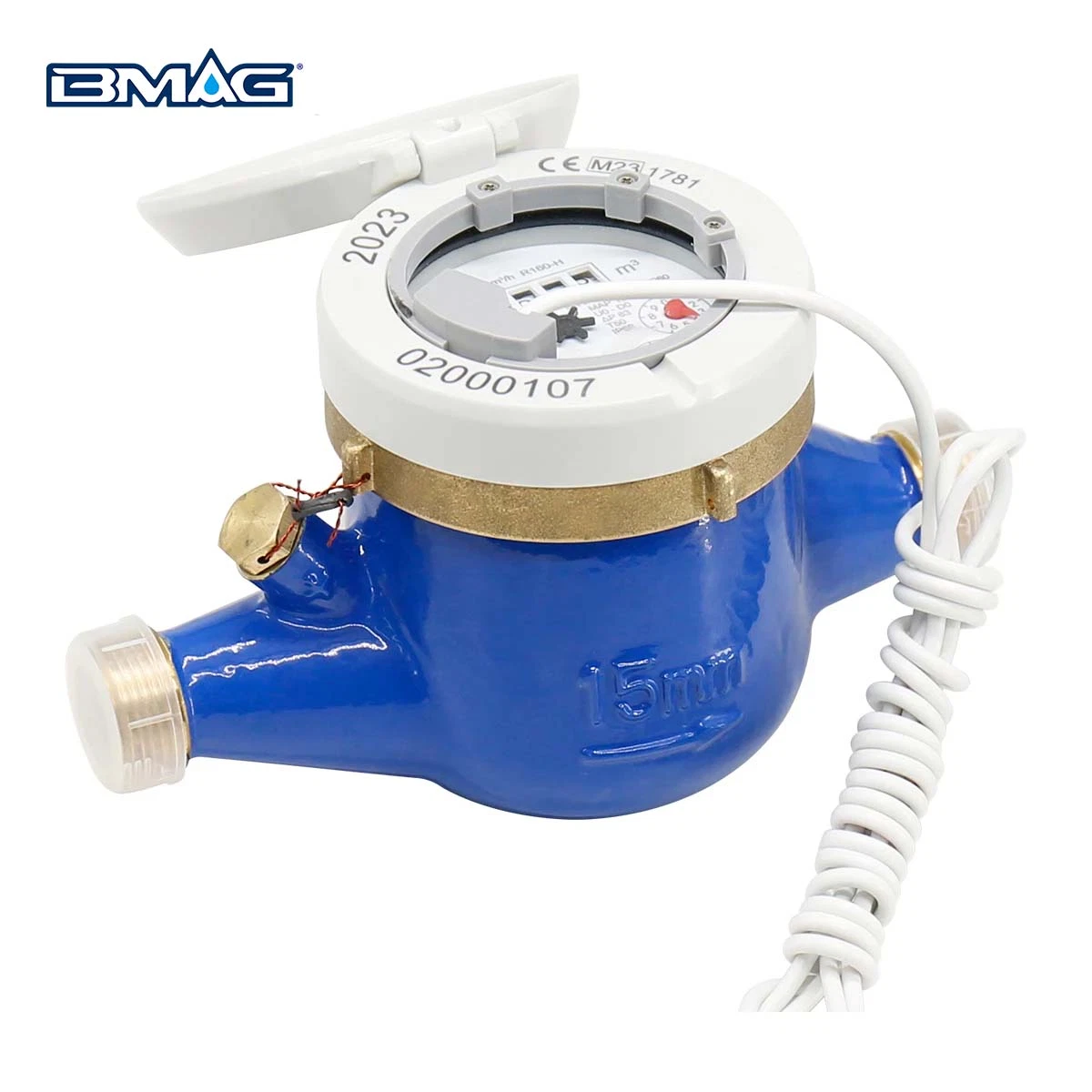

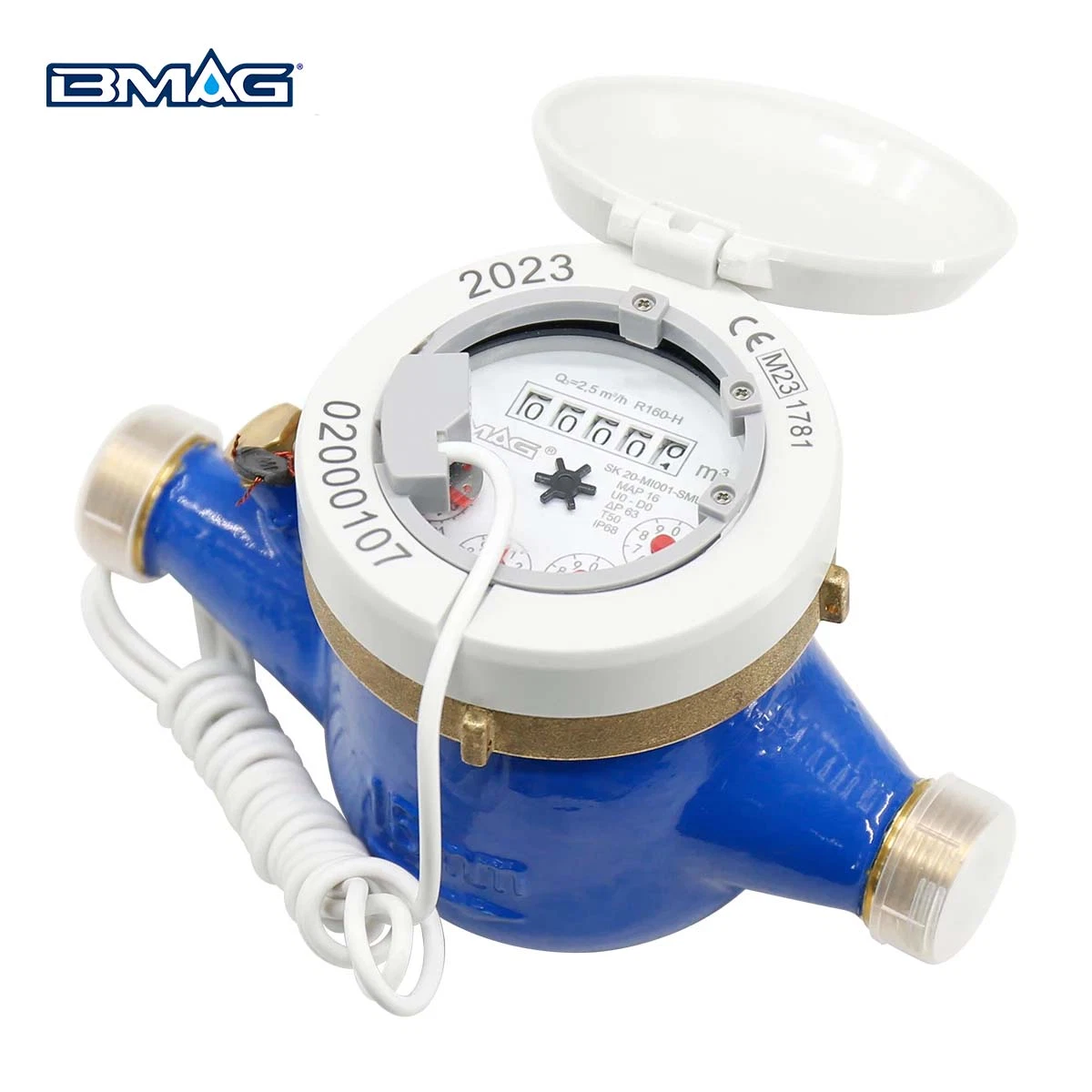

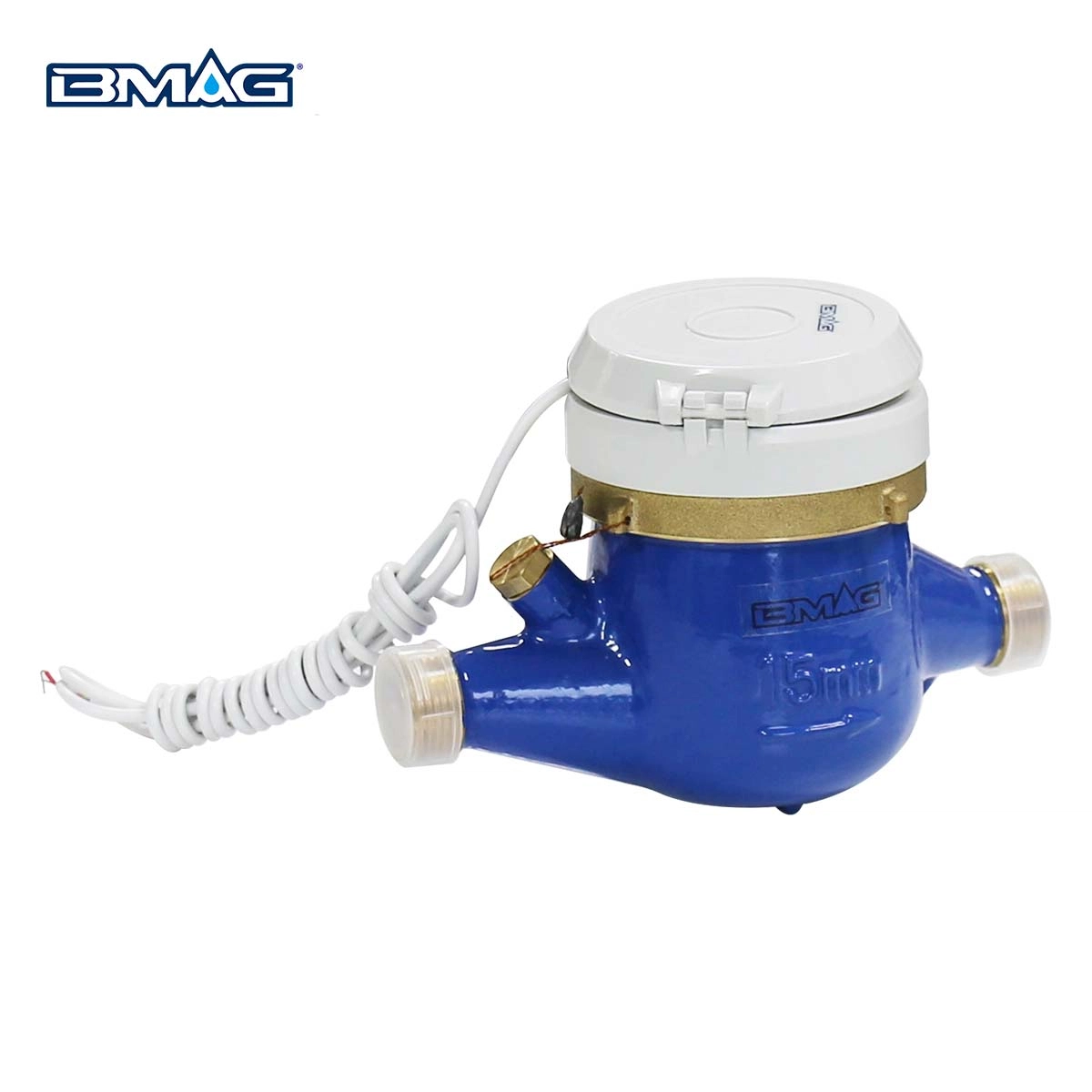

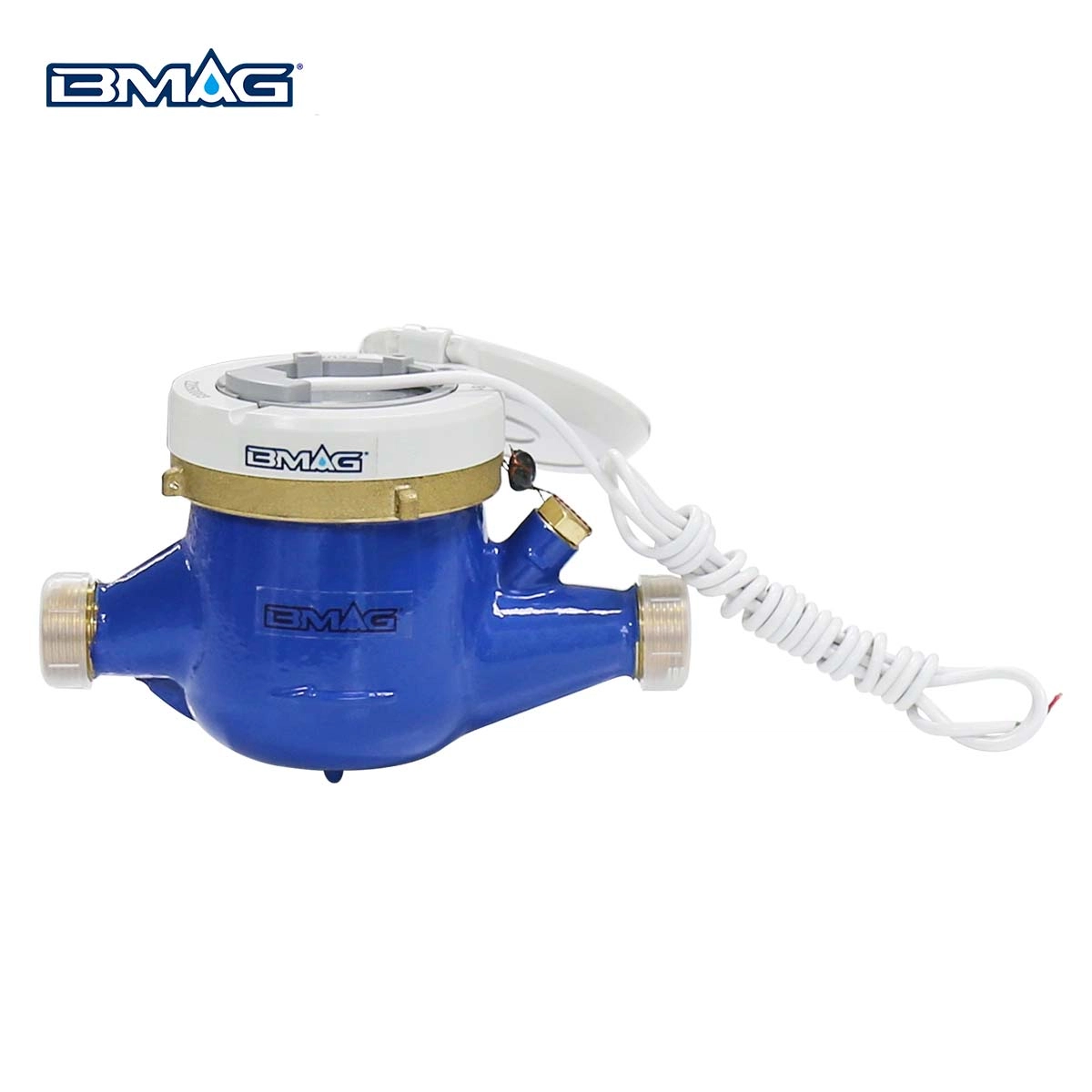

Brass Multi Jet Water Meter With Pulse Output | 360° Roating | IP68 | Remote Read

Brass Multi Jet Water Meter With Pulse Output | 360° Roating | IP68| Remote Read

BMAG Brass Multi Jet Water Meter with Pulse Output is a premium choice for those seeking a reliable, precise, and advanced water measurement solution. Its high accuracy, and compliance with international standards make it suitable for a wide range of applications. The pulse output feature is compatible with a variety of data acquisition systems and water platforms, making remote readings more convenient.

Pulse Output Features:

• Pulse water meter generates a pulse signal at a certain frequency, where each pulse represents a specific volume of water flow, such as 1 liter or 1 gallon.
• By utilizing the pulse signal, the data can be easily transmitted to a remote monitoring system or data logging device, enabling automated monitoring.Making it an ideal remote read water meter.

Benefits:

• Durability: The brass construction ensures durability and resistance to harsh environmental conditions.
• Efficient Monitoring: The pulse output feature allows for seamless integration with remote monitoring systems, facilitating efficient water usage tracking and management.
• Cost-Effective: As a remote read water meter, it eliminates the time and cost associated with sending personnel to the field to take measurements, reducing the overall operating costs.
• Precision: Complying with ISO 4064 /OIML R49 standards and got MID certificate

Application Scenarios:

This water meter is ideal for various applications, including:

• Residential Water Measurement: Enables accurate billing and water consumption tracking in homes through remote monitoring.
• Commercial Water Metering: Provides reliable and precise measurement for businesses and industrial facilities, supporting efficient water management.
• Smart Water Networks: Integrates seamlessly into smart water management systems, offering real-time data for enhanced resource allocation and management.

Specifications

• Bronze: Compliant with ISO 4064, NSF/ANSI 61, NSF/ANSI 372, EPA standards for water meters.
• Dial Lens Material：High-Strength Glass – Fog-resistant, easy to read, UV-resistant.
• Dry Type Water Meter：The counter does not come into contact with water, leading to a longer service life and no fogging issues.
• Accuracy: R160, ensuring precise meter readings.
• Waterproof Seal: Copper-sealed mechanism achieving IP68 level dust and water resistance for enhanced durability.
• Low Flow Indicator：High Sensitivity, suitable for detecting minimal leaks.
• Anti-Magnetic Water Meter: Equipped with internal anti-magnetic rings to prevent magnetic interference and cheating, ensuring accurate and reliable readings.
• Pressure Loss: Excellent internal structure design to avoid vortices and turbulence, minimizing pressure loss.
• Dial：360° rotating, making installation and reading convenient.
• Flow Rate Units: Cubic Meters (m³)
• Maximum Reading：99999.9999 m³
• Minimum Scale: 0.0001 m³

Optional

• Sizes:
  • Nominal Diameter（DN）：DN15, DN20, DN25, DN32, DN40, DN50
  • Diameter（Inch）：1/2″-2″ Inch
  • Length without coupler（mm）：165mm, 190mm, 260mm, 300mm
• Materials:
  • Brass: Brass CW617
  • Bronze: Bronze C83600
  • Cast Iron: GJS-500-7
  • Plastic: GV-5H, PA66+GF30 (Nylon 66 reinforced with 30% glass fiber), ABS
  • Stainless Steel: EU EN 1.4301 (304 Stainless Steel)
• Threads:
  • British Standard Pipe (BSP)
  • American Standard Threads (ANSI B1.20.1, NPT)
  • ISO 228
• Accuracy Classes: Class A, Class B, Class C
• Flow Rate Units: Cubic Meters (m³), Cubic Feet (ft³), Gallons (gal), Liters (L)
• Remote Communication:
  • LoRa
  • LoRaWAN
  • NB-IoT
  • GPRS
  • M-Bus
  • Electromagnetic Pulse
• Check Valve/ Non-return Valve: Optional. Control the direction of water flow and prevent backflow.
• Surface Coating: Electrostatic painted water meter body with Plastic Coating, Nickel Plating
• Dial Lens Material: High-strength Glass, Plastic
• Mechanism: Plastic Sealed Mechanism, Copper/Stainless Steel Sealed Mechanism
• Accessories: Various complementary accessories

Water Meter Working Conditions

• Operating Temperature:
  • Cold Water Meter: 30°C (86°F), 50°C (122°F)
  • Hot Water Meter: 90°C (194°F)
• Maximum Working Pressure (P): 16 bar (PN16) / 1.6 MPa
• Mounting direction:Horizontal installation. Inclined or angle changes might reduce water meter’s accuracy.

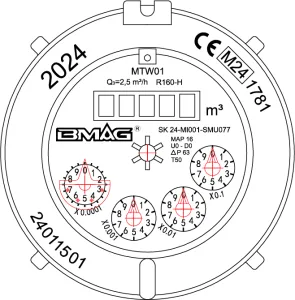

Dial Plate Design (DN15, R160)

Standards Compliance

• International Standard：ISO 4064 / OIML R49
• European standard：EN 14154 / MID 2004/22/EC / MID 2014/32/EU
• American Standard：NSF/ANSI 61 / NSF/ANSI 372 / ASTM F1390 / AWWA C700 / AWWA C701 / AWWA C705 / AWWA C706 / AWWA C708 / AWWA C712

Dimension

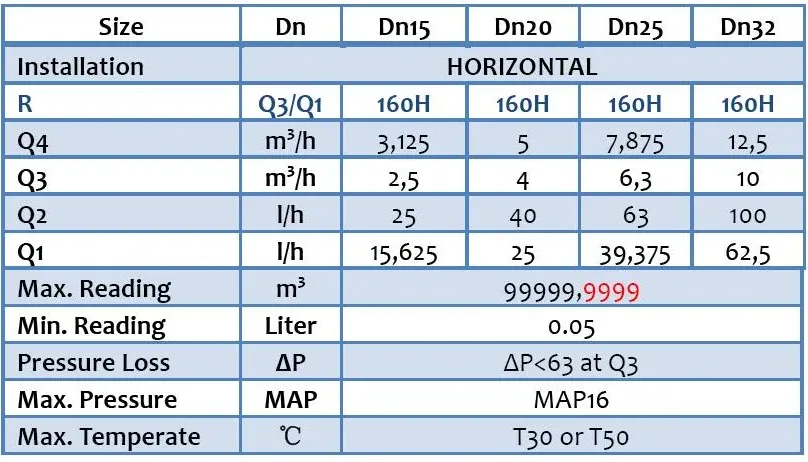

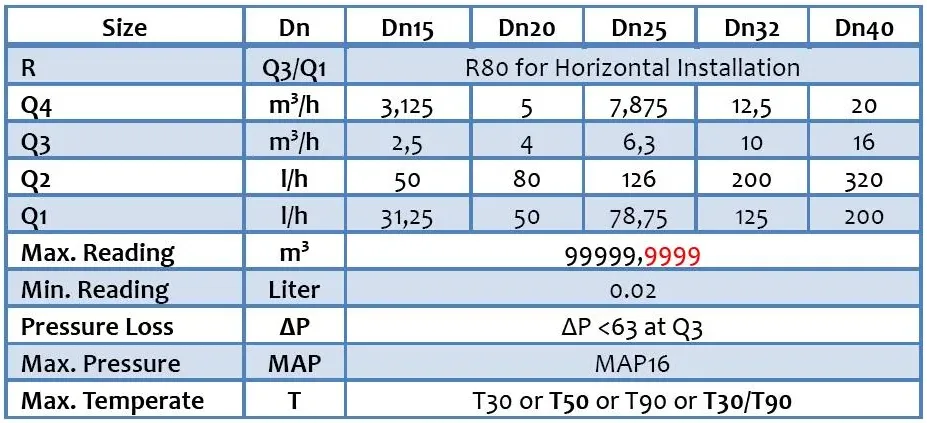

Technical Data

Our 35,000 m² facility and 20+ years experience back our 10-year quality guarantee.

Connect with our customer service team to request samples and discuss our flexible minimum order policies.
