Non-Magnetic Inductive Water Meter | Single Jet

Non-Magnetic Inductive Water Meter | Single Jet

Non-Magnetic Inductive Water Meter can effectively prevent water theft caused by magnetic field interference and protect the property of water companies.

Key Features:

• IP68 Rating: This water meter is designed to meet the stringent IP68 standard, ensuring complete protection against dust and continuous immersion in water. It is an ideal choice for harsh environments where reliability is crucial.
• Material: Constructed from high-quality brass, the Brass single jet water meter is highly resistant to impact, corrosion, and high temperatures. It can operate stably at temperatures up to 90°C, making it suitable for a wide range of applications.
• Structure: The single jet design is simple and cost-effective, ensuring lower production costs without compromising on performance. This makes it an excellent option for both residential and commercial water meter use.
• Applications: Widely used in civil and indoor water meter applications, the BMAG water meter is versatile and adaptable to various environments.
• Accuracy: With an impressive accuracy class of R160, this water meter ensures precise measurement and reliable data collection.
• Sealed Register: The water meter features a copper or stainless steel sealed register mechanism, providing robust and reliable performance. The sealed register ensures the internal components are protected from water ingress, achieving an IP68 waterproof rating.
• Anti-magnetic: Use a Non-Magnetic Sensor to prevent water theft.

Benefits:

• Durability: The brass construction ensures long-lasting durability, even in challenging environments. Its resistance to corrosion and high temperatures makes it a reliable choice for long-term use.
• Cost-Effective: The simple structure of the single jet water meter reduces production costs, making it an economical choice for large-scale installations.
• Precision: The high R160 accuracy class ensures precise water measurement, which is critical for billing and resource management in both residential and commercial settings.
• Compliance: This water meter complies with international regulations, ensuring it meets the highest standards of accuracy and reliability.
• User-Friendly: The 360° rotating dial feature enhances the water meter by allowing the dial to rotate, making it easier to read in situations with poor viewing angles.

Non-Magnetic Inductive Water Meter Feature

• Single jet working principle assures a long service time
• Low pressure loss, high sensitivity at initial flow
• Special glass with high resistance to pressure and impact available
• Electrostatic painted body made of corrosion resistant brass
• Protection against external magnetic fields
• Pulseoutput and AMR reading features are optional
• Non-return valve and filter available
• Suitablefor potable water, cold water up to 50°C
• Almost no maintenance • Vacuumed mechanism

Working Conditions

• Temperature: Available for cold water 0-50 ℃
• Pressure: ≤1.6MPa ( 16bars)

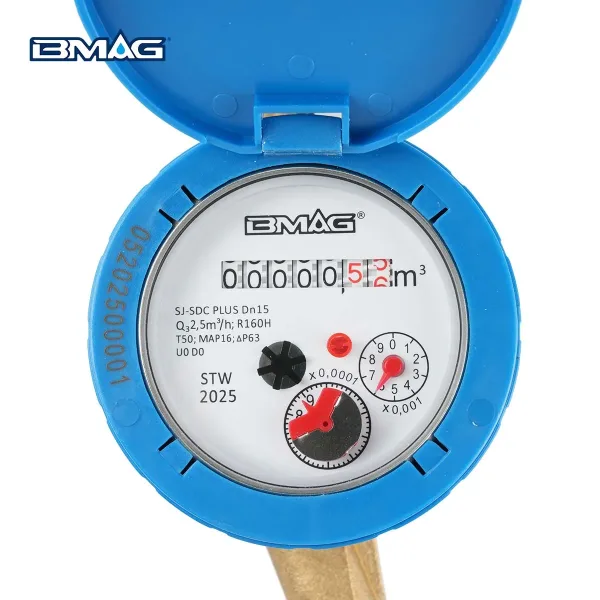

Dial Plate Design (DN15, R160)

Standards Compliance

• ISO4064:2014/OIML R49
• Directive 2014/32/EU on measuring instruments
• European Standard EN14154

Technical Data

Max. Permission error

Head loss curve
