Turbine Water Meter with Stabilizer

Turbine Water Meter with Stabilizer

Turbine Water Meters are engineered for accurate measurement of high, continuous flow rates in applications like utility distribution, industrial processes, and large-scale irrigation. Based on the proven turbine (or Woltman) principle, these meters provide dependable volume measurement for bulk water applications.

What Sets Our Turbine Meter Apart? The Integrated Inlet Stabilizer & Strainer

Standard turbine meters can be sensitive to upstream flow disturbances (like bends or valves) which can impact accuracy. Furthermore, debris common in water lines can damage the sensitive internal measuring element.

Our innovative design directly addresses these challenges with a built-in flow stabilizer and coarse strainer integrated directly into the meter’s inlet.

How the Stabilizer Works for You:

1. Flow Conditioning for Improved Accuracy: The stabilizer element corrects potential swirls and uneven flow profiles in the incoming water before it reaches the turbine mechanism. This ensures a more uniform flow velocity across the turbine blades, leading to significantly improved and more consistent measurement accuracy, even with less-than-ideal upstream piping conditions.

2. Essential Propeller/Turbine Protection: Acting as a robust initial filter, the stabilizer effectively blocks larger debris such as grass, leaves, twigs, and sediment. This crucial protection prevents the delicate turbine/propeller mechanism from jamming, sustaining damage, or breaking, drastically reducing meter failures and maintenance needs.

Turbine Water Meter Feature

• Install It Anywhere: Mounts in any position (horizontal, vertical, or inclined) for maximum flexibility.

• Universal Flange Fit: Connects seamlessly with DIN PN16/10 and ANSI 125/150lb flanges.

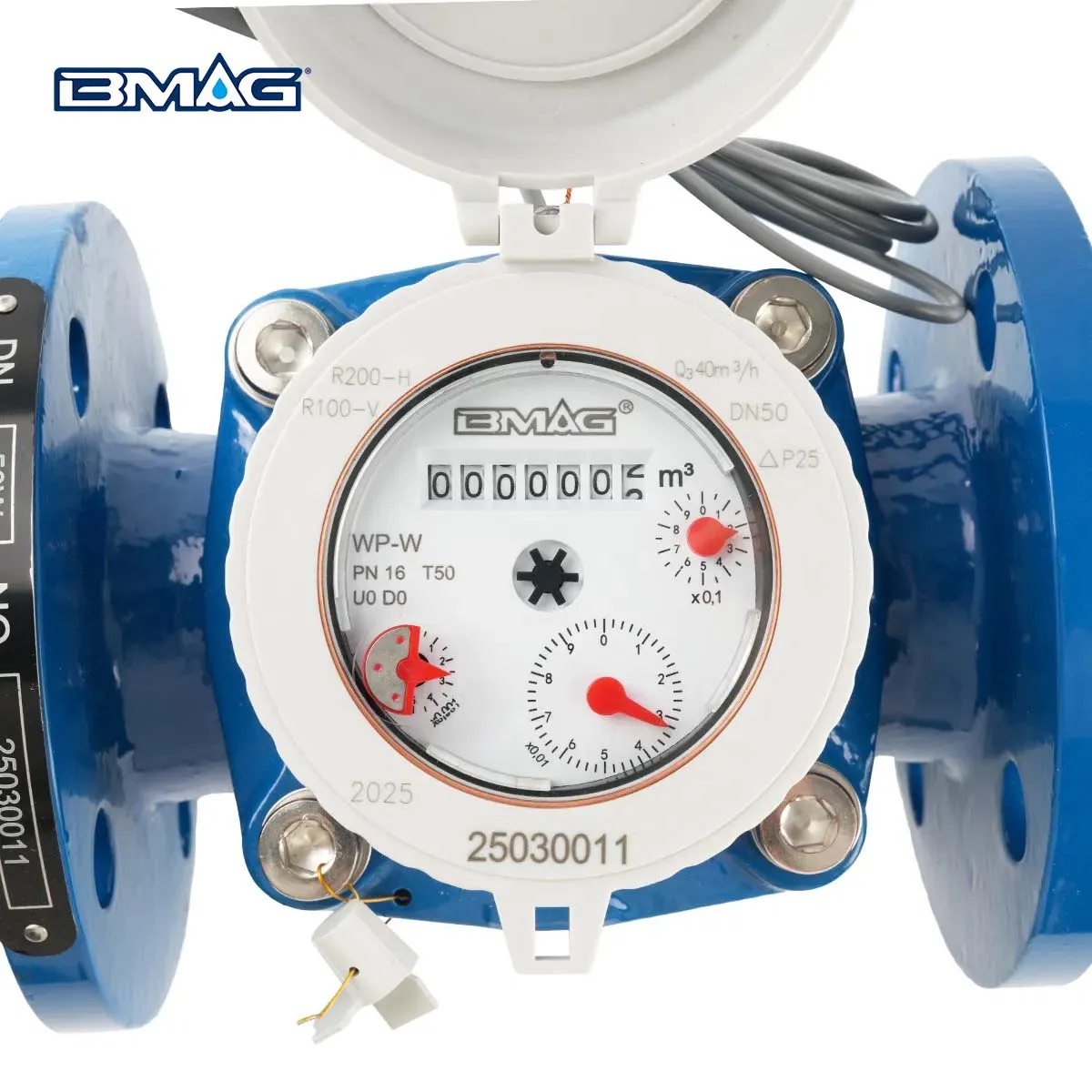

• Crystal-Clear Readings: The copper can super dry register is IP68 protected, ensuring legibility even in harsh conditions. Plus, the entire head assembly (counter and transmitter) rotates 360° for easy viewing from any angle.

• Built for Durability: Features wear-resistant plastic bearings for extended service life.

• Smart Ready: Comes standard with integrated measuring outputs for easy connection to data systems.

• Reliably Accurate: Unaffected by external magnetic fields, guaranteeing consistent, trustworthy measurements over a long working life.

• ACS Certified: Meets stringent quality and safety standards.

Pulse output always ready, and Pulse output AS OPTION:

• The Pulse Output Device consists of a plastic housing with a Reed Switch, and 1,5 m cable with 2 cores in Red and Black
• Capacity of the Pulse Emitter:


  Size	m3 /pulse
  DN40 to DN125	0.01/0.1/1
  DN150 to DN300	0.1/1/10

Working Conditions

• Temperature: Available for cold water 0-50 ℃
• Pressure: ≤1.6MPa ( 16bars)

Standards Compliance

• ISO4064:2014/OIML R49
• Directive 2014/32/EU on measuring instruments
• European Standard EN14154

Turbine Woltman Water Meter Dial Plate Design

• Dial Plate Design can be as per customer’s design

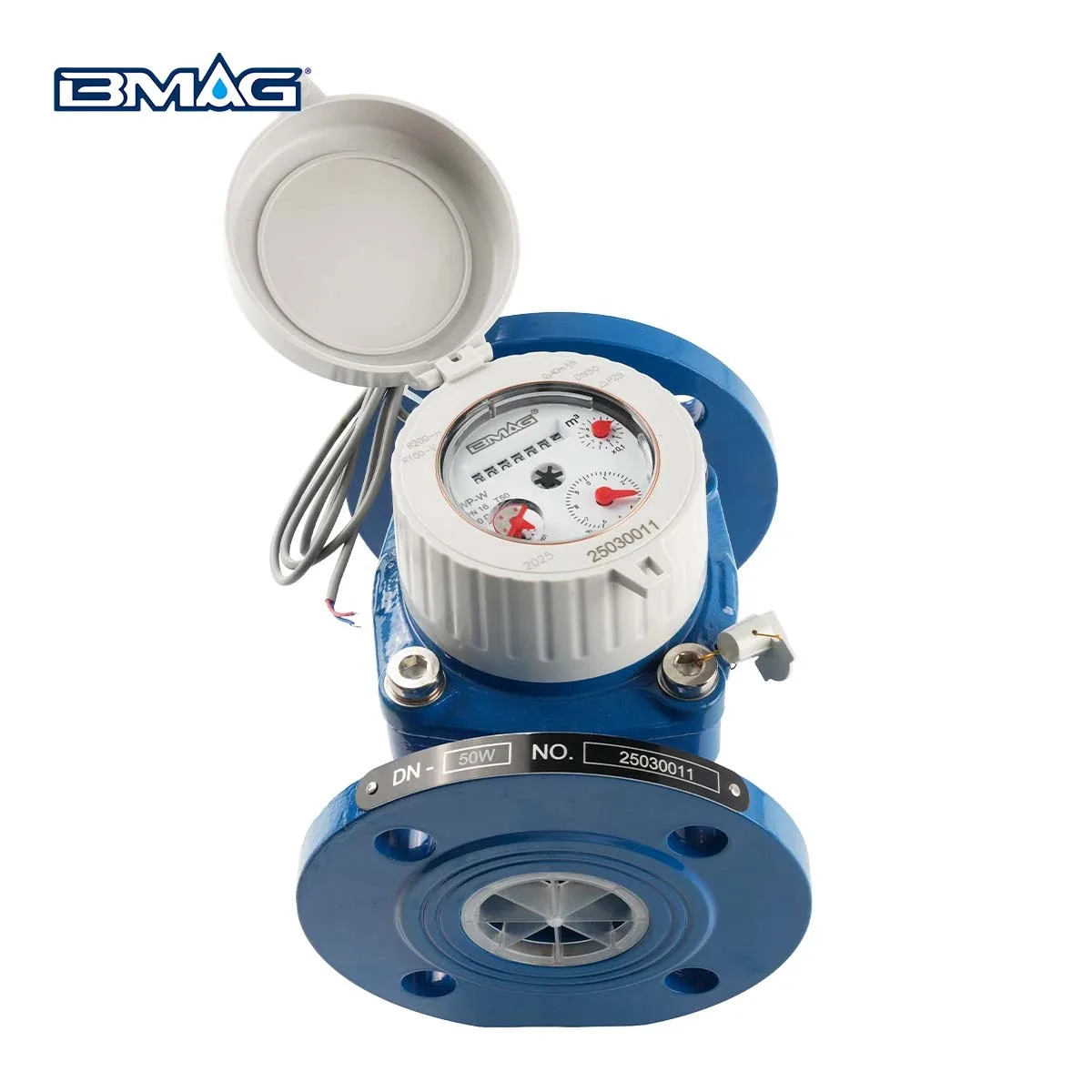

• Follow is an example of DN50 BMAG Woltman Water Meter with R200

Turbine Water Meter with Stabilizer Drawing

MAX. PERMISSION ERROR:

• From Q1 inclusive up to but excluding Q2 is ± 5%
• From Q2 inclusive up to and including Q4 is ± 2% for T30 and ± 3% for T50

Our 35,000 m² facility and 20+ years experience back our 10-year quality guarantee.

Connect with our customer service team to request samples and discuss our flexible minimum order policies.
