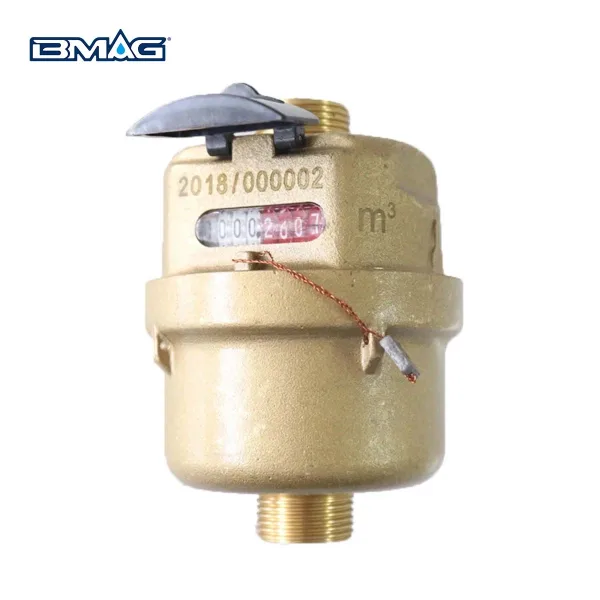

Discover precision and reliability with the BMAG Brass Volumetric Water Meter, designed to excel in low-flow, high-accuracy environments such as residential and small-scale commercial applications. Crafted from premium brass materials, this volumetric water meter meets.

Key Features:

• Robust Construction: Engineered from durable brass, ensuring longevity and resistance to corrosion in diverse environmental conditions.Qualified brass water meter.
• High Accuracy:Brass volumetric water meter achieves an exceptional R200 precision class, guaranteeing precise measurement of water consumption.
• Versatile Application: Ideal for measuring cold water flow in various settings including homes, small businesses, and similar low-flow scenarios cold water meter.
• Seal Register Technology: Incorporates a copper or stainless steel seal register canister, enhancing durability and maintaining accurate readings over time.
• Certified Performance: Complies with ISO 4064 standards, underscoring its reliability and suitability for international markets.

Applications:

• Residential Use: Perfect for monitoring water consumption in households, ensuring accurate billing and conservation efforts.
• Commercial Settings: Suitable for small-scale commercial enterprises where precise water management is crucial.

Specifications

• Brass: ISO4064:2014/OIML R49, suitable for potable water.
• Dial Lens Material：High-Strength Glass – Fog-resistant, easy to read, UV-resistant.
• Rotary Piston Water Meter (Volumetric Meter): Mechanical drive with liquid filled registerInner Non Return Valve
• Kesinlik:Higher accuracy in R160 or R200, Install in any position
• Low Flow Indicator：High Sensitivity, suitable for detecting minimal leaks.
• Basınç Kaybı: Excellent internal structure design to avoid vortices and turbulence, minimizing pressure loss.
• Flow Rate Units: Cubic Meters (m³)
• Maximum Reading：9999.9999 m³ / 99999,999 m³

Optional

• Sizes:
  • Nominal Diameter（DN）：DN15, DN20, DN25, DN32, DN40
  • Diameter（Inch）： 1/2”, 3/4”, 1”, 1 1/4”, 1 1/2”
  • Length without coupler（mm）：115mm, 130mm, 175mm, 260mm, 300mm
• Materials:
  • Brass: Hpb59-1
  • Plastic: GV-5H, PA66+GF30 (Nylon 66 reinforced with 30% glass fiber), ABS
• Threads:
  • British Standard Threads (BST/BS 21 Standard = ISO 228, BSP)
  • American Standard Threads (ANSI B1.20.1, NPT)
• Accuracy Classes: Class A, Class B, Class C
• Flow Rate Units: Cubic Meters (m³), Cubic Feet (ft³), Gallons (gal), Liters (L)
• Remote Communication:
  • LoRa
  • LoRaWAN
  • NB-IoT
  • GPRS
  • M-Bus
  • Electromagnetic Pulse
• Check Valve/ Non-return Valve: Optional. Control the direction of water flow and prevent backflow.
• Surface Coating: Electrostatic painted water meter body with Plastic Coating, Nickel Plating
• Dial Lens Material: High-strength Glass, Plastic
• Mechanism: Plastic Sealed Mechanism, Copper/Stainless Steel Sealed Mechanism
• Accessories: Various complementary accessories

Water Meter Working Conditions

• Operating Temperature:
  • Suitable for potable water, cold water up to 50°C
• Maximum Working Pressure (P): 16 bar (PN16) / 1.6 MPa
• Mounting direction:Horizontal installation. Inclined or angle changes might reduce water meter’s accuracy.

Dial Plate Design (R160/R200)

Standards Compliance

• International Standard：ISO 4064 / OIML R49
• European standard：EN 14154 / MID 2004/22/EC / MID 2014/32/EU

Dimension

Technical Data

Our 35,000 m² facility and 20+ years experience back our 10-year quality guarantee.

Connect with our customer service team to request samples and discuss our flexible minimum order policies.
