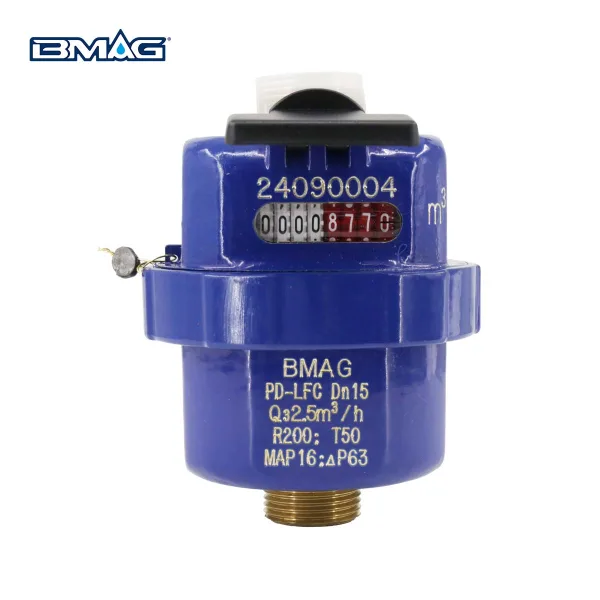

Brass Volumetric Rotary Piston Water Meter
The Volumetric Rotary Piston Water Meter is a precise and reliable device for measuring water consumption in residential, commercial, and industrial settings. Utilizing a rotary piston mechanism, it accurately measures the volume of water flowing through the meter. As water flows, it drives a piston that rotates within a chamber, ensuring reliable readings across various flow rates.
| Pulse | Optional |
|---|---|
| Coating | Optional |
| Material | Brass |
| Unit Of Measure | Cubic feet, Cubic meter, Gallons, Litre |
| Size | DN15-DN40 |
Brass Volumetric Rotary Piston Water Meter
The Volumetric Rotary Piston Water Meter is a precise and reliable device for measuring water consumption in residential, commercial, and industrial settings. Utilizing a rotary piston mechanism, it accurately measures the volume of water flowing through the meter. As water flows, it drives a piston that rotates within a chamber, ensuring reliable readings across various flow rates.
Key features include high accuracy, durability, and easy installation, making it suitable for diverse household applications, irrigation systems, and industrial processes. Its robust construction allows it to withstand harsh environments while delivering consistent performance.
Ideal for effective water management, the Volumetric Rotary Piston Water Meter combines efficiency with reliability, making it a preferred choice for monitoring water usage.
Key Features:
- Robust Construction: Engineered from durable brass, ensuring longevity and resistance to corrosion in diverse environmental conditions.Qualified brass water meter.
- High Accuracy: Brass volumetric water meter achieves an exceptional R200 precision class, guaranteeing precise measurement of water consumption.
- Versatile Application: Ideal for measuring cold water flow in various settings including homes, small businesses, and similar low-flow scenarios cold water meter.
- Seal Register Technology: Incorporates a copper or stainless steel seal register canister, enhancing durability and maintaining accurate readings over time.
- Certified Performance: Complies with ISO 4064 standards, underscoring its reliability and suitability for international markets.
Applications:
- Residential Use: Perfect for monitoring household water consumption, ensuring accurate billing and conservation efforts.
- Commercial Settings: Suitable for small-scale commercial enterprises where precise water management is crucial.
Specifications
- Brass: ISO4064:2014/OIML R49, suitable for potable water.
- Dial Lens Material: High-Strength Glass – Fog-resistant, easy to read, UV-resistant.
- Volumetric Rotary Piston Water Meter: Mechanical drive with liquid-filled registerInner Non-Return Valve
- Kesinlik: Higher accuracy in R160 or R200
- Basınç Kaybı: Excellent internal structure design to avoid vortices and turbulence, minimizing pressure loss.
- Flow Rate Units: Cubic Meters (m³)
- Maximum Reading：9999.9999 m³ / 99999,999 m³
Optional
- Sizes:
- Nominal Diameter(DN): DN15, DN20, DN25, DN32, DN40
- Diameter(Inch): 1/2”, 3/4”, 1”, 1 1/4”, 1 1/2”
- Length without coupler(mm): 115mm, 130mm, 175mm, 260mm, 300mm
- Materials:
- Brass: Hpb59-1
- Plastic: GV-5H, PA66+GF30 (Nylon 66 reinforced with 30% glass fiber), ABS
- Threads:
- British Standard Threads (BST/BS 21 Standard = ISO 228, BSP)
- American Standard Threads (ANSI B1.20.1, NPT)
- Accuracy Classes: Class A, Class B, Class C
- Flow Rate Units: Cubic Meters (m³), Cubic Feet (ft³), Gallons (gal), Liters (L)
- Remote Communication:
- Electromagnetic Pulse
- Check Valve/ Non-return Valve: Optional. Control the direction of water flow and prevent backflow.
- Surface Coating: Electrostatic painted water meter body with Plastic Coating
- Dial Lens Material: High-strength Glass, Plastic
- Mechanism: Plastic Sealed Mechanism, Copper/Stainless Steel Sealed Mechanism
- Accessories: Various complementary accessories
Water Meter Working Conditions
- Operating Temperature:
- Suitable for potable water, cold water up to 50°C
- Maximum Working Pressure (P): 16 bar (PN16) / 1.6 MPa
- Mounting direction: Horizontal installation. Inclined or angle changes might reduce water meter’s accuracy.
Dial Plate Design (R160/R200)
Standards Compliance
- International Standard：ISO 4064 / OIML R49
- European standard：EN 14154 / MID 2004/22/EC / MID 2014/32/EU
Dimension
Technical Data
Max. Permission Error
From Q1 inclusive up to but excluding Q2 is ± 5%
From Q2 inclusive up to and including Q4 is ± 2% for T30 and ± 3% for T50
