BMAG PMD Bronz Pozitif Deplasmanlı Su Sayacı | Galon | ABD Pazarı
Bronze Positive Displacement Water Meters are renowned for their exceptional durability and long service life. Their outstanding corrosion resistance is a key factor in their extended lifespan, requiring less maintenance and lower operational costs. Owing to their high-strength metal construction, bronze positive displacement water meters effectively deter tampering, making them a reliable choice for critical metering applications.
| Material | Lead Free |
|---|---|
| Pulse | Optional |
| Size | 5/8*1/2"-2" |
| Unit Of Measure | Cubic feet, Cubic meter, Gallons |

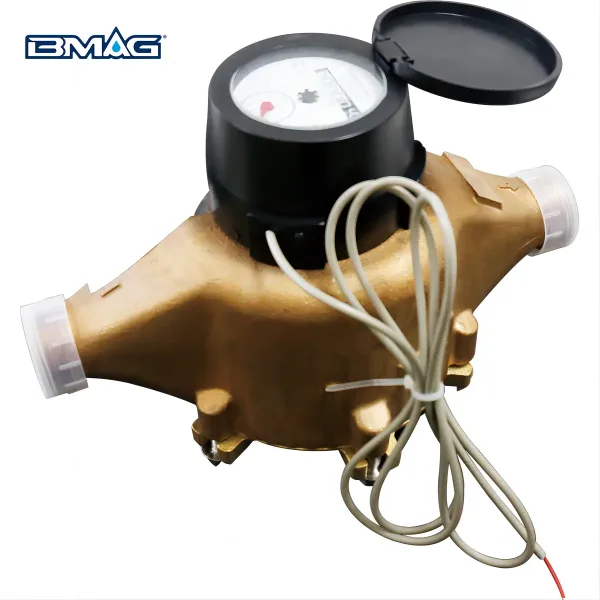

BMAG PMD Bronze Positive Displacement Water Meter | Gallon | USA Market
Bronze Positive Displacement Water Meters are renowned for their exceptional durability and long service life. Their outstanding corrosion resistance is a key factor in their extended lifespan, requiring less maintenance and lower operational costs.
Owing to their high-strength metal construction, bronze positive displacement water meters effectively deter tampering, making them a reliable choice for critical metering applications.
- Positive Displacement (Volumetric), Rotating Piston design water meter with Super Dry Type Register from size 5/8X1/2″ to 2″
- Meets to AWWA C700 with NSF-61 Certification
- It is a bottom loaded Water Meter which consists of three basic components: main body, measuring chamber and a sealed register.
- All the Materials in contact with water, consciously selected by the known resistance to corrosion
- The body without coating made by lead free bronze (C89833) and the Coupling (touch with water) made by lead free brass (C69300)
- Measuring Chambers are constructed of a durable synthetic polymer
- Protection against external magnetic fields
- Available for optical reading /360°rotating lid
- Pulse output and AMR reading features are optional
- Gallon, Cubic meter, Cubic feet reading for selection
Positive Displacement Water Meter Working Conditions
- Temperature: 105F for cold water,160F for hot water
- Working Pressure: 300psi
Dimension
Technical Data
MAX. PERMISSION ERROR:
Low Flow Limits: the meter shall register not less than 95% and not more than 101% of the water actually passed through the meter.
