BMAG WP-SDC 着脱式タービン式ウォルトマン水道メーター | ISO 4064 | R200

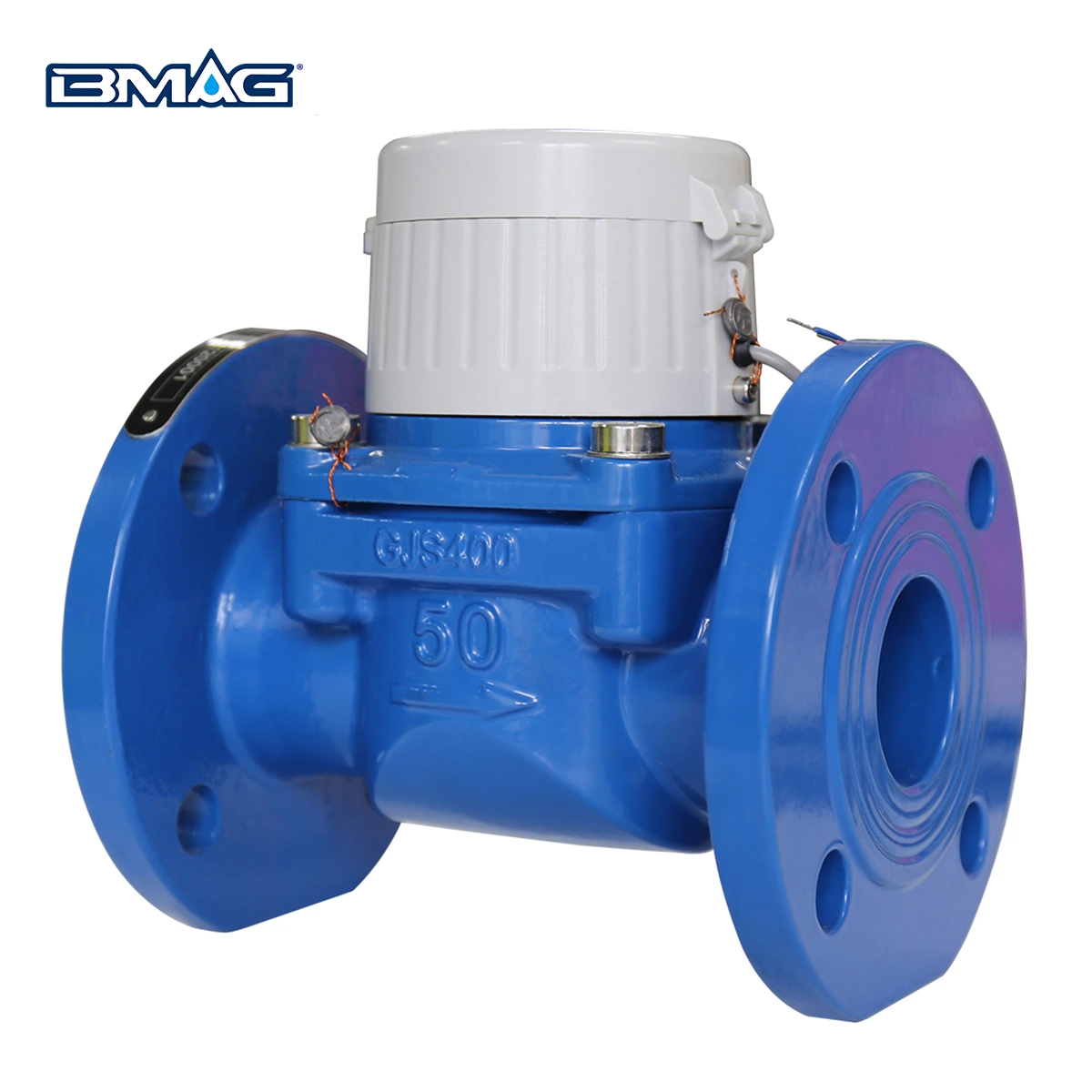

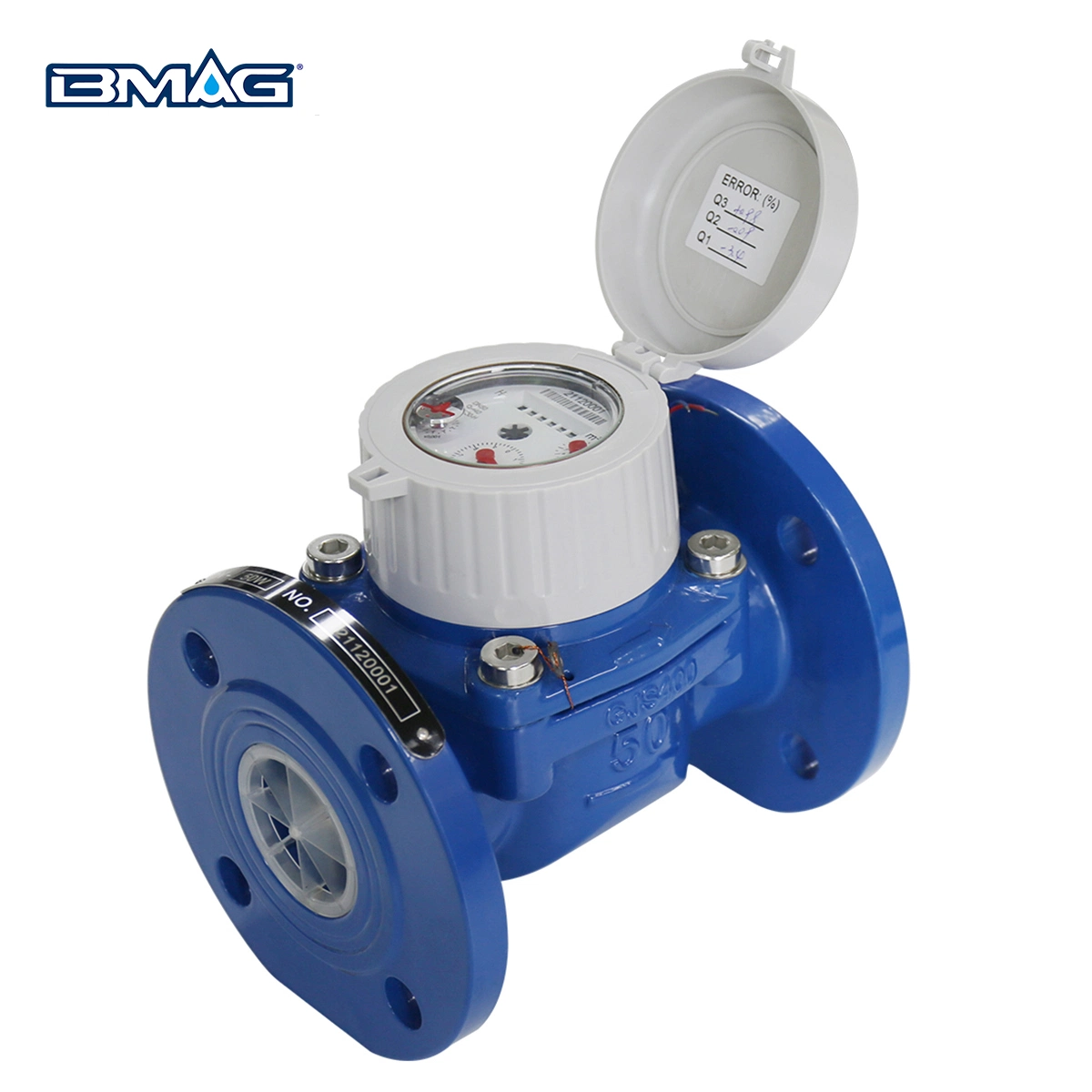

BMAG WP-SDC Removable Element Turbine Woltman Water Meter

BMAG’s turbine woltman water meters are designed with an iron body and outside epoxy coating, making them highly resistant to rust and abrasion. These features make them a popular choice for industrial and agricultural applications. The turbine water meters’ durable construction ensures long-lasting performance, making them a reliable solution for measuring water flow in a variety of settings. With their ability to withstand harsh environments, BMAG’s turbine water flow meters are an excellent choice for industrial and bulk water metering applications.

One of the key features of BMAG’s turbine water meters is their accuracy. These meters can achieve an R200 precision rating, which meets the stringent requirements of the ISO 4064 and OIML R49 standards.     This level of accuracy ensures that water consumption is measured precisely, allowing for efficient water management and accurate billing. The turbine water meters suitability for a wide range of applications, from industrial facilities to agricultural operations.

Another notable aspect of BMAG’s turbine water meters is their waterproof capabilities. These meters feature a copper seal register, which allows them to achieve IP68 waterproof rating.   This means that the meters can withstand prolonged submersion in water, making them ideal for use in environments where they may be exposed to moisture or even complete submersion. The IP68 rating ensures the reliability and longevity of BMAG’s turbine water meters, even in the most challenging water-related applications.

Turbine Woltman Water Meter Feature

• It is a flanged mechanical turbine water meter for industrial and irrigation application, cover the size from DN40 to DN300 (1-1/2 inch to 12 inch).
• It was designed with super high measuring range and be able to reach flow profile at UoD0 installation.
• Iron body with inside and outside epoxy coating for protecting the corrosion
• Pattern approved removable measuring element
• Any installation position
• Flange connection: DIN PN16/10, ANSI 125/150lb
• The copper can super dry register with IP68 protection
• The entire head area including counter and transmitter is 360° rotatable for an easy reading
• Wear-resistant plastic bearings
• Integrated measuring outputs as a standard
• No effected by external magnetic fields
• Long working life and optimum accuracy
• Pulse output is available
• ACS certificated

Specifications

• Dial Lens 材料：High-Strength Glass – Fog-resistant, easy to read, UV-resistant.
• Dry Type Water Meter：The counter does not come into contact with water, leading to a longer service life and no fogging issues.
• 正確さ: R160/R200/R80, ensuring precise meter readings.
• Waterproof Seal: Copper-sealed mechanism achieving IP68 level dust and water resistance for enhanced durability.
• Low Flow Indicator：High Sensitivity, suitable for detecting minimal leaks.
• Anti-Magnetic Water Meter: Equipped with internal anti-magnetic rings to prevent magnetic interference and cheating, ensuring accurate and reliable readings.
• 圧力損失: Excellent internal structure design to avoid vortices and turbulence, minimizing pressure loss.
• Dial：360° rotating, making installation and reading convenient.
• Flow Rate Units: Cubic Meters (m³)
• Maximum Reading：9999999.999 m³/99999999.99 m³
• Minimum Scale: 0.001 m³/0.01 m³

オプション

• Sizes:
  • Nominal Diameter（DN）：DN15, DN20, DN25, DN32, DN40, DN50
  • Diameter（Inch）： 3/4″, 7/8”,1″, 1-1/4″, 1-1/2″, 2″, 2-1/4″
  • Length（mm）200mm, 225mm, 250mm, 300mm, 350mm, 450mm, 500mm
• Materials:
  • Cast Iron: GJS-500-7
• 接続する:
  • フランジ
• Accuracy Classes: R160/R200/R80
• Flow Rate Units: Cubic Meters (m³), Cubic Feet (ft³), Gallons (gal), Liters (L)
• Remote Communication:
  • LoRa
  • LoRaWAN
  • NB-IoT
  • GPRS
  • M-Bus
  • Electromagnetic Pulse
• チェックバルブ/ Non-return Valve: Optional. Control the direction of water flow and prevent backflow
• Surface Coating: Electrostatic painted water meter body with Plastic Coating, Nickel Plating
• Dial Lens 材料: High-strength Glass, Plastic
• Mechanism: Plastic Sealed Mechanism, Copper/Stainless Steel Sealed Mechanism
• Accessories: Various complementary accessories

Water Meter Working Conditions

• Operating Temperature:
  • Cold Water Meter: 30°C (86°F), 50°C (122°F)
  • Hot Water Meter: 90°C (194°F)
• Maximum Working Pressure (P): 16 bar (PN16) / 1.6 MPa
• 取り付け方向:Horizontal installation. Inclined or angle changes might reduce water meter’s accuracy.

規格準拠

• International Standard：ISO 4064 / OIML R49
• European standard：EN 14154 / MID 2004/22/EC / MID 2014/32/EU
• American Standard：NSF/ANSI 61 / NSF/ANSI 372 / ASTM F1390 / AWWA C700 / AWWA C701 / AWWA C705 / AWWA C706 / AWWA C708 / AWWA C712

タービン式ウォルトマン水道メーターの文字盤デザイン

• 文字盤のデザインはお客様のご要望に応じて作成可能です。
• 以下は、R200を使用したDN50 BMAGウォルトマン水道メーターの例です。

寸法

技術データ

最大権限エラー:

• Q1からQ2までは±5%である。
• Q2からQ4までは、T30の場合は±2%、T50の場合は±3%となります。
