165 mm Pirinç Çoklu Jet Su Sayacı TG15 | 360° Döndürme
165mm Brass Multi Jet Water Meter TG15. Produced in the versions for cold water (50°C) and hot water (90°C),it covers the size fromDN15 to DN50.
| Coating | Optional |
|---|---|
| Connect | BSP Thread, NPT Thread |
| Size | DN15-DN40 |
| Ratio | R80, R100, R160 |
| Unit Of Measure | Cubic feet, Cubic meter, Gallons, Litre |
| Material | Brass |
Product Details

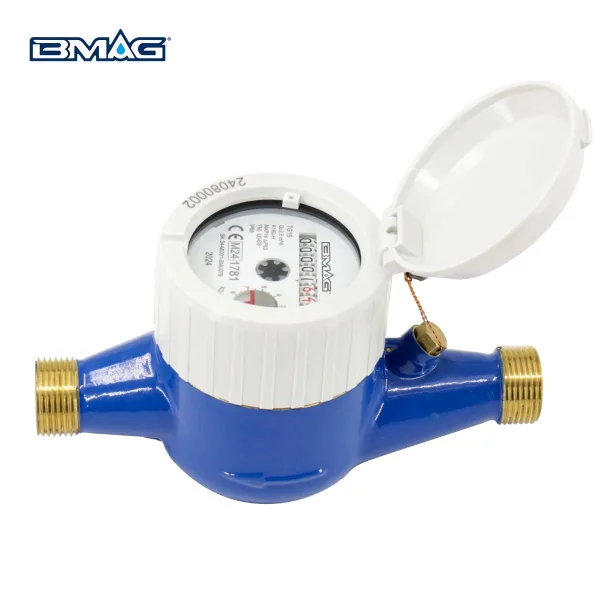

165mm Brass Multi Jet Water Meter | 360° Roating
Multi Jet Water Meter Feature
- Multi jet working principle assures a long service time
- Low pressure loss, high sensitivity at initial flow
- Special glass with high resistance to pressure and impact is available
- Electrostatic painted body made of corrosion resistant brass
- Protection against external magnetic fields
- Pulse output and AMR reading features are optional
- Non-return valve and filter available
- Suitablefor potable water, cold water up to 50°C
- Almost no maintenance
- Vacuumed mechanism
Multi Jet Water Meter Working Conditions
- Temperature: Available for cold water 0-50 ℃
- Pressure: ≤1.6MPa ( 16bars)
Dial Plate Design (DN20, R160)
Standards Compliance
- ISO4064:2014/OIML R49
- Directive 2014/32/EU on measuring instruments
- European Standard EN14154
Dimension
Technical Data
