3/4″ Multi Jet Water Meter MID Certification

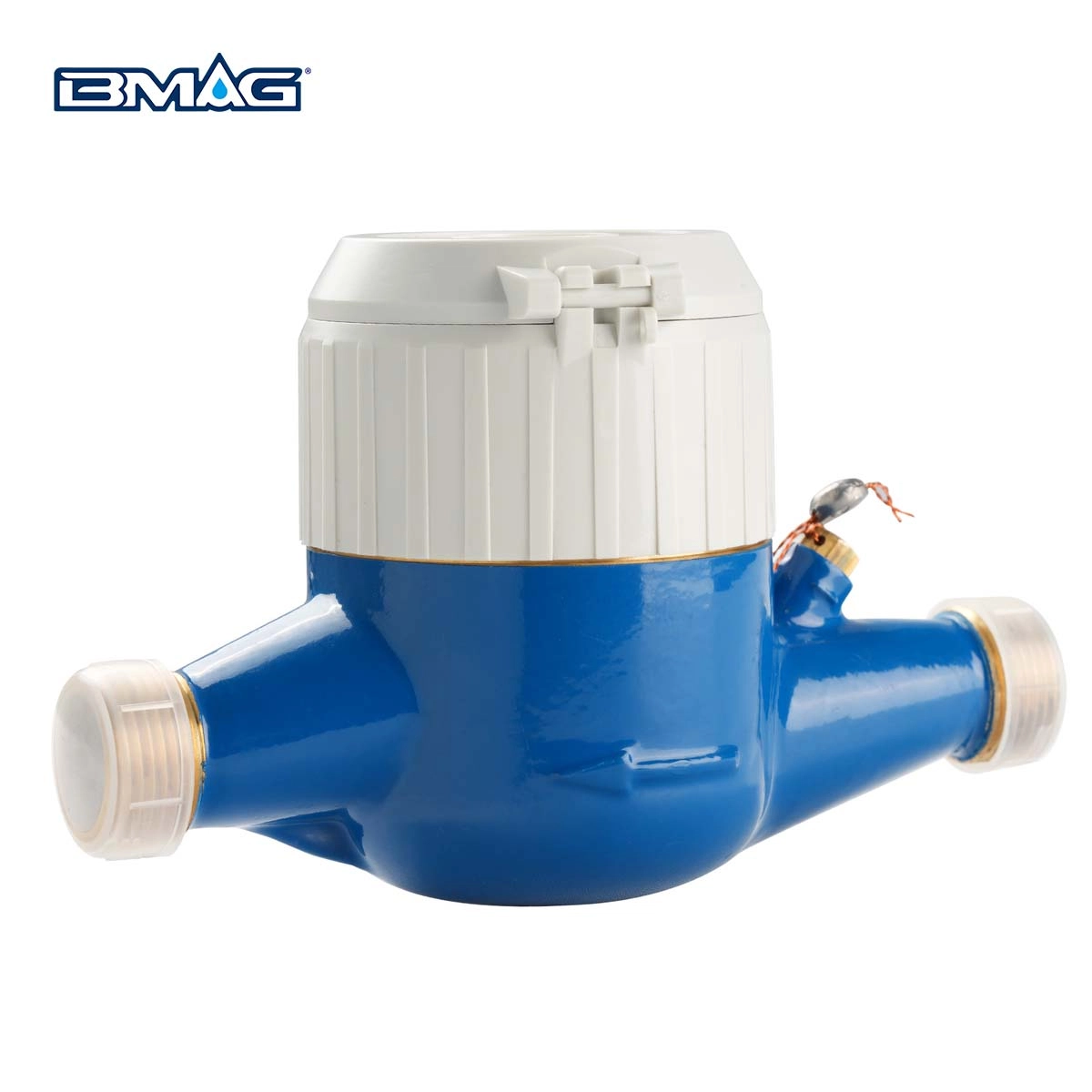

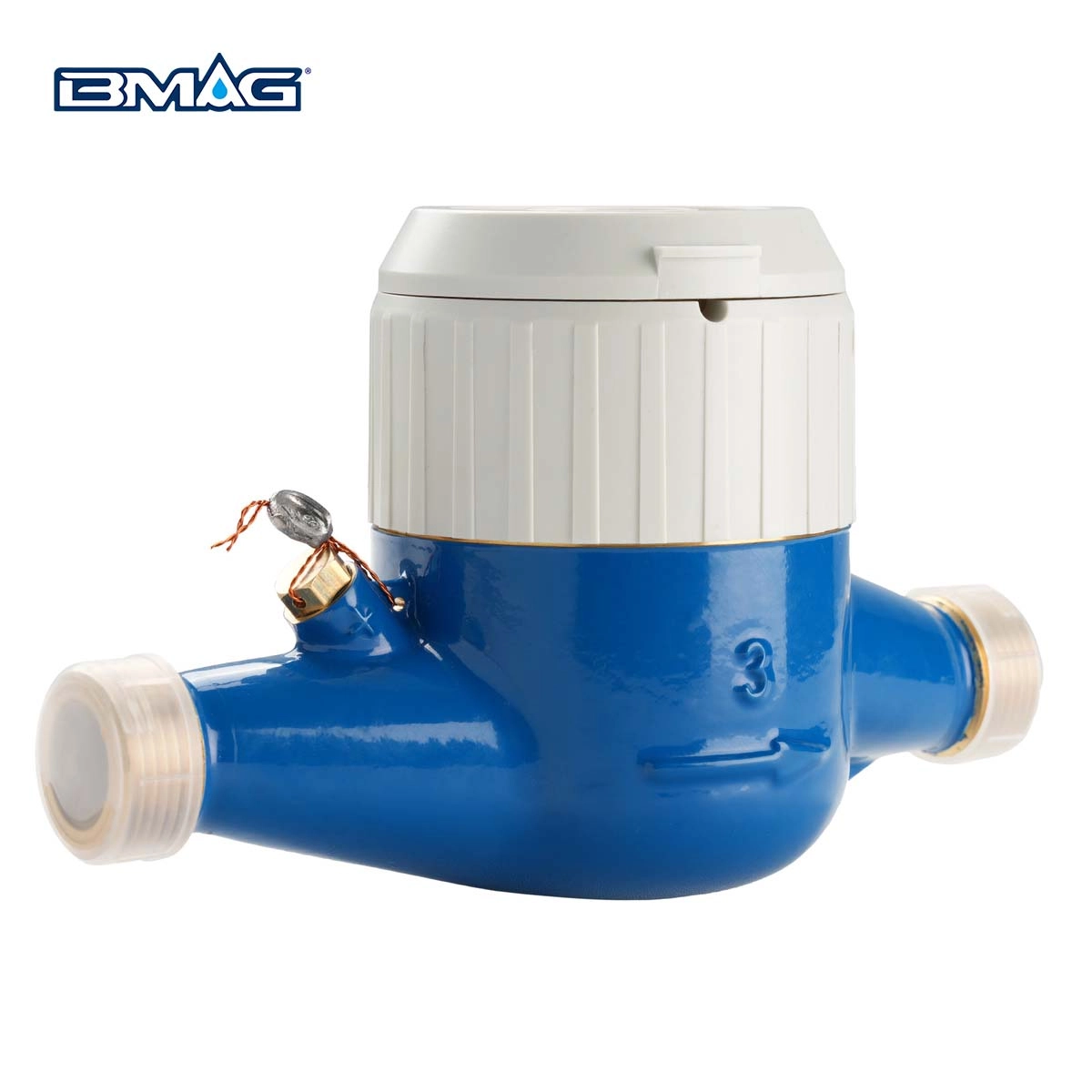

3/4″ Multi Jet Water Meter

A 3/4″ water meter, corresponding to a nominal diameter of 20mm (DN20), is a common size for various applications. It is frequently utilized in residential, commercial, and light industrial settings that require moderate flow rates. Its design ensures reliable performance and accurate measurement in environments demanding a consistent water supply.

3/4″ Multi Jet Water Meter Flow Rate

According to ISO 4064, for a 3/4″ water meter with an R160 accuracy class, typical flow rate parameters are as follows:

• 3/4″ water meter Minimum Flow Rate (Q1): 25 L/h

• 3/4″ water meter Transitional Flow Rate (Q2): 40 L/h

• 3/4″ water meter Permanent Flow Rate (Q3): 4.0 m³/h

• 3/4″ water meter Overload Flow Rate (Q4): 5.0 m³/h

3/4 Inch Multi Jet Water Meter Installation

The installation orientation of a 3/4 inch water meter significantly impacts its measurement accuracy, a factor dependent on the meter’s specific design. For horizontal-type water meters, optimal accuracy is achieved with horizontal installation. This accuracy is typically higher than if the same meter were installed vertically.

• 3/4″ Water Meter Horizontal Installation Accuracy: R160

• 3/4″ Water Meter Vertical Installation Accuracy:  R80

3/4 Inch Multi-Jet Water Meter with Fittings

The quality of water meter fittings plays an important role in maintaining water quality and ensuring a durable installation.
BMAG’s 3/4 inch water meters are supplied with high-quality brass fittings and incorporate a plastic check valve core. This integrated check valve core effectively prevents water backflow, which is crucial for protecting the water supply and ensuring the continued accuracy of the meter’s readings.

Feature

• High precision: R160-Horizontal
• High protection class: IP68
• Multi-jet working principle assures a long service time
• Low-pressure loss: Δ63
• Straight inlet or outlet needed: U0 D0
• Certification: MID
• A special glass with high resistance to pressure and impact is available
• Electrostatic painted body made of corrosion-resistant brass
• Protection against external magnetic fields
• Pulse output and AMR reading features are optional
• Non-return valve and filter available
• Suitable for potable water, cold water up to 50°C
• Almost no maintenance
• Vacuumed mechanism

3/4″ Multi Jet Water Meter Working Conditions

• Temperature: Available for cold water 0-50 ℃
• Pressure: ≤1.6MPa ( 16bars)

Dial Plate Design (DN15, R160)

Standards Compliance

• ISO4064:2014/OIML R49
• Directive 2014/32/EU on measuring instruments
• European Standard EN14154

Dimension

Technical Data
