Meter Air Jet Tunggal 165mm | R160

Meter Air Jet Tunggal 165mm | R160

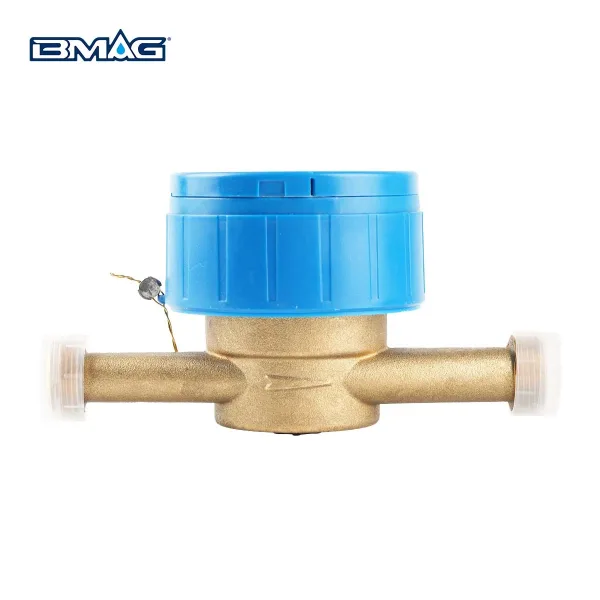

Brass Single Jet Water Meter 165mm Length, Measurement accuracy R160. I can confidently say that this product stands out in the market for its exceptional features and performance.

Key Features:

• IP68 Rating: This water meter is designed to meet the stringent IP68 standard, ensuring complete protection against dust and continuous immersion in water. It is an ideal choice for harsh environments where reliability is crucial.
• Bahan: Constructed from high-quality brass, the Brass single jet water meter is highly resistant to impact, corrosion, and high temperatures. It can operate stably at temperatures up to 90°C, making it suitable for a wide range of applications.
• Structure: The single jet design is simple and cost-effective, ensuring lower production costs without compromising on performance. This makes it an excellent option for both residential and commercial water meter use.
• Applications: Widely used in civil and indoor water meter applications, the BMAG water meter is versatile and adaptable to various environments.
• Ketepatan: With an impressive accuracy class of R160, this water meter ensures precise measurement and reliable data collection.
• Sealed Register: The water meter features a copper or stainless steel sealed register mechanism, providing robust and reliable performance. The sealed register ensures the internal components are protected from water ingress, achieving an IP68 waterproof rating.
• Anti-magnetic: Use a Non-Magnetic Sensor to prevent water theft.

Benefits:

• Ketahanan: The brass construction ensures long-lasting durability, even in challenging environments. Its resistance to corrosion and high temperatures makes it a reliable choice for long-term use.
• Cost-Effective: The simple structure of the single jet water meter reduces production costs, making it an economical choice for large-scale installations.
• Precision: The high R160 accuracy class ensures precise water measurement, which is critical for billing and resource management in both residential and commercial settings.
• Compliance: This water meter complies with international regulations, ensuring it meets the highest standards of accuracy and reliability.
• User-Friendly: The 360° rotating dial feature enhances the water meter by allowing the dial to rotate, making it easier to read in situations with poor viewing angles.

Brass Single Jet Water Meter Feature

• Single jet working principle assures a long service time
• Kehilangan tekanan rendah, kepekaan tinggi pada aliran awal
• Kaca khas dengan rintangan tinggi terhadap tekanan dan hentaman tersedia
• Electrostatic painted body made of corrosion resistant brass
• Perlindungan terhadap medan magnet luaran
• Pulseoutput and AMR reading features are optional
• Non-return valve and filter available
• Suitablefor potable water, cold water up to 50°C
• Almost no maintenance • Vacuumed mechanism

Working Conditions

• Suhu: Tersedia untuk air sejuk 0-50 ℃
• Tekanan: ≤1.6MPa (16 bar)

Reka Bentuk Plat Dail (DN15, R160)

Pematuhan Piawaian

• ISO4064:2014/OIML R49
• Arahan 2014/32/EU mengenai alat pengukur
• Piawaian Eropah EN14154

Data Teknikal

Max. Permission error

Head loss curve

Our 35,000 m² facility and 20+ years experience back our 10-year quality guarantee.

Berhubung dengan kami pasukan khidmat pelanggan untuk meminta sampel dan membincangkan dasar pesanan minimum fleksibel kami.
