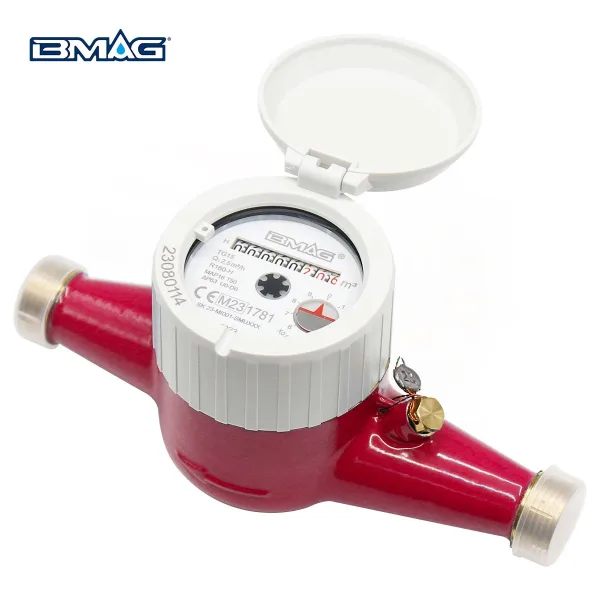

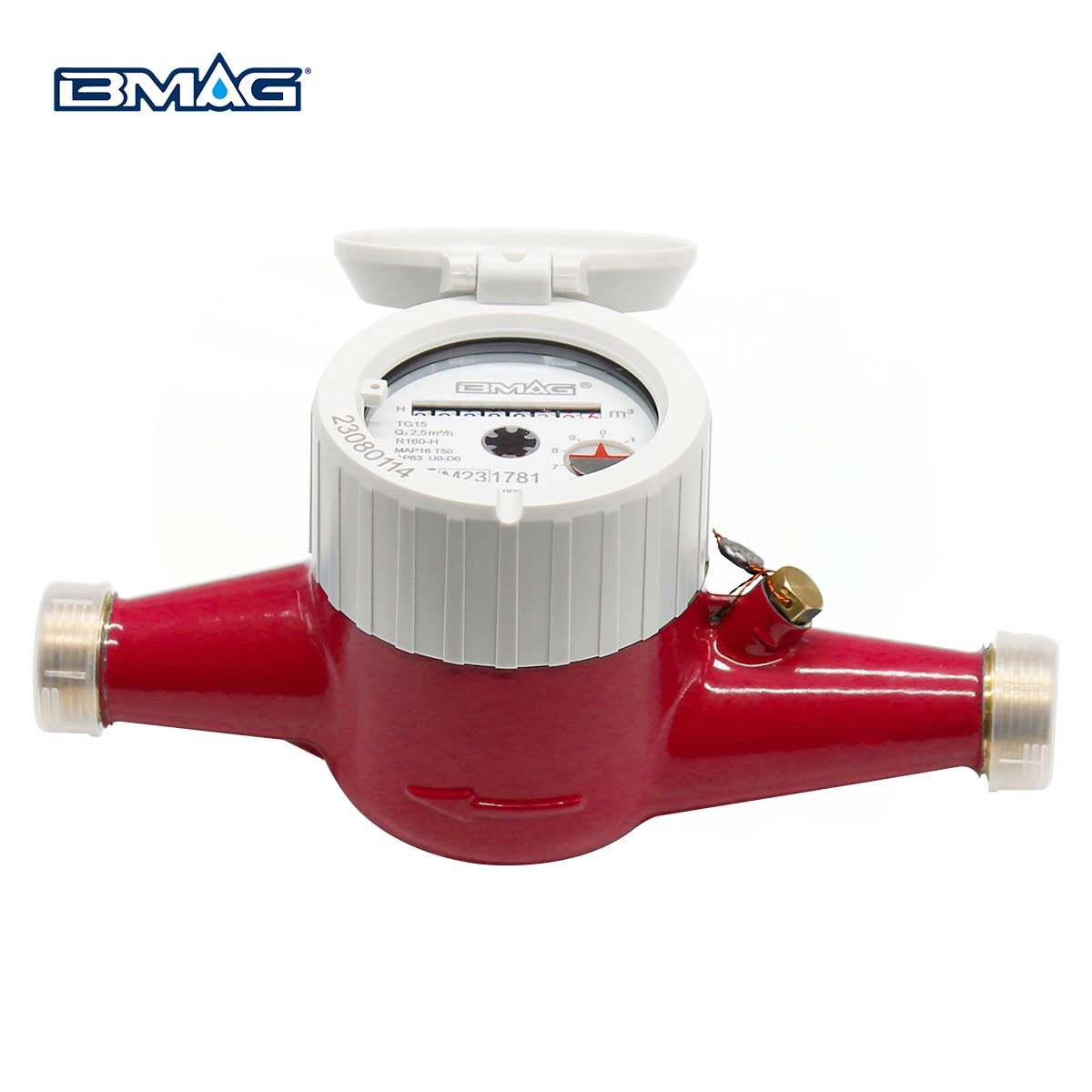

Brass Hot Water Meter | 360° Roating | R160 | Ip68
The maximum operating temperature of hot water meters can reach 90°C（194℉）. The internal sealing gaskets and impeller are made from high-temperature resistant materials, ensuring they do not age due to prolonged exposure to high temperatures and maintain stable measurement accuracy in hot water environments, making it the preferred choice for water meters.
| Coating | Optional |
|---|---|
| Connect | BSP Thread, NPT Thread |
| Size | DN15-DN40 |
| Ratio | R80, R100, R160 |
| Unit Of Measure | Cubic feet, Cubic meter, Gallons, Litre |
| Material | Brass |
Brass Hot Water Meter | 360° Roating | R160 | Ip68
The maximum operating temperature of hot water meters can reach 90°C（194℉）. The internal sealing gaskets are made from high-temperature resistant materials, ensuring they do not age due to prolonged exposure to high temperatures. The impeller material is also carefully selected to maintain stable measurement accuracy in hot water environments. It can also be used in cold water environments.
Hot Water Meter Feature
- The multi-jet working principle assures a long service time
- Low-pressure loss, high sensitivity at initial flow
- Special glass with high resistance to pressure and impact is available
- Electrostatic painted body made of corrosion-resistant brass
- Protection against external magnetic fields
- Pulse output and AMR reading features are optional
- Non-return valve and filter available
- Suitable for potable water, hot water up to 90°C（194℉）
- Almost no maintenance
- Vacuumed mechanism
Brass Hot Water Meter Working Conditions
- Temperature: Available for hot water 0-90 ℃
- Pressure: ≤1.6MPa ( 16bars)
Dial Plate Design (DN20, R160)
Standards Compliance
- ISO4064:2014/OIML R49
- Directive 2014/32/EU on measuring instruments
- European Standard EN14154
Dimension
Technical Data
