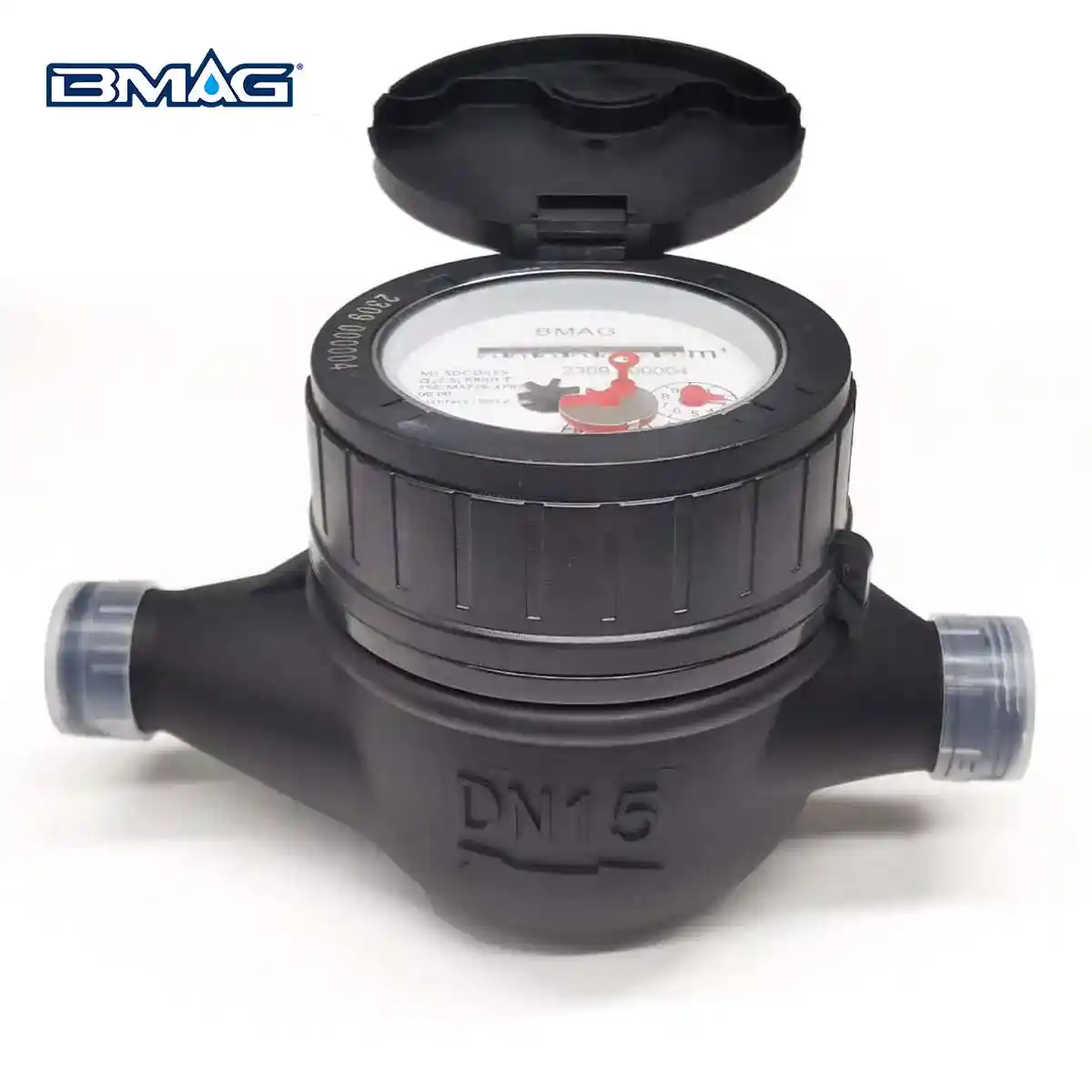

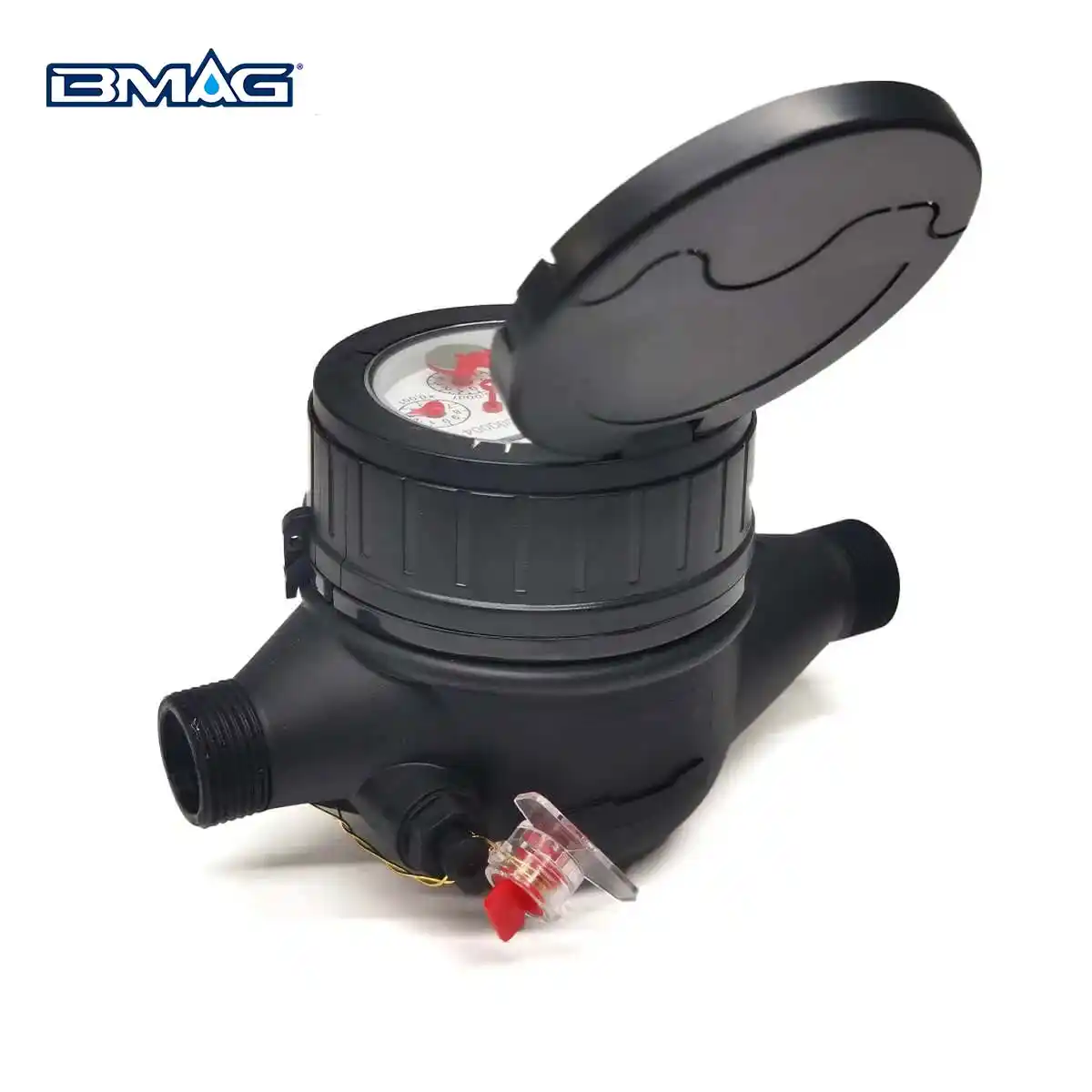

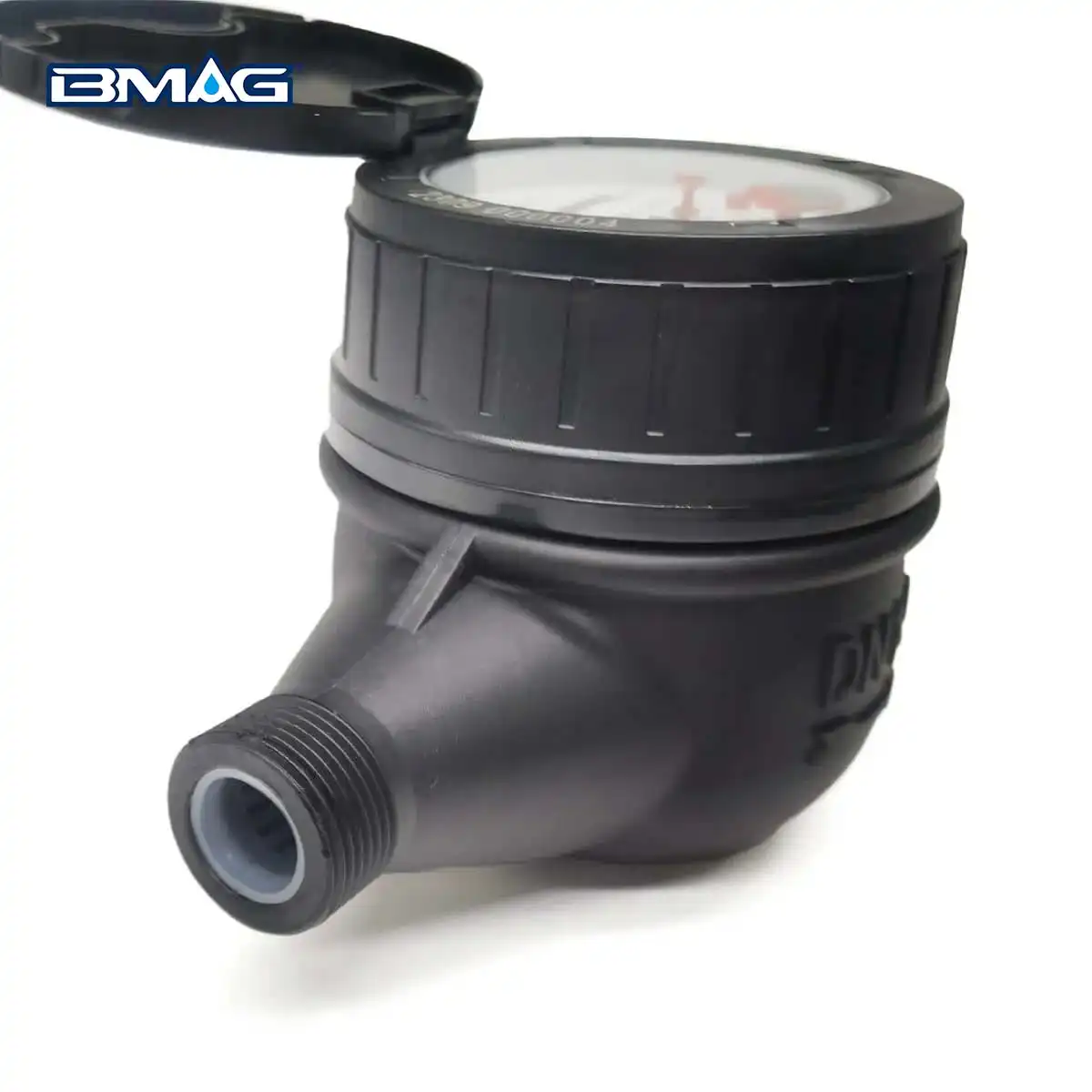

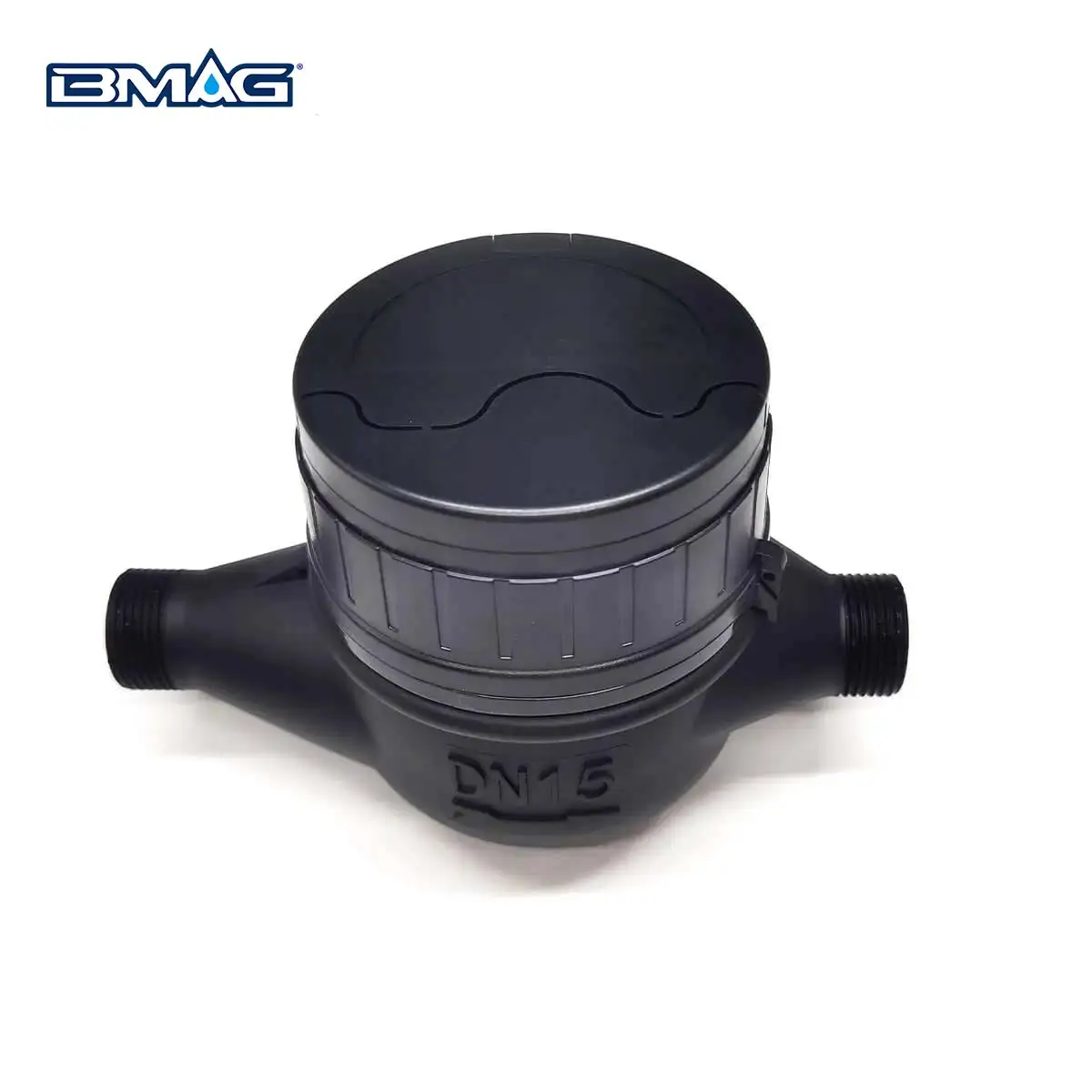

BMAG MJ-SDC-G Plastic Multi Jet R80 Water Meter

BMAG MJ-SDC-G Plastic Multi jet R80 Water Meter

BMAG Multi Jet R80 Water Meter is a cutting-edge solution designed for efficient water measurement in various applications. Crafted from high-quality brass, this cold water meter is engineered to meet the stringent OIML R49 and ISO 4064 standards and MID certification, ensuring reliability and accuracy in water flow measurement.

The BMAG Multi Jet Water Meter is a velocity type, featuring a multi-jet design that enhances measurement precision. It boasts an accuracy class of R80, ensuring the meter delivers exceptionally precise readings across a wide range of flow rates. This level of accuracy makes it an excellent choice for applications where precise water measurement is critical. It is also equipped with a hermetically sealed extra-dry dial metric counter, which prevents moisture ingress and ensures longevity, making it ideal for residential and commercial use. The overall length of the meter between connector faces adheres to the latest ISO 4064-1 specifications, guaranteeing compatibility and ease of installation.

Advantages

High Precision: The multi-jet mechanism allows for accurate measurement of water flow, making it an excellent choice for applications requiring high reliability.
Durable Construction: Constructed from robust brass, the BMAG water meter is designed to withstand harsh conditions, ensuring a long service life.
Temperature Resilience: This water velocity meter is compatible with external environments and can operate effectively at temperatures up to 50°C, making it suitable for various climates.
In addition to its primary features, the BMAG Multi Jet Water Meter offers significant advantages in pricing, providing a competitive edge in the market without compromising on quality. With its exceptional performance and durability, this water meter is an ideal investment for businesses seeking reliable water measurement solutions.

Specifications

• Plastic Material: GV-5H, PA66+GF30, ABS, compliant with ISO 4064, NSF/ANSI 61, AWWA 701 standards for plastic water meters, suitable for potable water.
• Dial Lens Material: High-Strength Glass – Fog-resistant, easy to read, UV-resistant.
• Dry Type Water Meter: The counter does not come into contact with water, leading to a longer service life and no fogging issues.
• Accuracy: R80, ensuring precise meter readings.
• Waterproof Seal: Copper-sealed mechanism achieving IP68 level dust and water resistance for enhanced durability.
• Low Flow Indicator: High Sensitivity, suitable for detecting minimal leaks.
• Anti-Magnetic Water Meter: Equipped with internal anti-magnetic rings to prevent magnetic interference and cheating, ensuring accurate and reliable readings.
• Pressure Loss: Excellent internal structure design to avoid vortices and turbulence, minimizing pressure loss.
• Dial：360° rotating, making installation and reading convenient.
• Flow Rate Units: Cubic Meters (m³)
• Maximum Reading：99999.9999 m³
• Minimum Scale: 0.0001 m³
• Accuracy Classes: Class B

Optional Features

• Sizes:
  • Nominal Diameter（DN）：DN15, DN20, DN25, DN32, DN40, DN50
  • Diameter（Inch）： 1/2″,3/4″,1″, 1-1/4″, 1-1/2″, 2″
  • Length without coupler（mm）：165mm, 190mm, 260mm, 300mm
• Materials:
  • Brass: Lead Free Brass 87850
  • Bronze: Lead Free Bronze (C89833)
  • Cast Iron: GJS-500-7
  • Plastic: GV-5H, PA66+GF30 (Nylon 66 reinforced with 30% glass fiber), ABS
  • Stainless Steel: EU EN 1.4301 (304 Stainless Steel)
• Threads:
  • British Standard Pipe (BSP)
  • American Standard Threads (ANSI B1.20.1, NPT)
  • ISO 228
• Accuracy Classes: Class A, Class B, Class C
• Flow Rate Units: Cubic Meters (m³), Cubic Feet (ft³), Gallons (gal), Liters (L)
• Remote Communication:
  • LoRa
  • LoRaWAN
  • NB-IoT
  • GPRS
  • M-Bus
  • Electromagnetic Pulse
• Check Valve/ Non-return Valve: Optional. Control the direction of water flow and prevent backflow.
• Surface Coating: Electrostatic painted water meter body with Plastic Coating, Nickel Plating
• Dial Lens Material: High-strength Glass, Plastic
• Mechanism: Plastic Sealed Mechanism, Copper/Stainless Steel Sealed Mechanism
• Accessories: Various complementary accessories

Water Meter Working Conditions

• Operating Temperature:
  • Cold Water Meter: 30°C (86°F), 50°C (122°F)
  • Hot Water Meter: 90°C (194°F)
• Maximum Working Pressure (P): 16 bar (PN16) / 1.6 MPa
• Mounting direction: Horizontal installation. Inclined or angle changes might reduce the water meter’s accuracy.

Dial Plate Design (DN15, R80)

Standards Compliance

• ISO4064:2014/OIML R49
• Directive 2014/32/EU on measuring instruments
• European Standard EN14154

Dimension

Technical Data
