Gietijzeren watermeter R160
Cast Iron Multi Jet Water Meter: More cost-effective than brass meters. Multi-jet structure guarantees stable measurement and long service life, with low pressure loss and high sensitivity for accurate small-flow reading. It adopts high-strength cast iron body with optional anti-corrosion coating, anti-magnetic interference protection, and supports optional pulse output, AMR, non-return valve and filter.
| Coating | Optioneel |
|---|---|
| Verbinden | BSP-schroefdraad, NPT-schroefdraad |
| Maat | DN15-DN50 |
| Verhouding | R80, R100, R160 |
| Eenheid van maat | Kubieke voet, Kubieke meter, Gallons, Liter |
| Materiaal | Cast Iron |
Productdetails

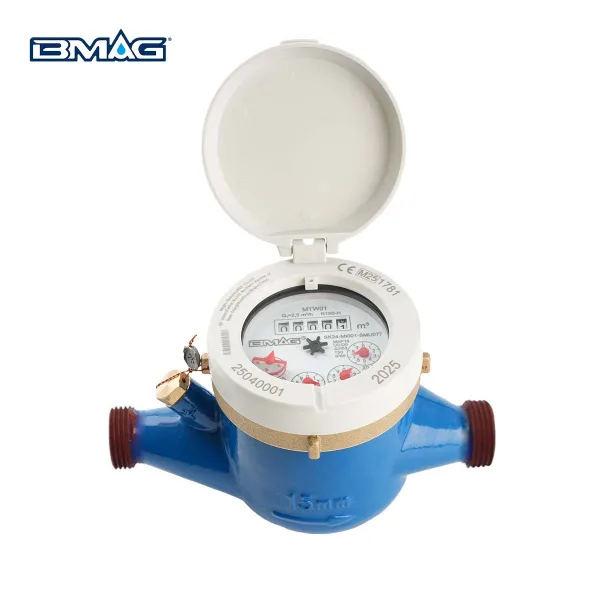

Cast Iron Water Meter R160 IP68
Cast Iron Water Meter Feature
- More cost-effective than brass water meters
- Multi jet working principle ensures stable measurement and long service life
- Low pressure loss, high sensitivity at initial flow for accurate small-flow measurement
- High-strength cast iron body (grey cast iron/ductile iron) with excellent pressure and impact resistance
- Effective protection against external magnetic fields to avoid measurement interference
- Pulse output and AMR remote reading features are optional for convenient data collection
- Non-return valve and filter available to prevent backflow and impurity blocking
- Suitable for non-potable water, cold water up to 50°C (hot water type up to 90°C optional)
- Cost-effective design, suitable for civil and small commercial water metering
- Threaded connection (BSP/NPT standard) for easy installation
Cast Iron Water Meter Working Conditions
- Temperatuur: Geschikt voor koud water van 0-50 ℃
- Druk: ≤1,6 MPa (16 bar)

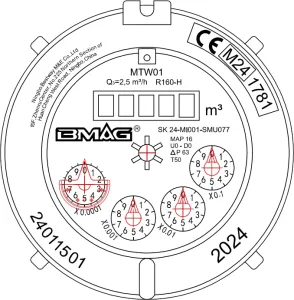

Cast Iron Dial Plate Design (R160)
Naleving van normen
- ISO4064:2014/OIML R49
- Richtlijn 2014/32/EU betreffende meetinstrumenten
- Europese norm EN14154
Dimensie
Technische gegevens
Ons 35.000 m² faciliteit en 20+ jaar ervaar het terug 10 jaar kwaliteitsgarantie.
Neem contact op met onze klantenserviceteam om monsters aan te vragen en onze flexibele minimale bestelhoeveelheid te bespreken.
